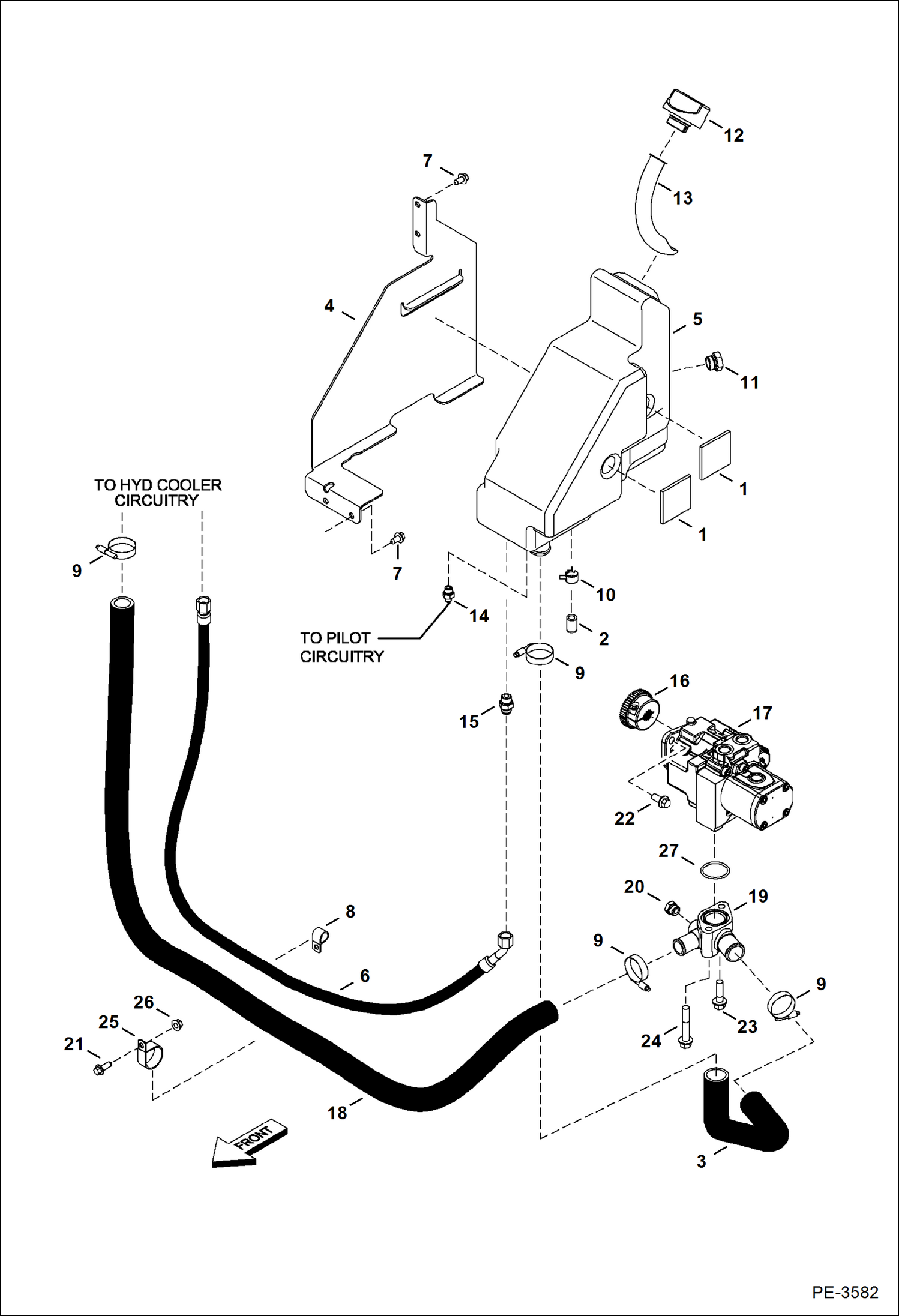

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Tank & Pump) HYDRAULIC SYSTEM

1

6578278

PAD

2

6680398

CAP

3

6808526

HOSE

4

6809409

BRACKET

5

6813965

TANK

6

7125142

HOSE

7

26GM10020

BOLT

8

30H65

CLIP

9

42HC200

CLAMP

10

5HM20

CLAMP

11

6665915

GAUGE

12

6692836

CAP, HYDRAULIC TANK

13

7134222

SCREEN

14

15KB0406

FTG HYD S CONNECTOR

14

79K6

O RING 10

15

15KB0808

FITTING, HYD CONNECTOR

15

79K8

O RING 10

16

6676535

COUPLER

17

6698074

PUMP, HYD PISTON See Illustration PISTON PUMP ASSY/ MS2216

18

HOSE Order 6673825 bulk 70''

19

7125950

MANIFOLD

20

24K6

FITTING plug

20

79K8

O RING 10

21

26GM10030

BOLT

22

29CM1225

BOLT

23

29CM1235

BOLT

24

29CM1270

BOLT

25

30H85

CLAMP

26

43DM10

NUT

27

58K225

O RING 10
