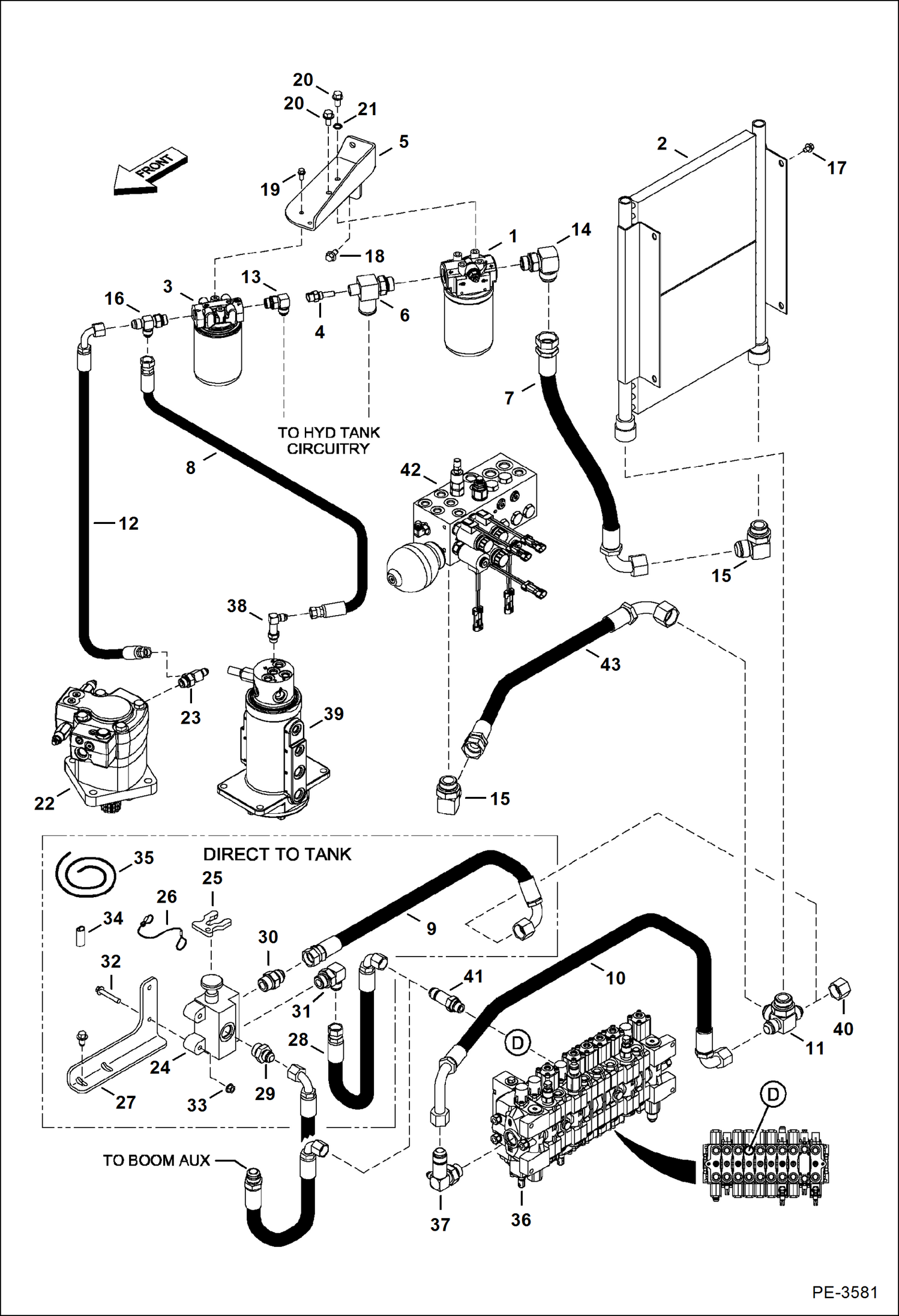

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Cooler/Filter & Direct to Tank Option) HYDRAULIC SYSTEM

1

6661247

FILTER

1

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

1

6660260

SWITCH hydraulic pressure

2

6676168

COOLER

3

6686217

FILTER ASSY

3

6516722

FILTER

4

6718417

SENDER

5

6808594

MOUNT

6

6809113

ELBOW

6

79K12

O RING 10

7

6809944

HOSE

8

6809946

HOSE

9

6809947

HOSE

10

6811167

HOSE

11

6812825

FITTING

11

79K16

O RING 10

12

6817821

HOSE

13

17KB0808

FITTING, HYD ELBOW

13

79K8

O RING 10

14

17KB1612

FITTING, HYD ELBOW

14

79K12

O RING 10

15

17KB1616

FITTING, HYD ELBOW

15

79K16

O RING 10

16

21KB0808

FTG HYD STRAIGHT TEE

16

79K8

O RING 10

17

26GM8013

BOLT

18

26GM10020

BOLT

19

35C410

BOLT 5

20

35C612

BOLT

21

6E6

WASHER

22

7001953

MOTOR, SLEW See Illustration SWING MOTOR/ MS1847 - Was 6687116 - A

23

21KB0608

FTG Hyd Straight Tee

23

79K8

O RING 10

24

6660267

VALVE See Illustration SELECTOR VALVE/ B13660 for direct to tank option

25

6808717

CLIP

26

WIRE ROPE NLA - 14'' (355 mm) long - Order Ref. 34 & 35

27

6809087

BRACKET

28

6809990

HOSE

29

15KB1012

FITTING, HYD CONNECTOR

29

79K12

O RING 10

30

15KB1212

FITTING, HYD CONNECTOR

30

79K12

O RING 10

31

17KB1012

FITTING, HYD ELBOW

31

79K12

O RING 10

32

53CM855

SCREW Was 29CM850 - A

33

43DM8

NUT

34

6558310

SLEEVE

35

6558309

WIRE ROPE bulk - sold per foot

36

6684726

VALVE See Illustration CONTROL VALVE/ MS2623

37

6811168

TEE

37

79K12

O RING 10

38

6812815

FITTING

38

79K6

O RING 10

39

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057

40

36K8

CAP for machines W/O direct to tank option

41

16KB1008

FITTING, HYD ELBOW

41

79K8

O RING 10

42

6685164

MANIFOLD See Illustration MANIFOLD ASSY/ MS2374

43

6810219

HOSE
