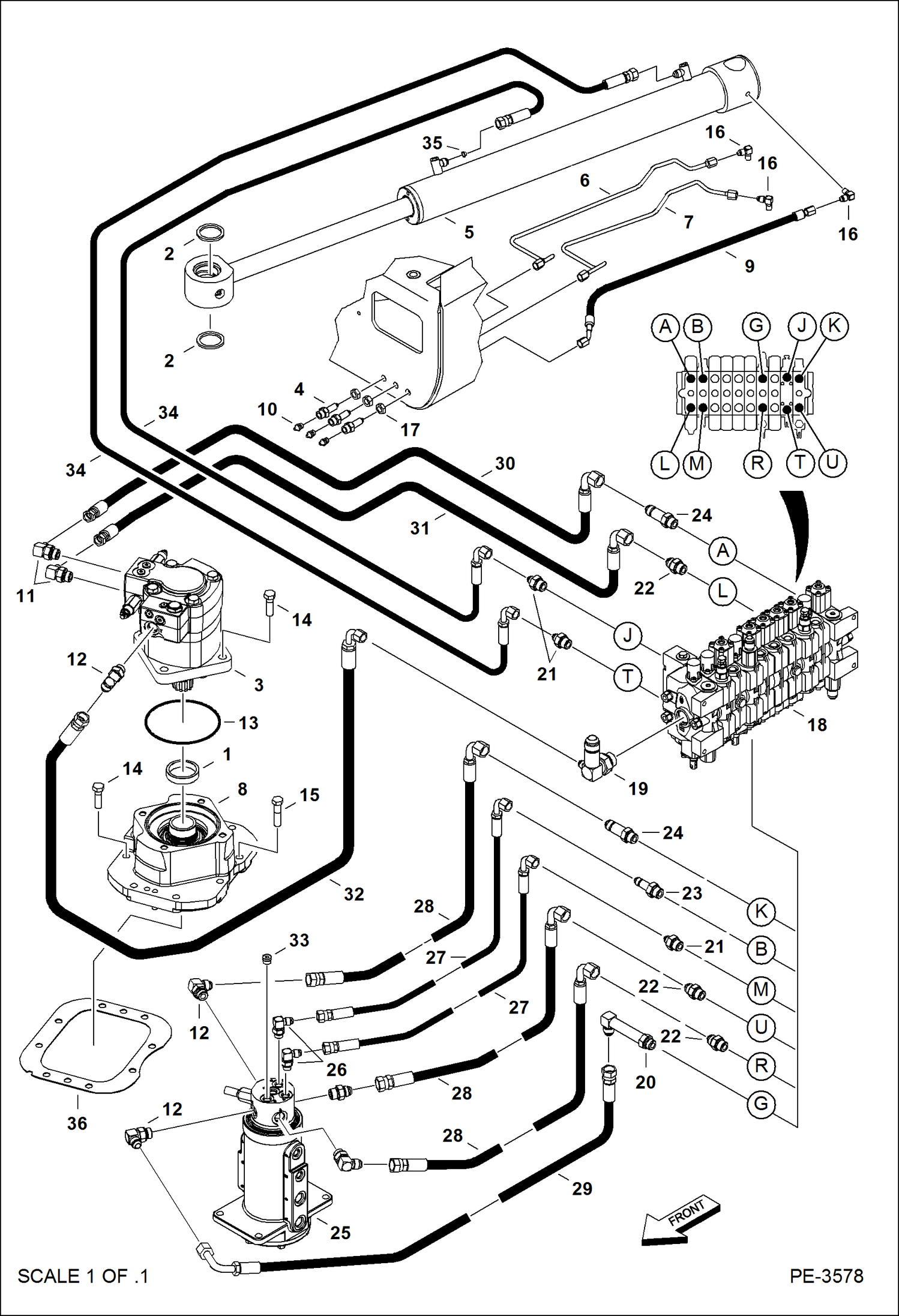

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

6513681

BEARING

2

6660075

SEAL

3

7001953

MOTOR, SLEW See Illustration SWING MOTOR/ MS1847 - Was 6687116 - A

4

6807184

FITTING

5

CYLINDER See Illustration SWING CYLINDER/ PE3419

6

7102801

TUBE

7

7102802

TUBE

8

7105323

CARRIER, MOTOR See Illustration MOTOR CARRIER/ PE2446

9

7106607

HOSE

10

10H25

FITTING, GREASE 5

11

17KB0608

FITTING, HYD ELBOW

11

79K8

O RING 10

12

17KB0808

FITTING, HYD ELBOW

12

79K8

O RING 10

13

25K30508

O-RING, 10

14

55CM1240

SCREW

15

55CM1250

SCREW

16

83F3

ELBOW 5

17

86F3

LOCKNUT

18

6684726

VALVE See Illustration CONTROL VALVE/ MS2623

19

6811168

TEE

19

79K12

O RING 10

20

6812821

ELBOW

20

79K8

O RING 10

21

15KB0608

FITTING, HYD CONNECTOR

21

79K8

O RING 10

22

15KB0808

FITTING, HYD CONNECTOR

22

79K8

O RING 10

23

16KB0608

FITTING, HYD CONNECTOR

23

79K8

O RING 10

24

16KB0808

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057

26

17KB0606

FITTING

26

79K6

O RING 10

27

6808696

HOSE

28

6808697

HOSE

29

6808698

HOSE

30

6817819

HOSE

30

HOSE, HYD ASSY See Illustration EUROPEAN ACCESSORIES/ NA2140 - for Europe slew lock option

31

6817820

HOSE

31

HOSE, HYD ASSY See Illustration EUROPEAN ACCESSORIES/ NA2140 - for Europe slew lock option

32

7156571

HOSE, HYD ASSY

33

24K5

PLUG

33

79K6

O RING 10

34

6808695

HOSE

35

6532775

ORIFICE Was 6593801 - B

36

7203898

SHIM 1,68 mm thick

36

7203899

SHIM 3,30 mm thick
