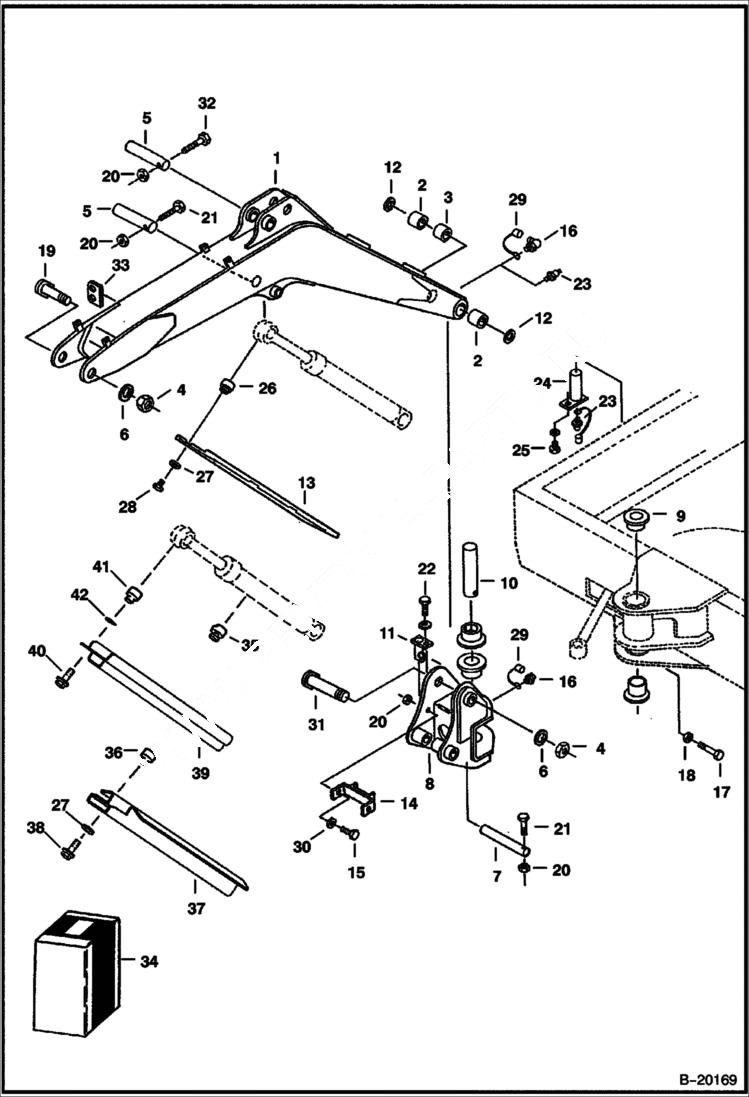

Запчасти Bobcat 325 SWING BRACKET & BOOM WORK EQUIPMENT

1

6587229

BOOM Also order Refs. 2 & 3

2

6539824

BUSHING

3

6534075

SPACER Not Used On Later Models

4

39DM30

NUT

5

6534165

PIN

6

1EM300

WASHER

7

6534164

PIN

8

6587332

BRACKET Swing

9

6539827

BUSHING

10

6534167

PIN

11

6534177

PIN

12

6535312

WASHER

13

6538353

SHIELD Cylinder

14

6535386

CLAMP

15

1CM1045

BOLT

16

12H15

FITTING, GREASE 5 See Service Letter Dated Sept. 2, 94

17

1CM1690

BOLT

18

39DM16

NUT Was 49DM-16 - D

19

6587225

PIN Arm Mounting

20

49DM10

NUT

21

1CM1070

BOLT Was 1CM01065B

22

1CM1220

BOLT

23

10H25

FITTING, GREASE 5

24

6596503

PIN Was 6535633 - A

25

1CM1225

BOLT

26

6537556

SPACER

27

17EM120

WASHER Was 17EM00100B

28

1CM1235

BOLT

29

6652943

COVER grease fitting

30

6EM100

WASHER

31

6587227

PIN Boom Mounting

32

1CM1075

BOLT

33

6589353

PLATE Welded on the Boom

34

6800328

KIT Boom cylinder Guard - W/Refs. 35-38 - See Service Letter Dated

35

6628788

GUIDE Boom Cylinder - Weld on

36

6800137

SPACER for Use W/Ref.37 (NLA/6596469 shield)

37

SHIELD NLA - Order 7130859 shield - also order Ref. 40-42 - Was 6596469 - A

38

29CM1235

BOLT for Use W/Ref.37 (NLA/6596469 shield) - Use Loctite #242 on the Bolt Threads - Was 59CM01235B - A

39

7130859

SHIELD W/A

40

7131273

SCREW for Use W/Ref. 39

41

7131109

SPACER for Use W/Ref. 39

42

6536803

WASHER spring washer - for Use W/Ref 39
