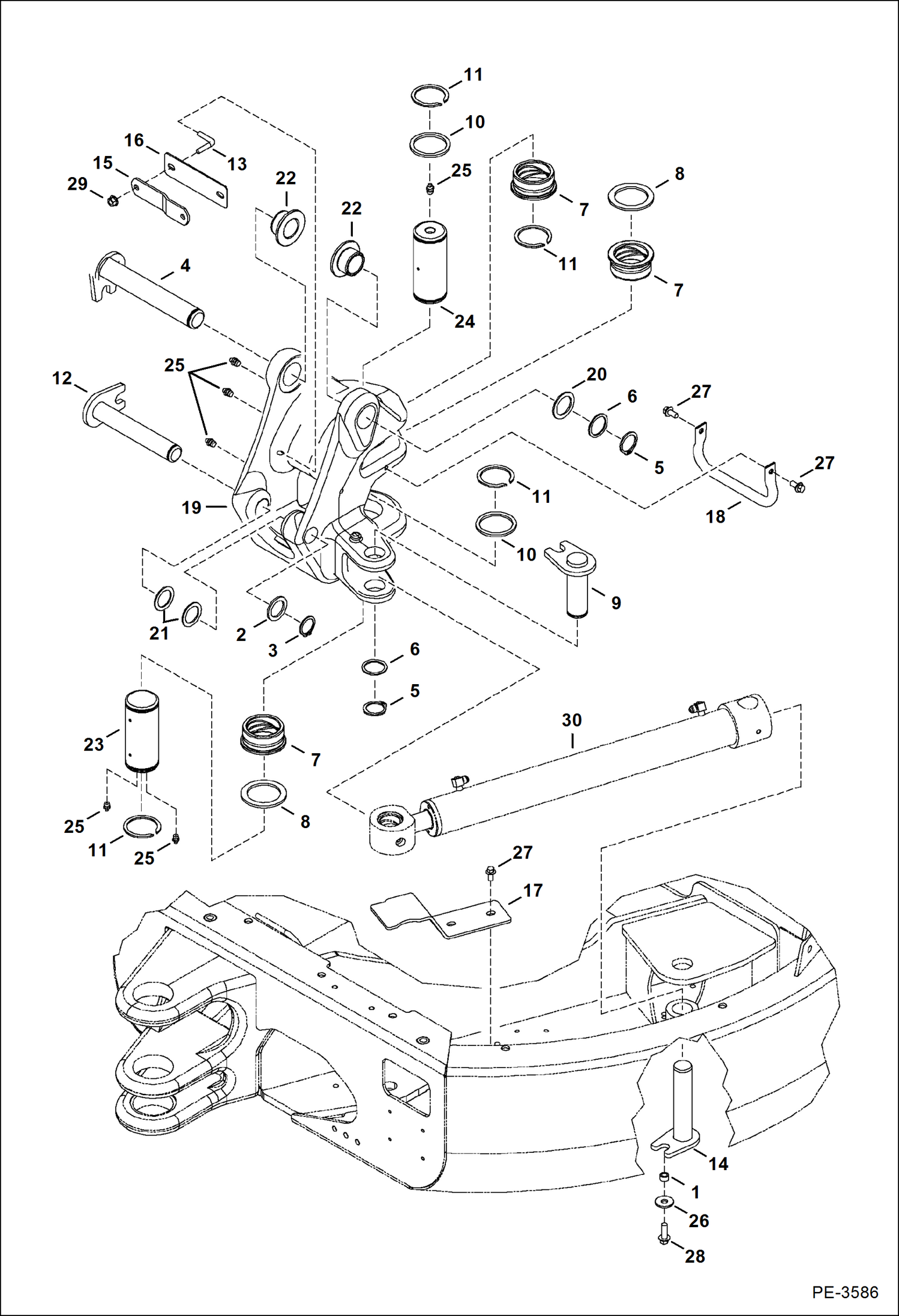

Запчасти Bobcat 325 SWING FRAME WORK EQUIPMENT

1

6503451

SPACER

2

6534111

WASHER

3

6534154

RING

4

6589323

PIN

5

6665618

RING

6

6666549

WASHER

7

6807956

BUSHING

8

6807962

WASHER

9

6807964

PIN

10

6808174

WASHER

11

6808175

RING

12

6808203

PIN

13

6808211

BOLT angle

14

6808267

PIN

15

6808600

BRACKET

16

6808751

SHIELD

17

6808984

BRACKET

18

6809796

SUPPORT tub

19

6810691

FRAME

20

6810704

SNAP RING

21

6811636

SPACER Use as required

22

6815278

BUSHING, PRESS FIT

23

7135321

PIN

24

7135322

PIN

25

10H25

FITTING, GREASE 5

26

17EM120

WASHER

27

29CM1020

BOLT

28

29CM1235

BOLT

29

51DM10

NUT

30

CYLINDER See Illustration SWING CYLINDER/ PE3419
