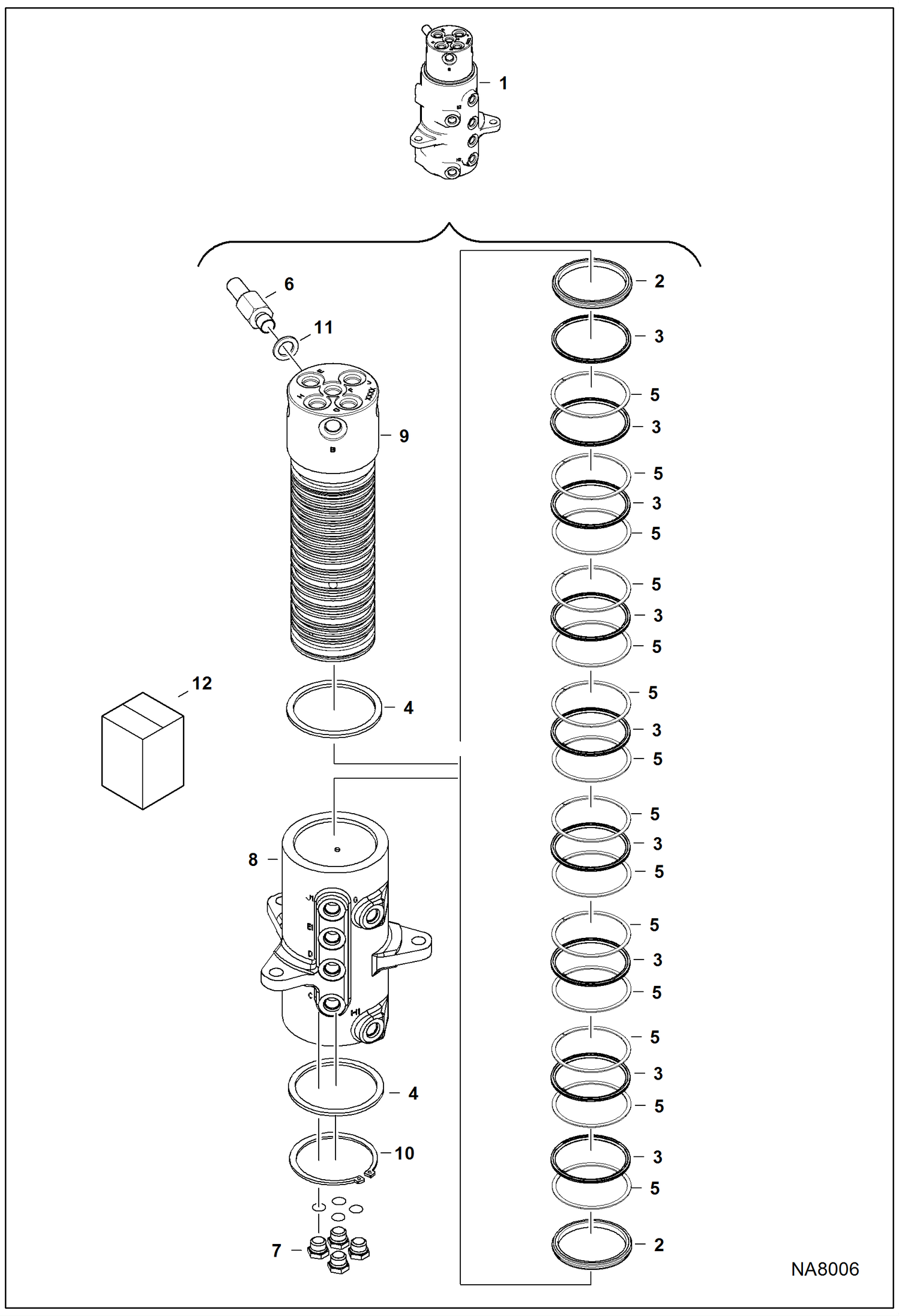

Запчасти Bobcat 324 SWIVEL JOINT (AKY522001 & Above) HYDRAULIC SYSTEM

1

7199077

SWIVEL ASSY Ref. 2-10 - Also Order Ref. 11

2

7225616

SEAL Was 6686864 - A

3

6686865

SEAL

4

6686867

WASHER

5

6686925

RING

6

6810029

STOP

7

6812171

PLUG

8

7198570

BAREL MACH

9

7198572

SPOOL SWIVEL JOINT

10

21J44

RING, SNAP

11

15EM140

WASHER
