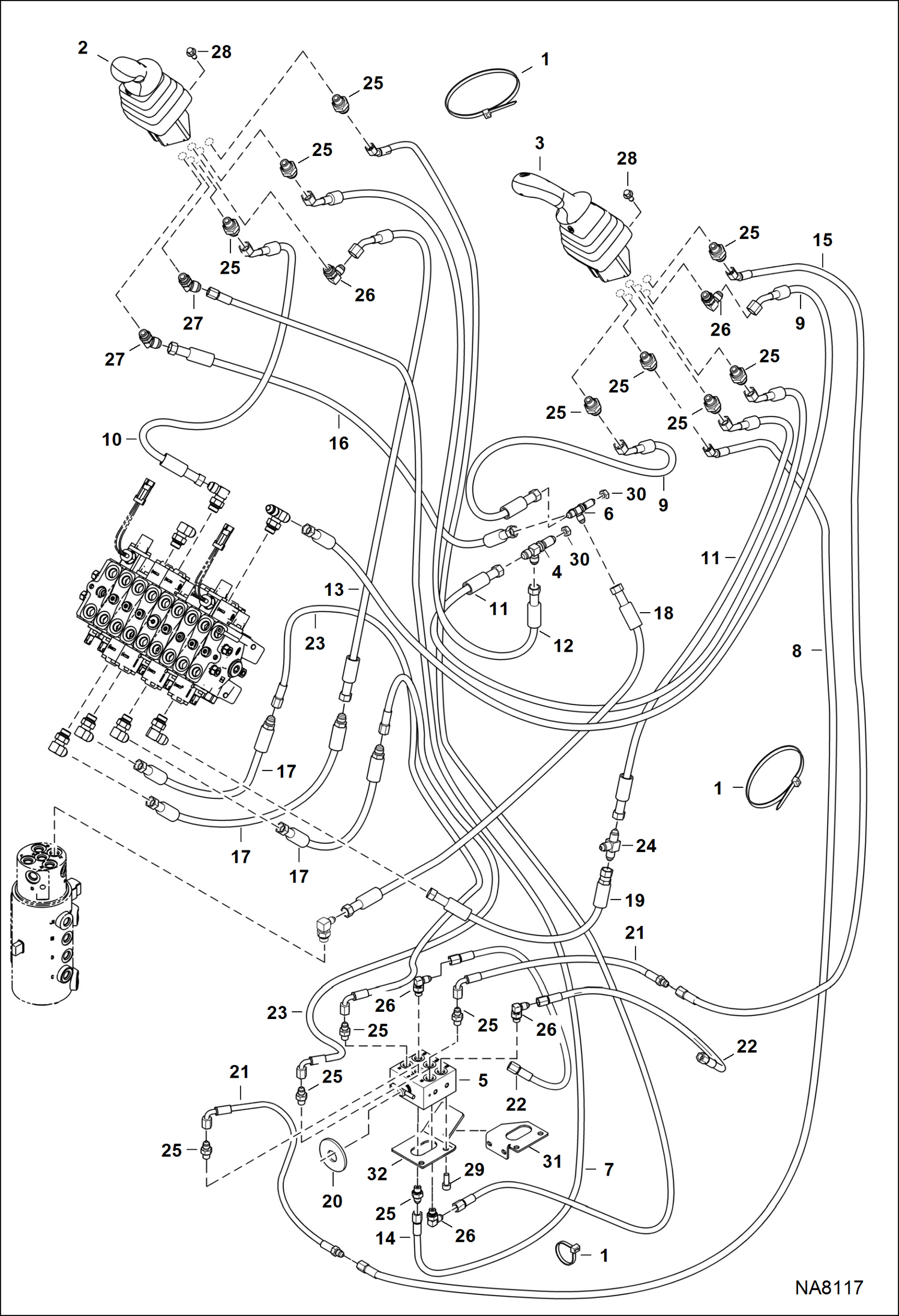

Запчасти Bobcat 324 HYDRAULIC CIRCUITRY (Pilot) AKY522622 & Above HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

7220730

JOYSTICK, RH See Illustration RH JOYSTICK CONTROLS/ NA8062

3

7220731

JOYSTICK, LH See Illustration LH JOYSTICK CONTROLS/ NA8063

4

91K3

TEE

5

7193055

VALVE, JPS Was 7008308 - A

6

7109286

FTG HYD BLKHD

7

7175429

HOSE ASSEMBLY

8

7175430

HOSE ASSEMBLY

9

7175431

HOSE ASSEMBLY

10

7175432

HOSE ASSEMBLY

11

7175433

HOSE ASSEMBLY

12

7175434

HOSE ASSEMBLY

13

7175435

HOSE ASSEMBLY

14

7175436

HOSE ASSEMBLY

15

7175437

HOSE ASSEMBLY

16

7175438

HOSE ASSEMBLY

17

7175439

HOSE ASSEMBLY

18

7175440

HOSE ASSEMBLY

19

7175449

HOSE ASSEMBLY

20

7192813

SEAL

21

7189763

HOSE ASSY

22

7189764

HOSE ASSY

23

7189948

HOSE ASSY

24

10K3

TEE

25

15KB0404

FTG HYD S Connector

25

79K4

O RING 10

26

17KB0404

FTG HYD ELBOW 90

26

79K4

O RING 10

27

18KB0404

FTG HYD ELBOW 45

27

79K4

O RING 10

28

26GM8020

SCREW

29

3GM820

SCREW

30

86F3

LOCKNUT

31

7189390

MOUNT VALVE JPS

32

7191056

BRACKET
