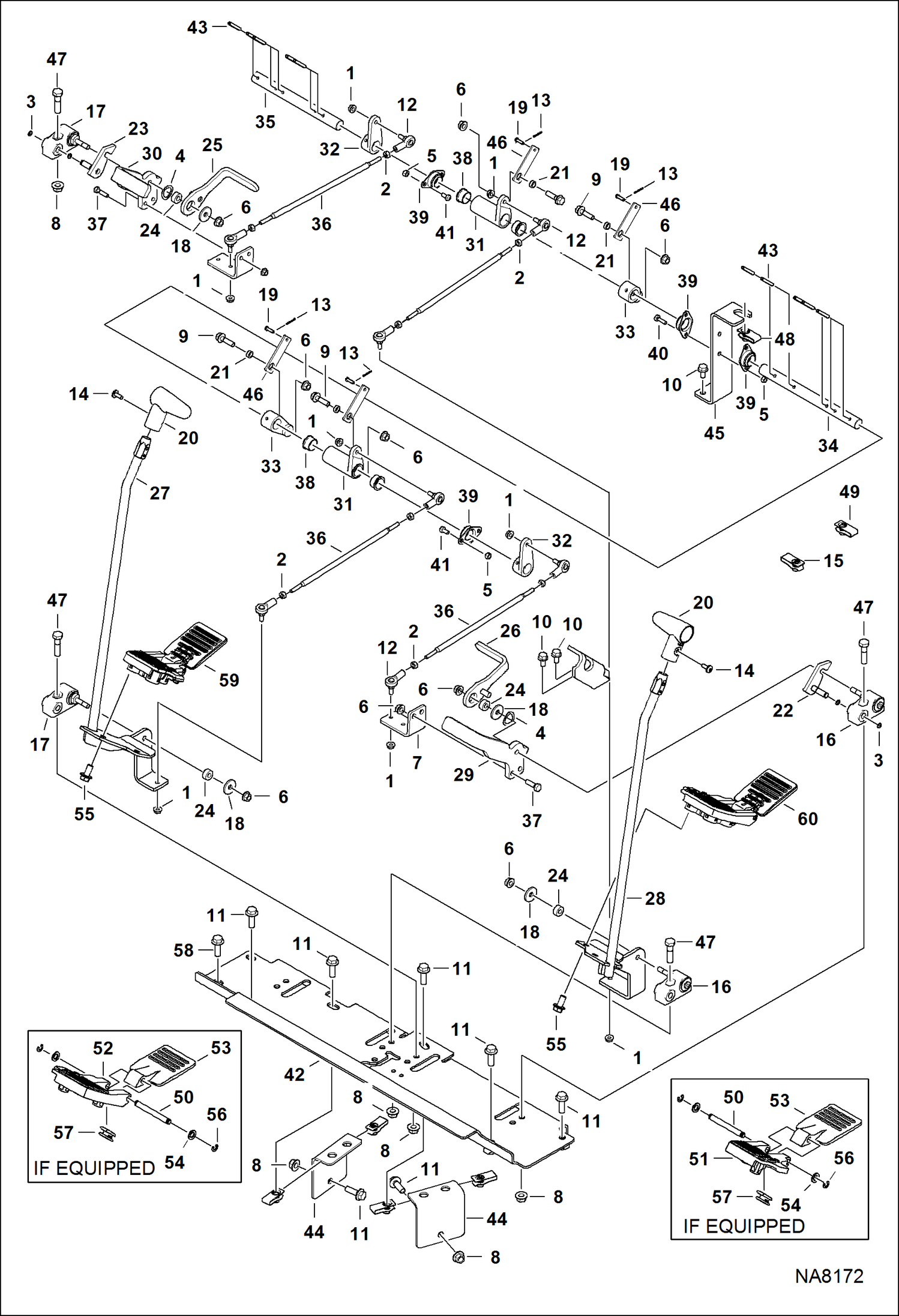

Запчасти Bobcat 324 STEERING CONTROLS (AKY522001 & Above) CONTROLS

1

98D4

NUT

2

62D4

NUT

3

54K20008

O-RING

4

6536803

WASHER

5

53DM6

NUT

6

51DM8

NUT

7

7172666

LINK, PEDAL

8

51DM10

NUT

9

29CM830

CAPSCREW

10

29CM816

SCREW

11

29CM1030

BOLT

12

6631036

JOINT

13

1F212

PIN

14

6803202

SCREW

15

6675722

NUT

16

6677904

BEARING

17

6677908

BEARING

18

6701174

WASHER

19

6801068

PIN

20

7163788

HANDLE, LEVER CONTROL

21

6807220

SPACER

22

6808930

LOCK

23

6809194

LOCK

24

6810303

SPACER

25

6810508

PEDAL

26

6810511

PEDAL

27

7218711

LEVER, CONTROL

28

7218712

LEVER, CONTROL

29

7116275

PEDAL LH

30

7179863

PEDAL

31

7108516

BELLCRANK MACHINED

32

7108518

BELLCRANK MACHINED

33

7108520

BELLCRANK MACHINED

34

7108920

SHAFT

35

7108924

SHAFT

36

7108966

ROD THREADED

37

1CM825

BOLT

38

7111975

BUSHING

39

7112044

BEARING FLANGE

40

1CM620

BOLT

41

1CM612

BOLT

42

7218771

PLATE

43

14J2124

ROLLPIN

44

7114500

BRACKET

45

7186069

BRACKET

46

7114502

LINK

47

1CM1040

BOLT

48

6676169

NUT

49

7186077

CLIP

50

7164061

PIN, HINGE

51

7167166

PEDAL, RH

52

7167167

PEDAL, LH

53

7167168

PEDAL, BACK

54

15EM100

WASHER

55

29CM1020

BOLT

56

9JM70

RETAINER SHAFT

57

7181057

GROMMET

58

29CM1025

BOLT

59

7210820

PEDAL ASSY RH

60

7210821

PEDAL ASSY LH
