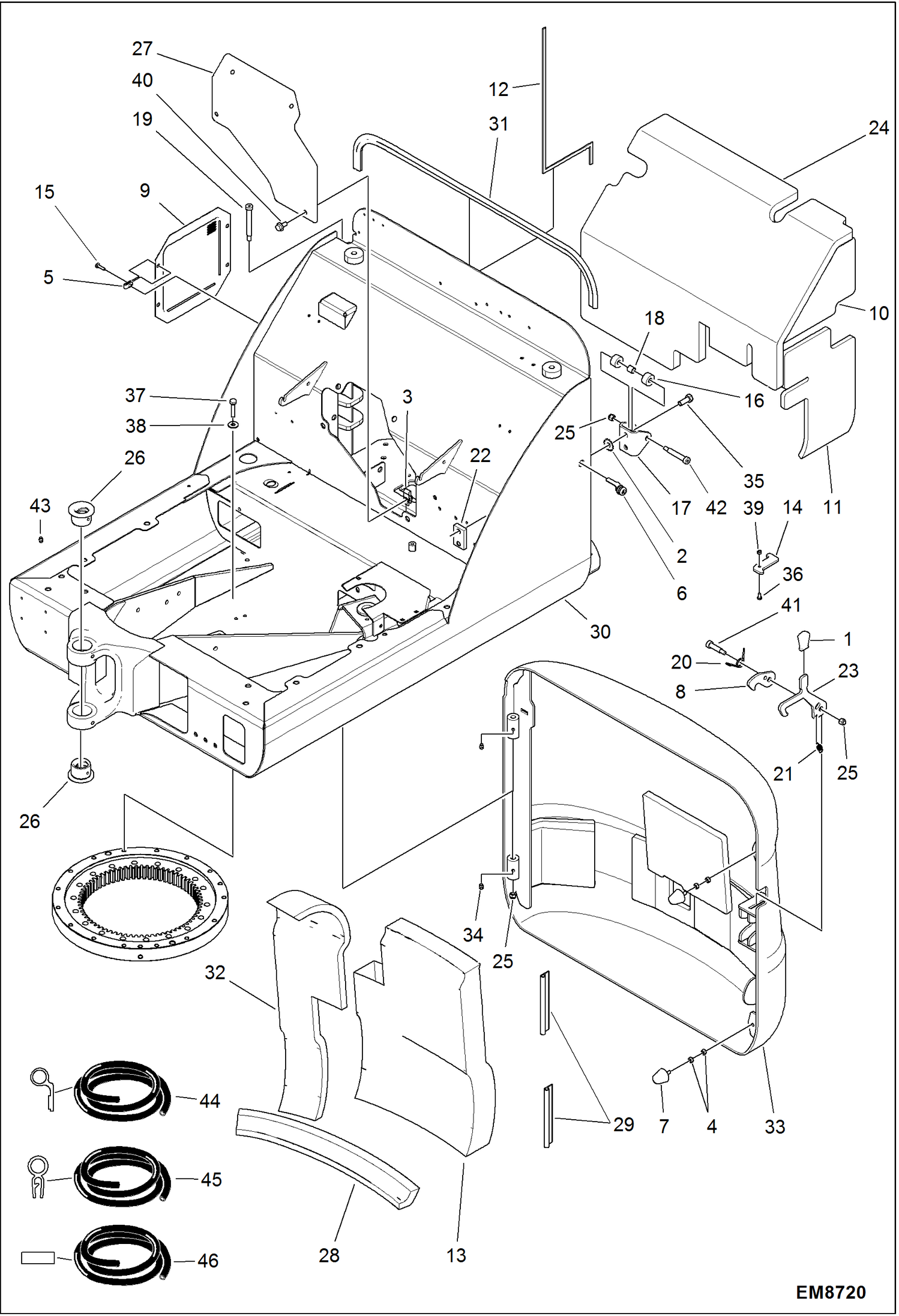

Запчасти Bobcat 324 UPPERSTRUCTURE (AKY511935 - 22000) MAIN FRAME

1

6564452

GRIP

2

6675273

WASHER

3

6675722

NUT

4

61D5

NUT

5

6676026

NUT

6

6678025

LOCK

7

6733616

BUMPER

8

6733667

LATCH, REAR DOOR

9

7198866

SCREEN Was 6807519 - A

10

6807606

INSULATION

11

6807607

INSULATION

12

SEAL, FOAM NLA - 711 mm (28'') long - Order Ref. 46

13

6808117

INSULATION

14

6808706

STOP

15

6809030

SCREW

16

6809726

ROLLER

17

6809727

CHANNEL

18

6809734

BUSHING

19

6809845

BOLT

20

6810132

SPRING

21

6810141

SPRING

22

6810802

BAR

23

6811909

HANDLE

24

7179614

INSULATION

25

59D6

NUT

26

7182633

BUSHING

27

7104985

COVER

28

7114285

INSULATION

29

SEAL NLA - 190,5 mm (7.5'') long - Order Ref. 44

30

7203734

UPPERSTRUCTURE Was 7195053 - A

31

SEAL, CROSSMEMBER NLA - 1067 mm (42'') long - Order Ref. 45

32

7149189

INSULATION

33

7194903

TAILGATE Was 7151017 - A

34

10H25

FITTING, GREASE 5

35

17C820

BOLT

36

1CM612

BOLT

37

56CM1045

SCREW

38

27E6

WASHER 5

39

4DM6

NUT

40

29CM1020

BOLT

41

38C824

SCREW

42

38C840

BOLT

43

7155411

NUT

44

6676396

SEAL bulk - sold per foot

45

6675732

SEAL bulk - sold per foot

46

6648416

SEAL BULK /FT bulk - sold per foot
