Запчасти Bobcat 323 VALVE SECTION (Boom) (323J) HYDRAULIC SYSTEM

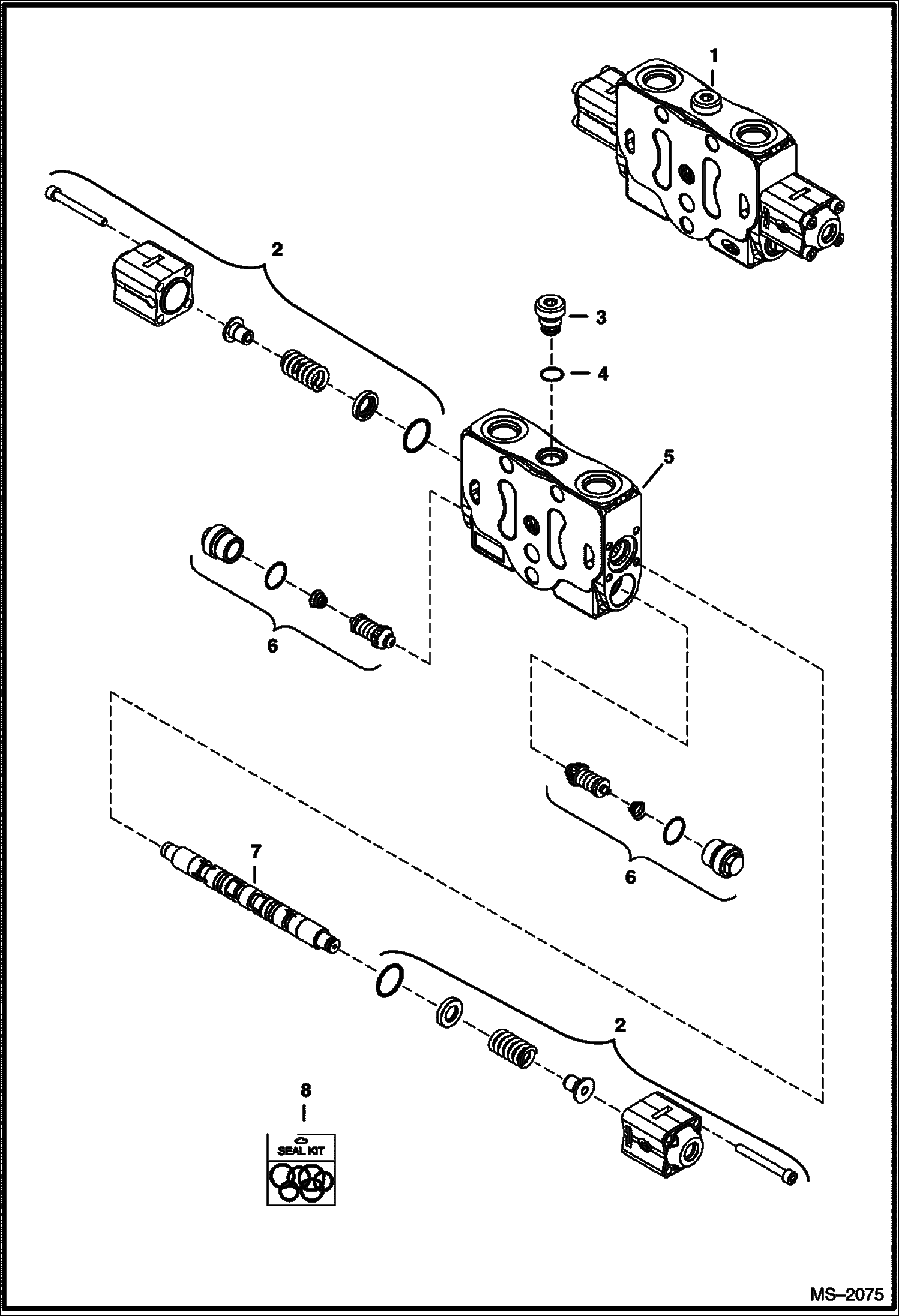

Схема запчастей Bobcat 323 - VALVE SECTION (Boom) (323J) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6688423

VALVE boom

2

6680067

KIT cap - Was 6688427 - A

3

6680092

VALVE, LOCK LOAD

4

O-RING NSS

5

BLOCK NSS

6

6685304

VALVE assy - 3400 PSI - port relief/anti cav - Was 6680061

7

SPOOL NSS - Order Ref. 1

8

6688431

KIT seal

Выбрано товаров: 8
