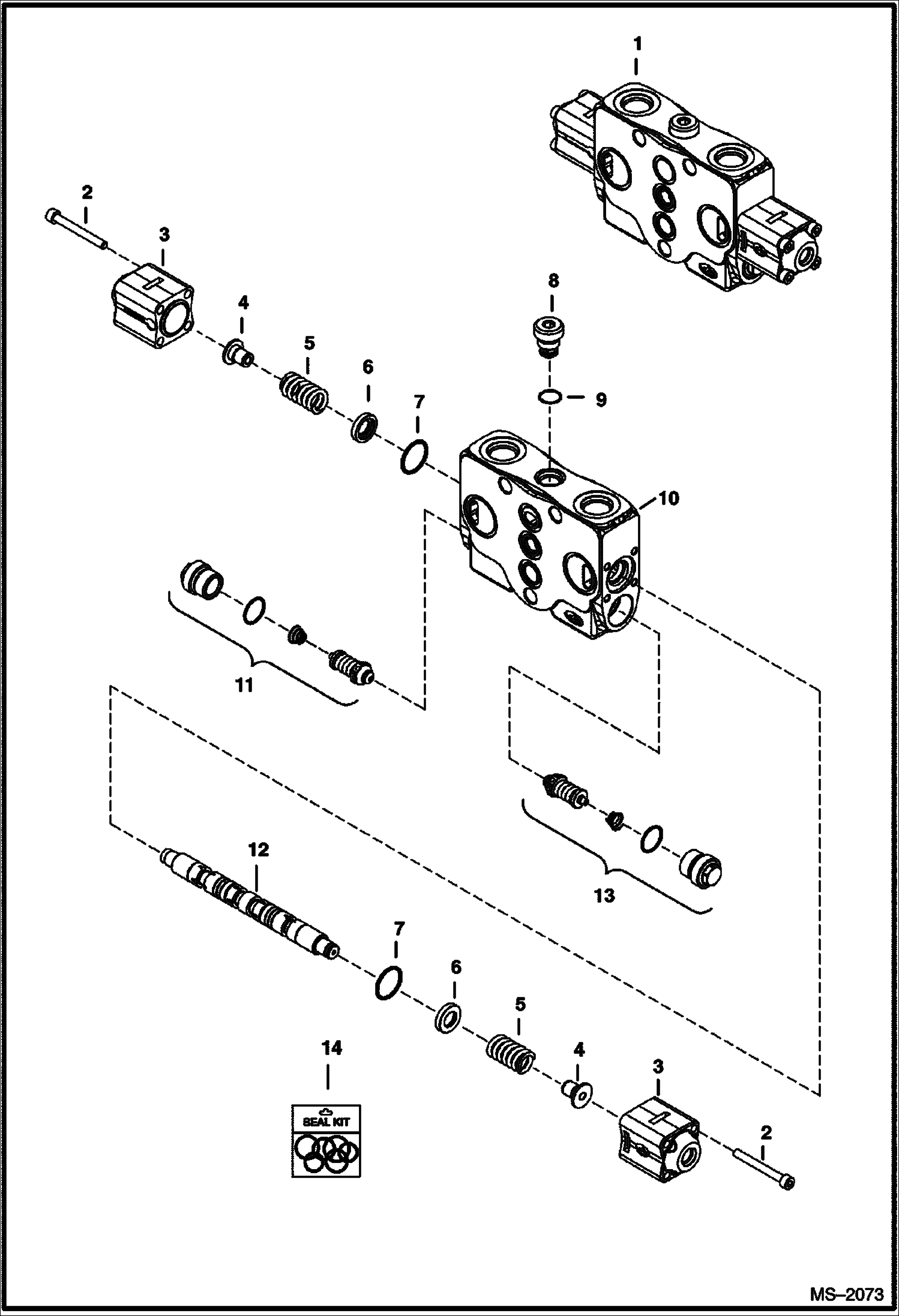

Запчасти Bobcat 323 VALVE SECTION (Arm) (323J) HYDRAULIC SYSTEM

1

6688420

VALVE assy

2

BOLT NSS - Order Ref. 14

3

BLOCK NSS - Order Ref. 14

4

SEAL NSS - Order Ref. 14

5

SPRING NSS - Order Ref. 14

6

SEAL NSS - Order Ref. 14

7

O-RING NSS - Order Ref. 14

8

6680092

VALVE, LOCK LOAD

9

O-RING NSS - Order Ref. 14

10

BLOCK NSS - Order Ref. 1

11

6680065

VALVE 2950psi

12

SPOOL NSS - Order Ref. 1

13

6685304

VALVE assy - 3400 PSI - port relief/anti cav - Was 6680061 - A

14

6680096

SECTION KIT section seal
