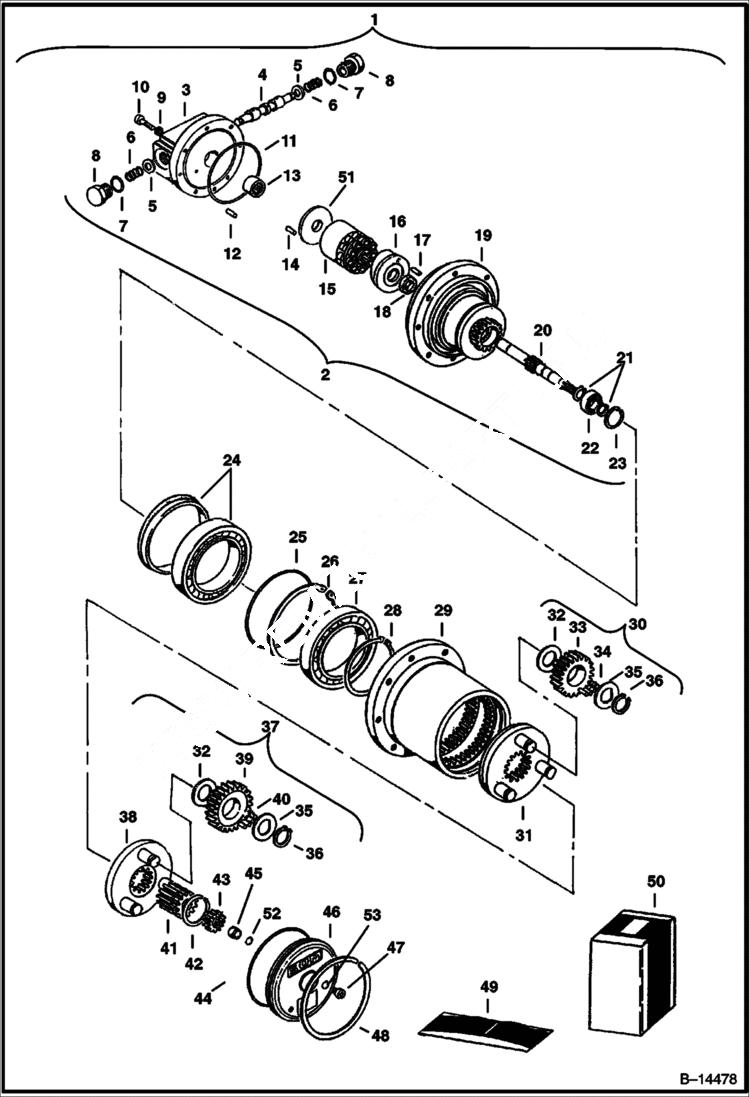

Запчасти Bobcat 323 TRAVEL MOTOR (320J) HYDRAULIC SYSTEM

1

6667336

MOTOR W/Refs. 2-48

2

6667750

MOTOR Assy. - W/Refs. 3-23

3

6667751

HOUSING

4

6667786

SPOOL

5

6667785

WASHER

6

6667784

SPRING

7

6667777

O-RING Incl. W/Refs. 49 & 50

8

6667783

PLUG

9

6667788

WASHER

10

6667787

BOLT

11

6667779

O-RING Incl. W/Refs. 49 & 50

12

6688111

PIN Was 6667780 - A

13

6667781

BEARING

14

6667782

DOWEL PIN

15

6667778

PISTON ASSY

16

6667775

PLATE Swash

17

6667776

DOWEL PIN

18

6667774

SEAL Incl. W/Refs. 49 & 50

19

6667789

HOUSING

20

6667772

SHAFT

21

6667756

SNAP RING

22

6667773

BEARING

23

6667762

SNAP RING

24

6667754

BEARING W/Floating seal - Incl. W/Ref. 50

25

6667769

O-RING Incl. W/Refs. 49 & 50

26

6667766

SNAP RING

27

6667770

BEARING

28

6667765

SNAP RING

29

6667748

HOUSING

30

6667792

GEAR ASSY W/Refs. 31-36

31

CARRIER NSS - Planetary

32

6667757

WASHER

33

6667755

GEAR

34

6667760

BEARING needle

35

6667758

WASHER

36

6667759

SNAP RING

37

6667793

GEAR ASSY W/Refs. 32, 35, 36 & 38-40

38

CARRIER NSS - Planetary

39

GEAR NLA - Order Ref. 37 (Gear Assy.) - Was 6667761 - A

40

6667763

BEARING Needle

41

6667753

GEAR

42

6667764

SNAP RING

43

6667752

GEAR

44

6667768

O-RING

45

6667747

SPACER

46

COVER NLA - Uses Plug W/Aluminum Washer Ref. 47 - Order 6667749 & 6676161 - Was 6667749 - A

46

6667749

COVER Uses Plug & Rubber O-ring

47

6667771

PLUG W/Ref. 53 - Uses Aluminum Washer

47

6676161

PLUG Uses Rubber O-ring

48

6667767

SNAP RING

49

6667791

SEAL KIT W/Refs. (2) 7, 11, 18, 25 & 44

50

6667790

REPAIR KIT W/Refs. 24 & 49

51

6671905

PLATE Valve - Incl. W/Ref. 15

52

6669597

SHIM .007'' (0,2mm) thick

52

6669598

SHIM .012'' (0,3mm) thick

52

6669599

SHIM .019'' (0,5mm) thick

53

6675272

WASHER Aluminum - Use W/Plug 6667771

53

O-RING NSS - Order Ref. 47 (6676161 Plug)
