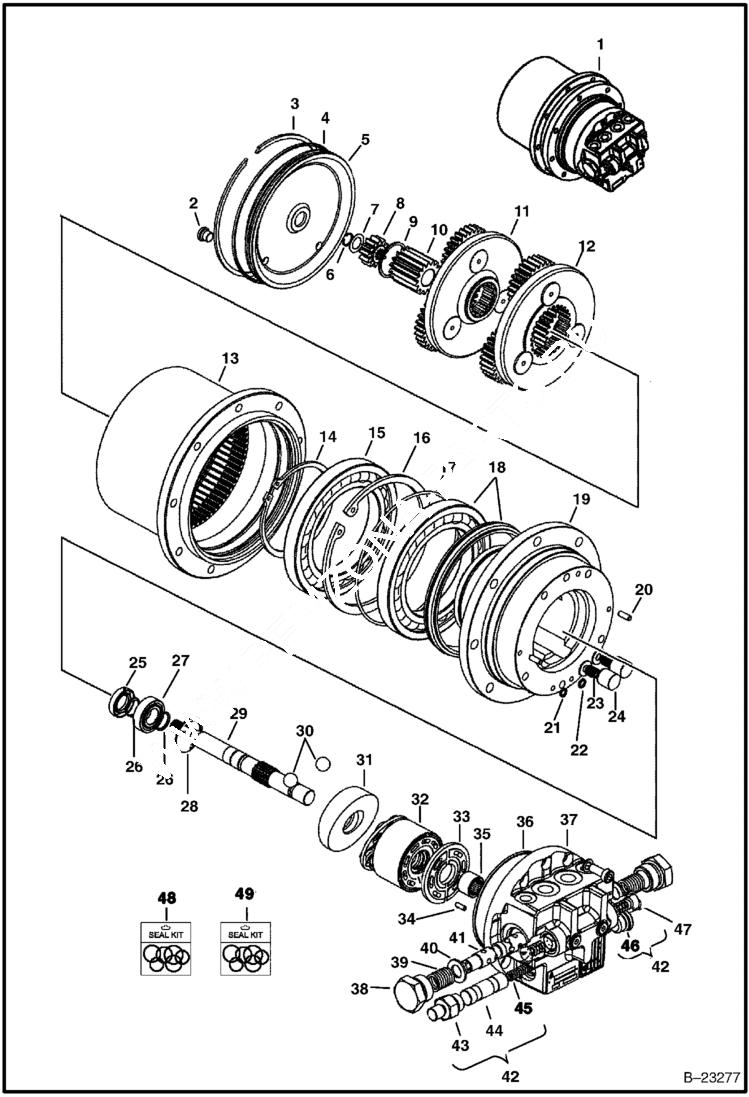

Запчасти Bobcat 323 DRIVE MOTOR (323J) HYDRAULIC SYSTEM

1

6686158

MOTOR, DRIVE HYD drive - complete w/gear reduction

2

6676161

PLUG

3

6667767

SNAP RING

4

6667769

O-RING

5

6688096

COVER

6

6688101

WASHER

7

6688119

SHIM

8

6667752

GEAR

9

6667764

SNAP RING

10

6667753

GEAR

11

6667793

GEAR ASSY

12

6667792

GEAR ASSY

13

6667748

HOUSING output

14

6667765

SNAP RING

15

6667770

BEARING

16

6667766

SNAP RING

17

6667768

O-RING

18

6667754

BEARING

19

6688098

HUB

20

6688111

PIN

21

6688110

O-RING

22

6688101

WASHER

23

6688100

SPRING

24

6688099

PISTON

25

6667774

SEAL

26

6667756

SNAP RING

27

6688114

BEARING

28

6688109

RING retaining

29

6688103

SHAFT

30

6688107

BALL

31

6688102

PLATE swash

32

6688112

KIT pump - rotating

33

6671905

PLATE distributor

34

6667782

DOWEL PIN

34

6667782

DOWEL PIN

35

6667781

BEARING needle

36

6667779

O-RING

37

6688116

COVER

38

6667783

PLUG Was 6688104 - A

39

6667784

SPRING Was 6688105 - A

40

6667785

WASHER Was 6688106 - A

41

6688115

VALVE

42

6688117

VALVE Ref. 43-46

43

7000966

FITTING

43

6679861

O-RING

43

25K20010

O RING 10

44

6670704

SPOOL

45

7003680

SPRING

46

7000964

PLUG

46

6679861

O-RING

47

6688113

VALVE shock proof

48

6688120

KIT seal, basic - Ref. 4, 17, 21, 25, & 36

49

6688121

KIT major rebuild - - Ref. 4, 17, 18, 21, 25, & 36
