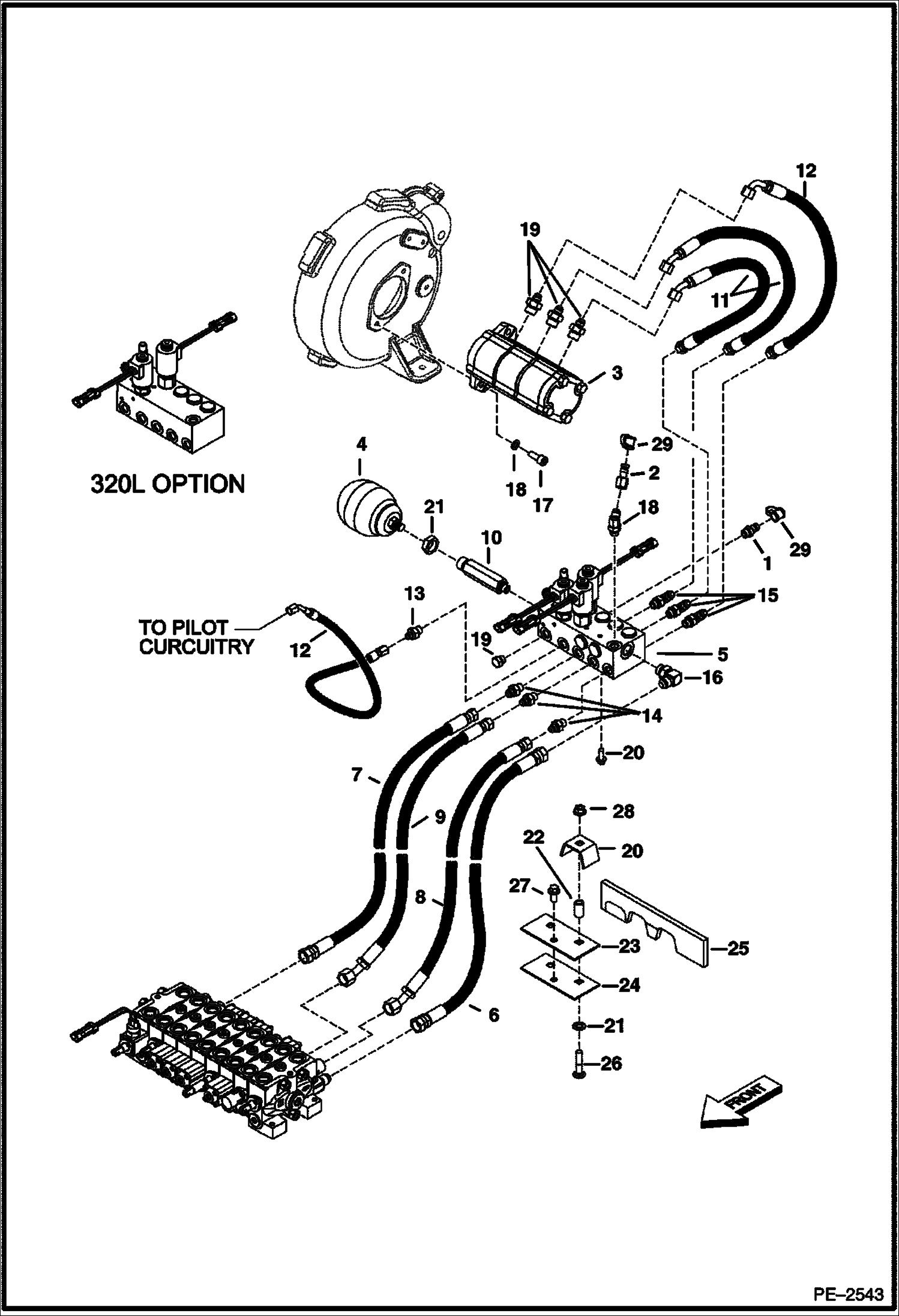

Запчасти Bobcat 323 HYDRAULIC CIRCUITRY (Manifold) (320J) HYDRAULIC SYSTEM

1

6630168

COUPLER

2

6661753

PLUG

3

6677829

GEAR PUMP See Illustration HYDRAULIC CIRCUITRY/ PE2541

4

6685832

ACCUMULATOR

5

6685833

MANIFOLD See Illustration MANIFOLD ASSY/ MS1400 320J only

5

6685040

MANIFOLD 320L only

6

6806778

HOSE 320J only

7

6809854

HOSE

8

6809855

HOSE

9

6811876

HOSE

10

6812814

FITTING

11

7105889

HOSE

12

7106607

HOSE

13

15KB0406

FTG HYD S CONNECTOR

13

79K6

O RING 10

14

15KB0606

FITTING, HYD CONNECTOR

14

79K6

O RING 10

15

17KB0606

FITTING 320L only

15

17KB0606

FITTING

16

17KB0808

FITTING, HYD ELBOW

17

6805750

SCREW

18

15EM100

WASHER

18

79K6

O RING 10

19

15KB0608

FITTING, HYD CONNECTOR

19

79K6

O RING 10

20

6597380

CLAMP

21

6674264

RETAINER NUT

22

6805602

SPACER

23

6807628

PLATE

24

6813924

INSULATION

25

7104967

INSULATION

26

28CM1050

BOLT

27

29CM1020

BOLT

28

43DM10

NUT

29

6630367

CAP
