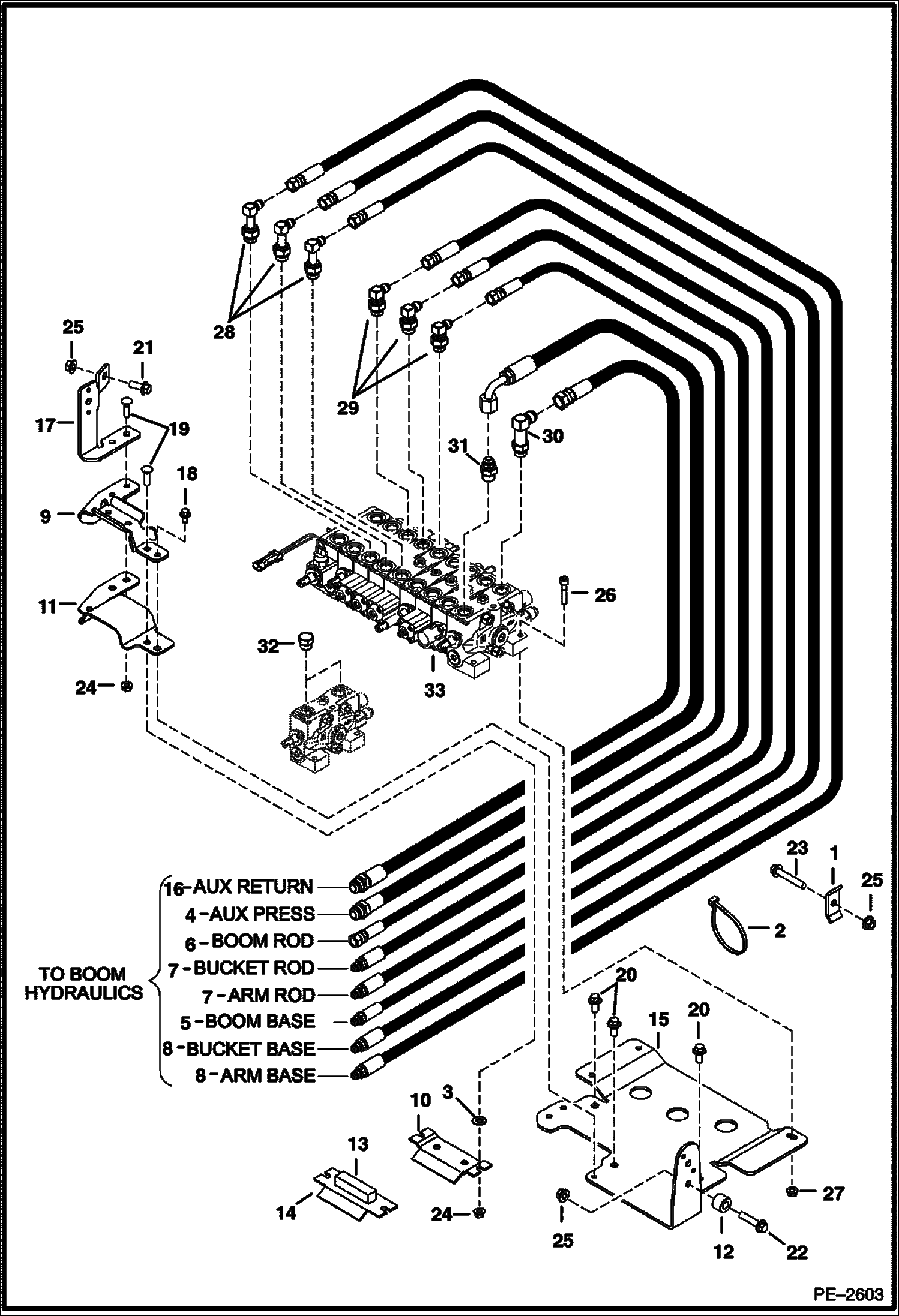

Запчасти Bobcat 323 HYDRAULIC CIRCUITRY (Work) HYDRAULIC SYSTEM

1

6502426

CLAMP

2

6624289

STRAP, TIE

3

6675859

RETAINER

4

6675907

HOSE

5

6806770

HOSE

6

6806771

HOSE

7

6806773

HOSE

8

6806774

HOSE

9

6806848

BRACKET

10

6806849

BRACKET

11

6807138

SHIELD

12

6808102

SPACER

13

6809491

SEAL 'L' only

14

7100338

BRACKET 'L' only

15

7104987

PLATE

16

7105887

HOSE

17

7106197

BRACKET pivot

18

26GM8016

SCREW

19

28CM830

BOLT

20

29CM1020

BOLT

21

29CM1025

BOLT

22

29CM1045

BOLT

23

29CM1060

SCREW

24

43DM8

NUT

25

43DM10

NUT

26

3GM840

SCREW

27

51DM8

NUT

28

6812817

ELBOW

28

79K8

O RING 10

29

6812818

ELBOW

29

79K8

O RING 10

30

6812820

ELBOW

30

79K8

O RING 10

31

15KB0808

FITTING, HYD CONNECTOR Was 15KB608 - D

31

79K8

O RING 10

32

24K6

FITTING 'L' only

32

79K8

O RING 10

33

6677774

VALVE See Illustration CONTROL VALVE/ MS2083 control

33

6685051

VALVE,CONTROL control - 'L' only
