Запчасти Bobcat 323 FUEL SYSTEM POWER UNIT

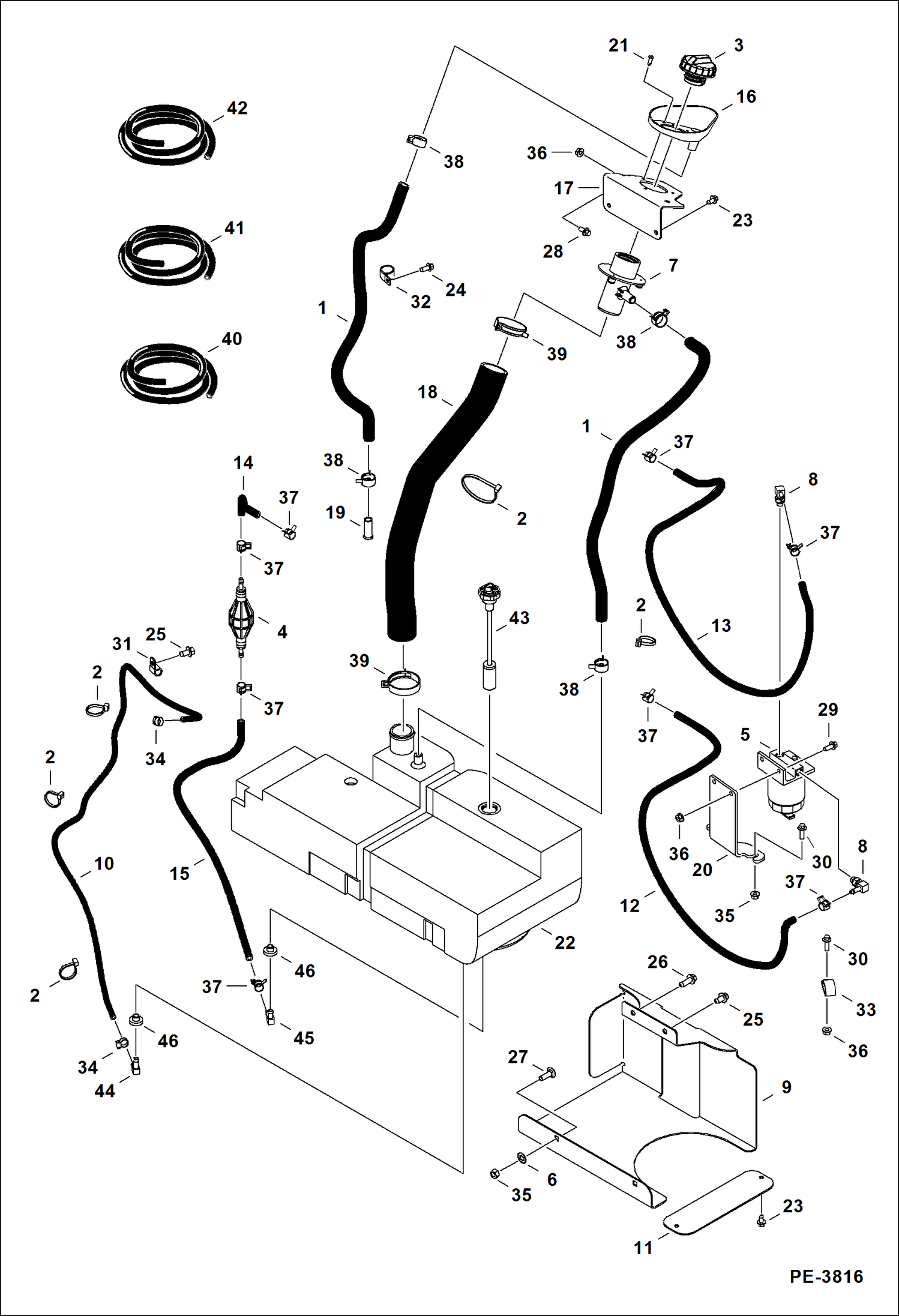

Схема запчастей Bobcat 323 - FUEL SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

HOSE NLA - 31.5'' (800 mm) long - Order Ref. 40

2

6624289

STRAP, TIE

3

6698505

CAP, FUEL DIESEL W/plastic tether - Also Order 6665321 male & 6665322 female rivet

3

7113340

CAP. DIESEL Europe Only

3

6665321

RIVET male - Use W/tethered cap

3

6665322

RIVET female - Use W/tethered cap

4

6667170

PUMP 193 mm (7.6'') long

5

6667353

FILTER ASSY

5

6667352

FILTER, FUEL W/SEPARATOR 12

5

6658180

PLUG, BLEED

6

6674264

RETAINER NUT

7

6701449

FILLER TUBE

8

6715183

ELBOW

9

6807175

SUPPORT

10

HOSE NLA - 63'' (1600 mm) long - Order Ref. 41

11

6807889

COVER

12

HOSE NLA - 48'' (1219 mm) long - Order Ref. 42

13

HOSE NLA - 44'' (1118 mm) long - Order ref. 42

14

HOSE NLA - 5'' (127 mm) long - Order Ref. 42

15

HOSE NLA - 35'' (889 mm) long - Order Ref. 42

16

6809964

GUARD

17

6810161

PLATE

18

6810209

HOSE

19

6810542

HOSE

20

7104975

SUPPORT

21

7106279

BOLT

22

6806578

TANK fuel

23

26GM8016

SCREW

24

26GM8020

SCREW

25

26GM10020

BOLT

26

26GM10030

BOLT

27

28CM1030

BOLT

28

29CM816

SCREW

29

29CM820

SCREW

30

29CM825

BOLT

31

30H31

CLAMP 10

32

30H49

CLAMP

33

31H38

CLAMP

34

42HS04

CLAMP, HOSE

35

43DM10

NUT

36

51DM8

NUT

37

5HM14

CLAMP

38

5HM23

CLAMP

39

5HM58

CLAMP

40

6578172

HOSE bulk - sold per foot

41

6578169

HOSE bulk - sold per foot - 0.19'' ID

42

6577822

HOSE bulk - sold per foot

43

7179838

SENSOR FUEL Was 6680437 - A

44

6630041

ELBOW

45

6553412

ELBOW

46

6553411

BUSHING 0.38'' ID

Выбрано товаров: 51
