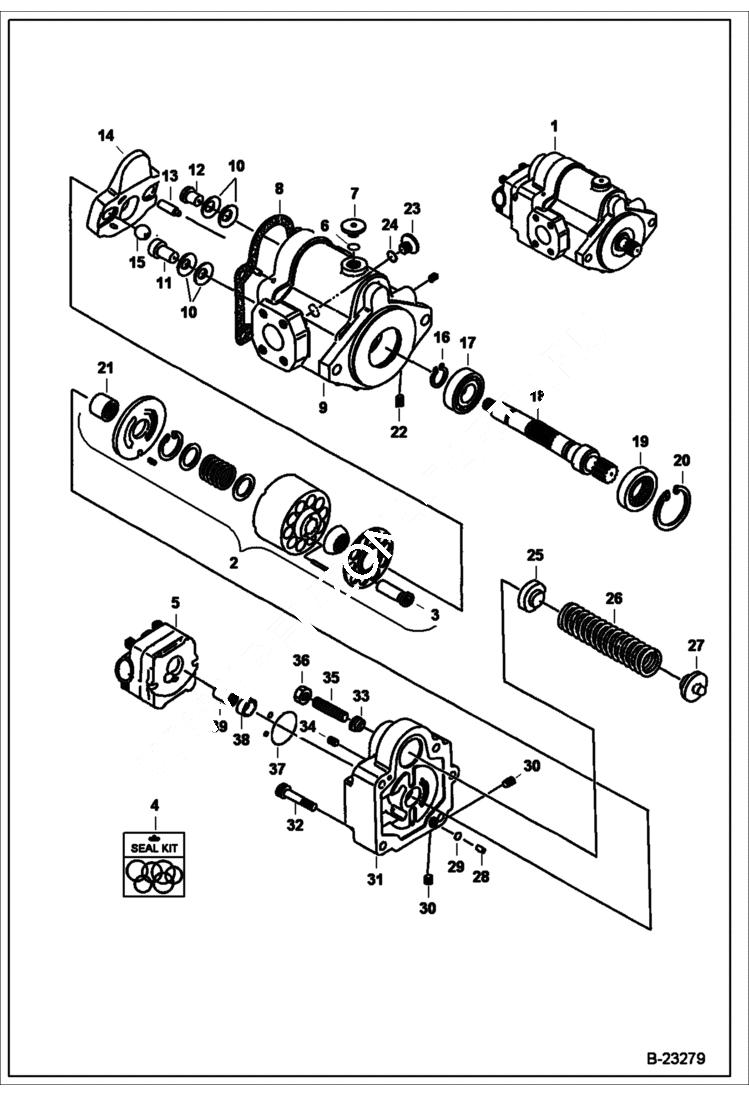

Запчасти Bobcat 323 HYDRAULIC PUMP HYDRAULIC SYSTEM

1

6686159

PUMP assy

2

6688089

KIT, ROTARY GROUP

3

6688090

PISTON

4

6688091

KIT seal - Ref. 6, 8, 19, 29, 33, 37

5

6688092

PUMP gear

5

6688919

SEAL KIT seal kit

6

O-RING NSS - Order Ref. 4

7

PLUG NSS - Order Ref. 1

8

SEAL NSS - Order Ref. 4

9

HOUSING NSS - Order Ref. 1

10

CUP NSS - Order Ref. 1

11

STOPPER NSS - Order Ref. 1

12

STOPPER NSS - Order Ref. 1

13

ROD NSS - Order Ref. 1

14

PLATE NSS - swash - Order Ref. 1

15

HOLDER NSS - Order Ref. 1

16

SNAP RING NSS - Order Ref. 1

17

BEARING NSS - Order Ref. 1

18

SHAFT NSS - Order Ref. 1

19

SEAL NSS - Order Ref. 4

20

SNAP RING NSS - Order Ref. 1

21

NEEDLE BEARING NSS - Order Ref. 1

22

PLUG NSS - Order Ref. 1

23

PLUG NSS - Order Ref. 1

24

O-RING NSS - Order Ref. 4

25

RETAINER NSS - Order Ref. 1

26

SPRING NSS - Order Ref. 1

27

RETAINER NSS - Order Ref. 1

28

PIN NSS - Order Ref. 1

29

O-RING NSS - Order Ref. 4

30

PLUG NSS - Order Ref. 1

31

PLATE, PORT NSS - Order Ref. 1

32

BOLT NSS - Order Ref. 1

33

WASHER NSS - Order Ref. 4

34

PLUG NSS - Order Ref. 1

35

SCREW NSS - Order Ref. 1

36

NUT NSS - Order Ref. 1

37

6688537

O-RING 2.34'' OD

37

6688538

O-RING .41'' OD

37

6688539

O-RING .45'' OD

38

6688541

COLLAR

39

6688540

COUPLER
