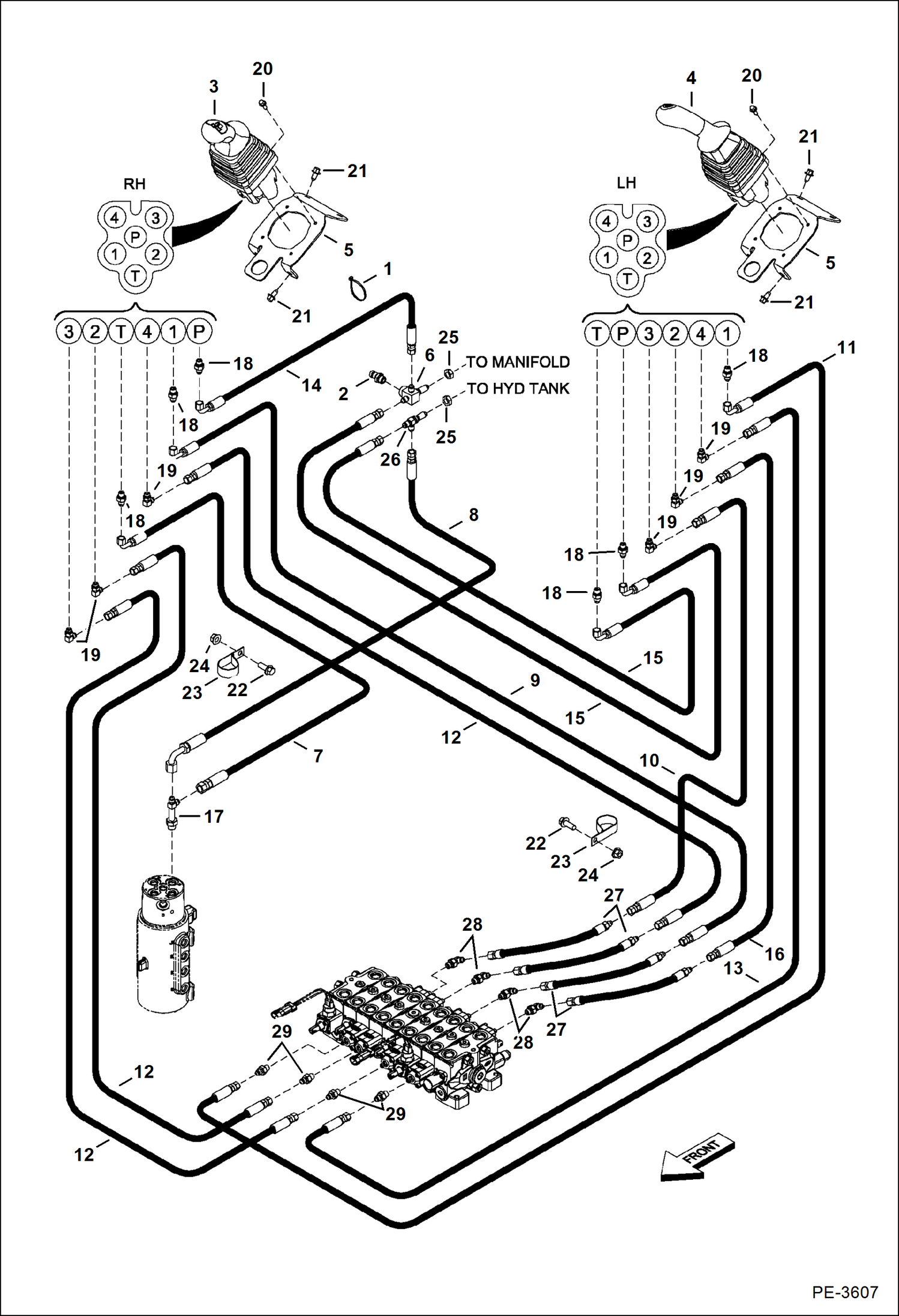

Запчасти Bobcat 323 HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6630168

COUPLER

3

6677893

JOYSTICK See Illustration RH JOYSTICK CONTROLS/ MS1353

4

6677894

JOYSTICK See Illustration LH JOYSTICK CONTROLS/ MS1354

5

6810924

MOUNT

6

6814191

TEE

7

7106587

HOSE

8

7106588

HOSE

9

7106594

HOSE

10

7106595

HOSE

11

7106596

HOSE

12

7106597

HOSE

13

7106598

HOSE

14

7106599

HOSE

15

7106600

HOSE

16

7107648

HOSE

16

7107648

HOSE

17

7126024

TEE

17

79K6

O RING 10

18

15KB0404

FTG HYD S Connector

18

79K4

O RING 10

19

17KB0404

FTG HYD ELBOW 90

19

79K4

O RING 10

20

26GM6020

SCREW

21

26GM8016

SCREW

22

29CM1025

BOLT

23

30HJ624

CLAMP

24

43DM10

NUT

25

86F3

LOCKNUT

26

91K3

TEE

27

7106602

HOSE

28

17KB0404

FTG HYD ELBOW 90

28

79K4

O RING 10

29

15KB0404

FTG HYD S Connector
