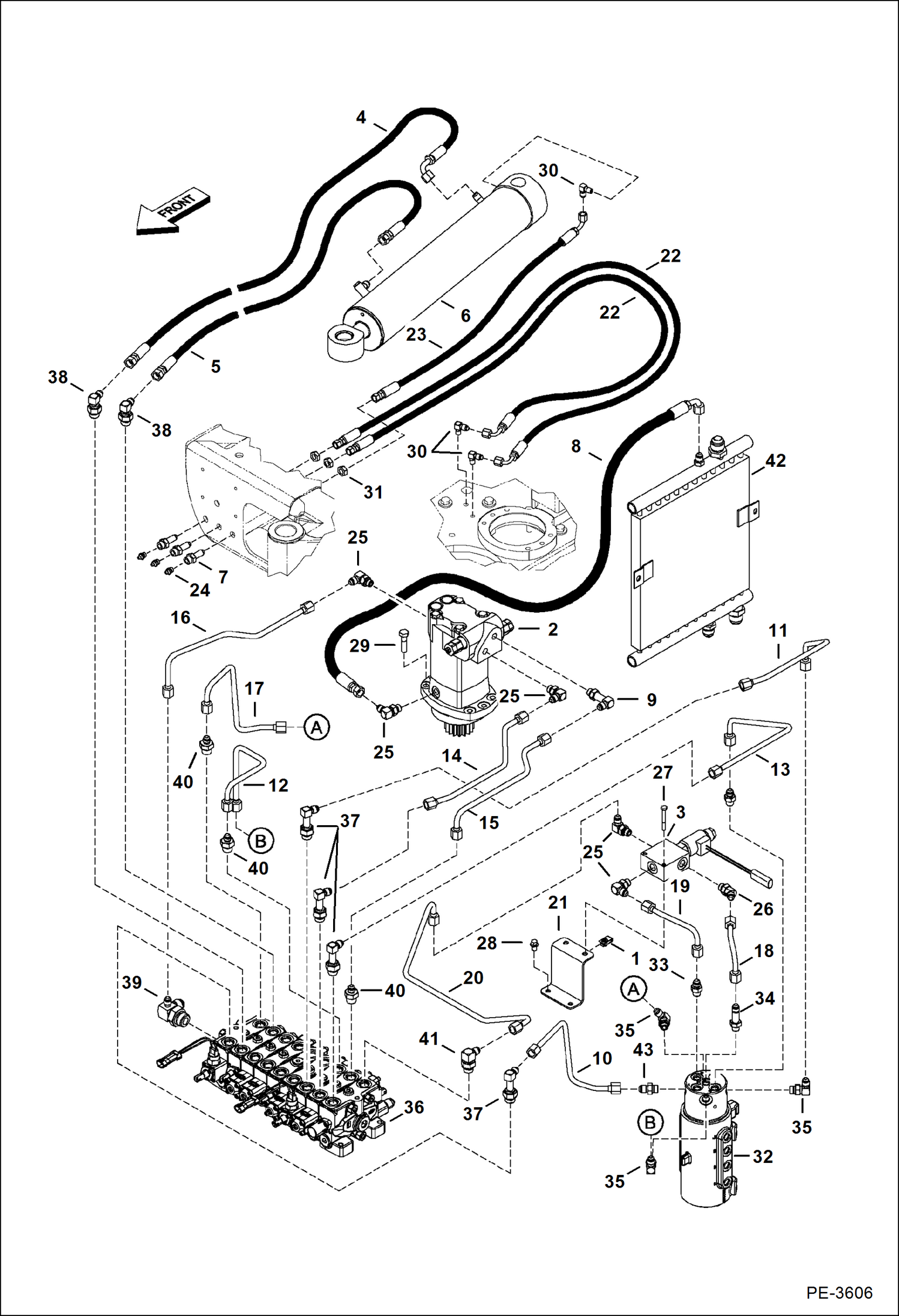

Запчасти Bobcat 323 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

6676026

NUT

2

6686218

MOTOR See Illustration SLEW MOTOR/ PE2616 slew

3

6686508

BLOCK See Illustration BLOCK VALVE/ MS1468

4

6806782

HOSE

5

6806783

HOSE

6

6810486

CYLINDER See Illustration SWING CYLINDER/ PE2528

7

6807184

FITTING

8

6807939

HOSE

9

6812815

FITTING

9

79K6

O RING 10

10

7149482

TUBELINE

11

7103630

TUBELINE

12

7103631

TUBELINE

13

7113116

TUBELINE

14

7104155

TUBELINE

15

7104156

TUBELINE

16

7104157

TUBELINE

17

7149481

TUBELINE

18

7113117

TUBELINE

19

7106186

TUBELINE

20

7106187

TUBELINE

21

7106225

BRACKET

22

7106608

HOSE

23

7106609

HOSE

24

10H25

FITTING, GREASE 5

25

17KB0606

FITTING

25

79K6

O RING 10

26

18KB0606

FITTING, HYD ELBOW

26

79K6

O RING 10

27

1CM650

SCREW

28

29CM812

BOLT

29

53CM1040

SCREW

30

53CM1040

SCREW

31

86F3

LOCKNUT

32

7102237

SWIVEL See Illustration SWIVEL JOINT/ MS2041

33

15KB0606

FITTING, HYD CONNECTOR

33

79K6

O RING 10

34

16KB0606

FTG HYD L CONNECTOR

34

79K6

O RING 10

35

17KB0606

FITTING

35

79K6

O RING 10

36

6686157

VALVE See Illustration CONTROL VALVE/ MS2069 control

37

6812817

ELBOW

37

79K8

O RING 10

38

6812818

ELBOW

38

79K8

O RING 10

39

6812819

FITTING

39

79K12

O RING 10

40

15KB0608

FITTING, HYD CONNECTOR

40

79K8

O RING 10

41

17KB0608

FITTING, HYD ELBOW

41

79K8

O RING 10

42

6675291

COOLER

43

15KB0606

FITTING, HYD CONNECTOR

43

79K6

O RING 10
