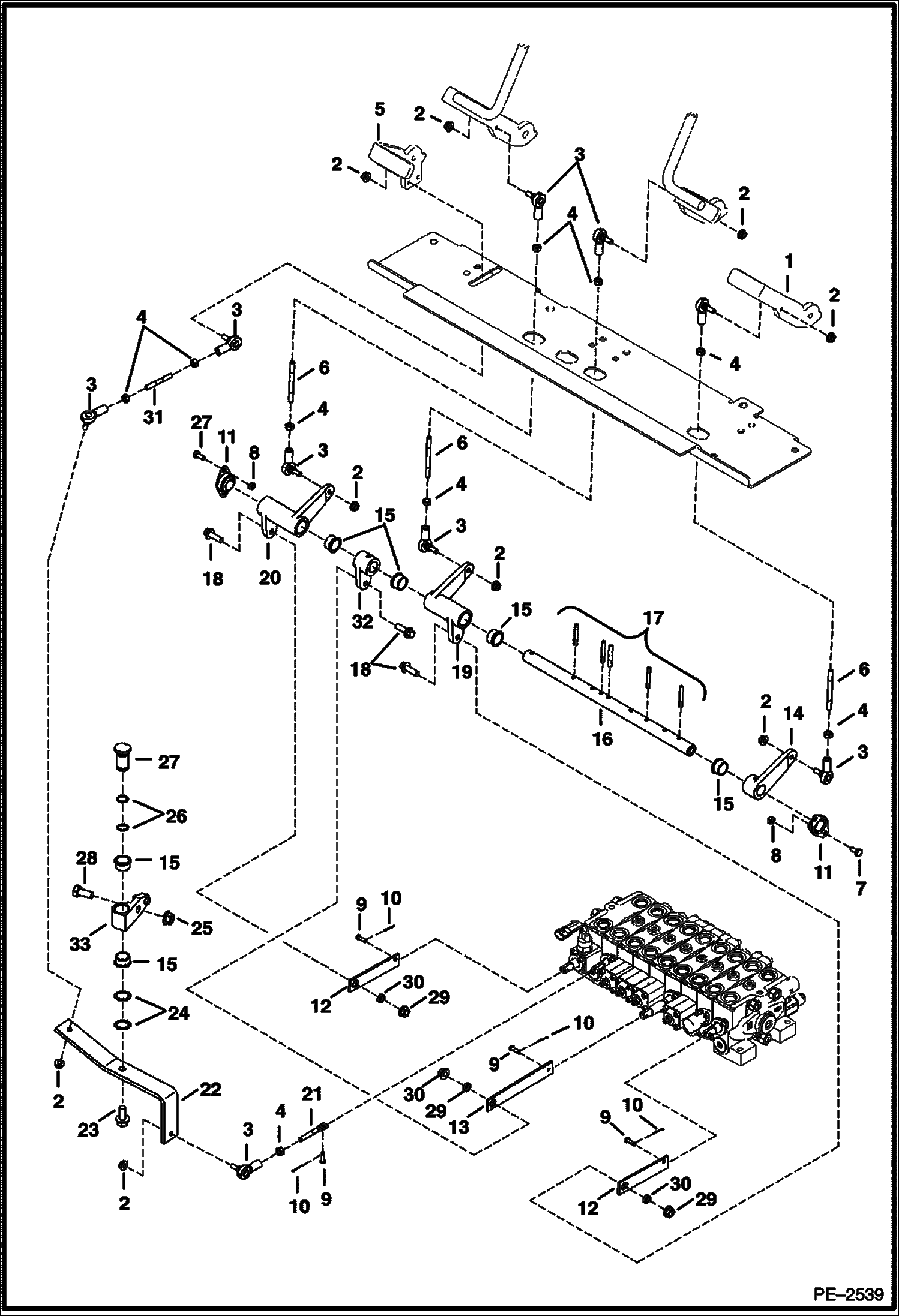

Запчасти Bobcat 323 CONTROLS (Travel & Offset)(Lower) CONTROLS

1

6816110

PEDAL

2

98D4

NUT

3

6631036

JOINT ball

4

62D4

NUT

5

6516109

HEAD

6

6807228

ROD

7

1CM614

SCREW

8

53DM6

NUT

9

6801068

PIN

10

1F212

PIN

11

6685122

BEARING FLANGE

11

6685122

BEARING FLANGE

12

6810062

LINK

13

6807222

LINK

14

7106805

BELLCRANK

15

6536801

BUSHING

16

7106198

SHAFT

17

14J2124

ROLLPIN

18

29CM825

BOLT

19

6810067

BELLCRANK

20

7106822

BELLCRANK

21

6807223

ROD

22

6810064

LINK

23

29CM1025

BOLT

24

6536802

WASHER

25

51DM10

NUT

26

58K015

O-RING 10

27

6808351

SLEEVE

28

1CM1030

BOLT

29

51DM8

NUT

30

6807220

SPACER

31

6807229

ROD

32

7106803

BELLCRANK

33

6537481

MOUNT
