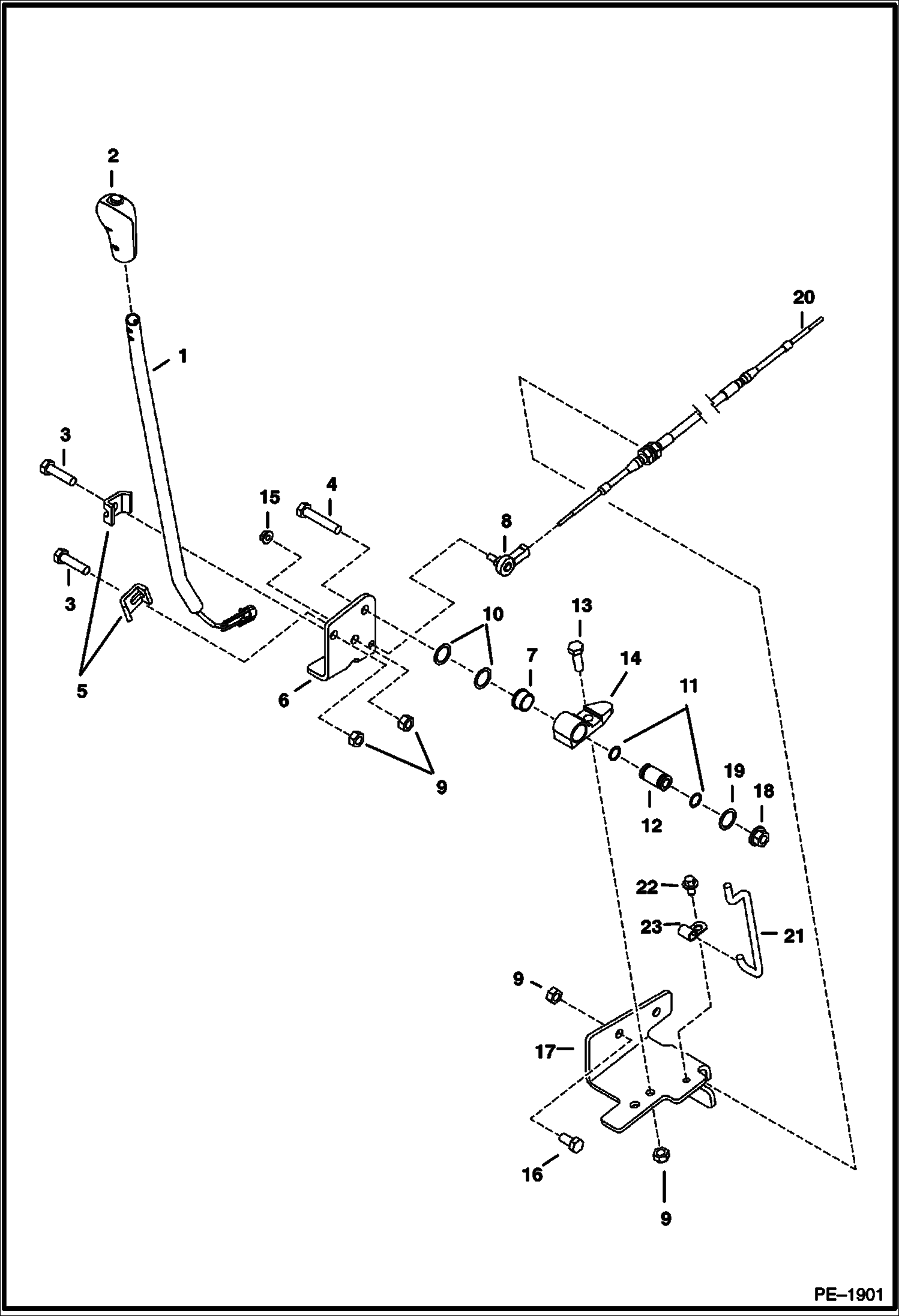

Запчасти Bobcat 323 CONTROLS (Blade) CONTROLS

1

LEVER NLA - blade - W/two speed switch - Order components - Was 6810760 - A

1

6810706

TUBE

2

6675831

HANDLE front half

2

6675832

HANDLE back half

2

6675721

SWITCH 2 speed

2

SCREW NLA - #6 x 5/8 pan head

3

1CM1040

BOLT

4

1CM1055

BOLT

5

6562266

CLAMP

6

6810705

BRACKET

6

6810705

BRACKET

7

6536801

BUSHING

8

6631036

JOINT

9

53DM10

NUT

10

27E6

WASHER 5

11

58K015

O-RING 10

12

6536545

SLEEVE

13

1CM1030

BOLT

14

6537481

MOUNT

15

62D4

NUT

16

1CM1020

BOLT

17

6810738

BRACKET

18

51DM10

NUT

19

6536802

WASHER

20

6669604

CABLE throttle

21

6810406

ROD

22

26GM8016

SCREW

23

30H22

CLIP
