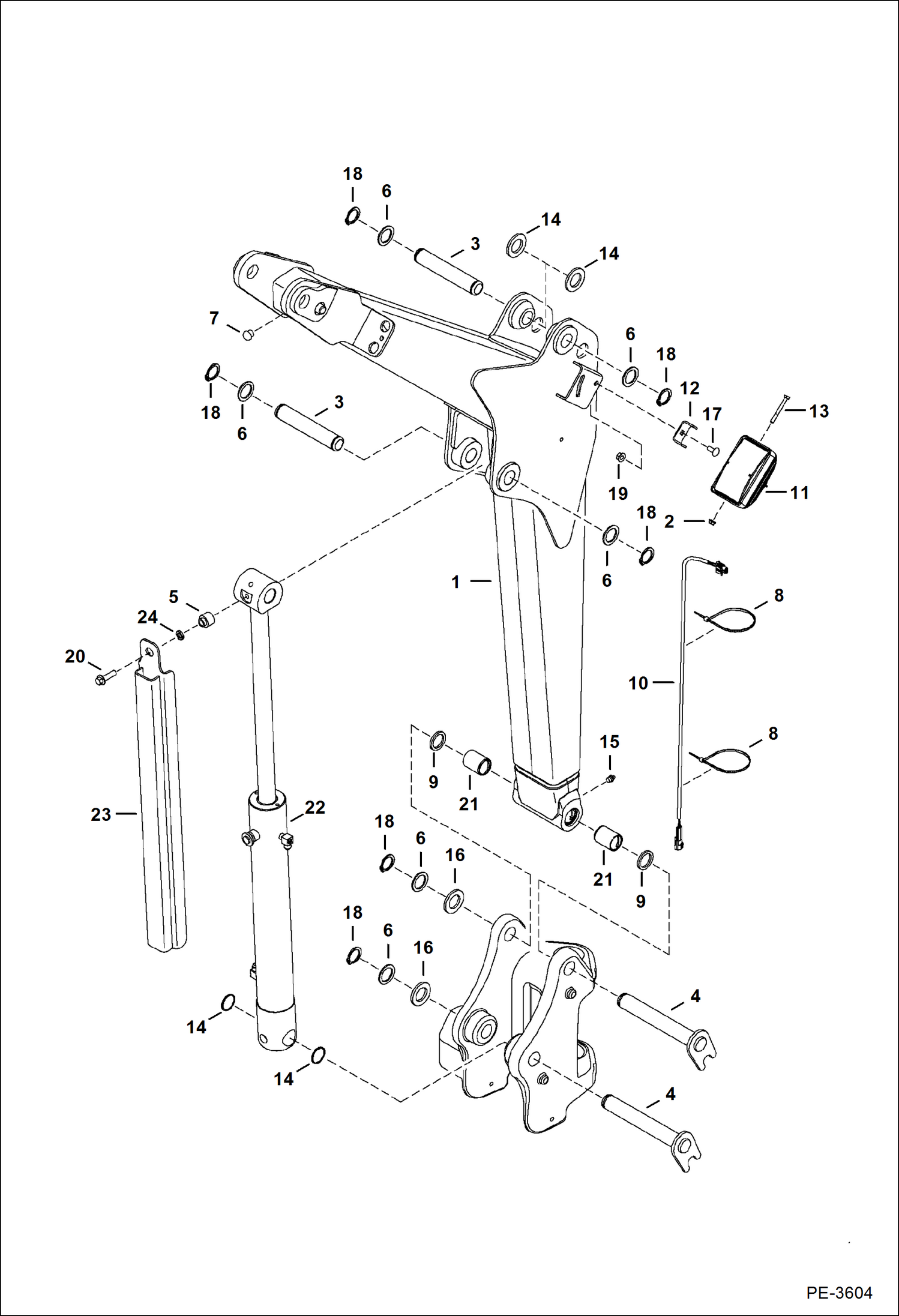

Запчасти Bobcat 323 BOOM WORK EQUIPMENT

1

7177739

BOOM, ARM DIPPER Also Order (2) of Ref. 9 & 21 - Was 7102660 - A

2

51DM6

NUT

3

6589067

PIN

4

6589092

PIN

5

7131110

SPACER

6

6589699

WASHER

7

6597572

BUMPER

8

6610510

TIE

9

6653534

SEAL

10

7135895

HARNESS

11

6691410

LIGHT

11

6692400

BULB

12

7135899

BRACKET

13

1CM655

SCREW

14

6533856

SHIM

15

10H25

FITTING, GREASE 5

16

1EM270

WASHER

17

28CM820

BOLT

18

22J19

SNAP RING

19

51DM8

NUT

20

59CM1035

BOLT

21

7100276

BUSHING

22

CYLINDER See Illustration BOOM CYLINDER/ PE2529

23

7130862

SHIELD

24

7135076

SPRING WASHER
