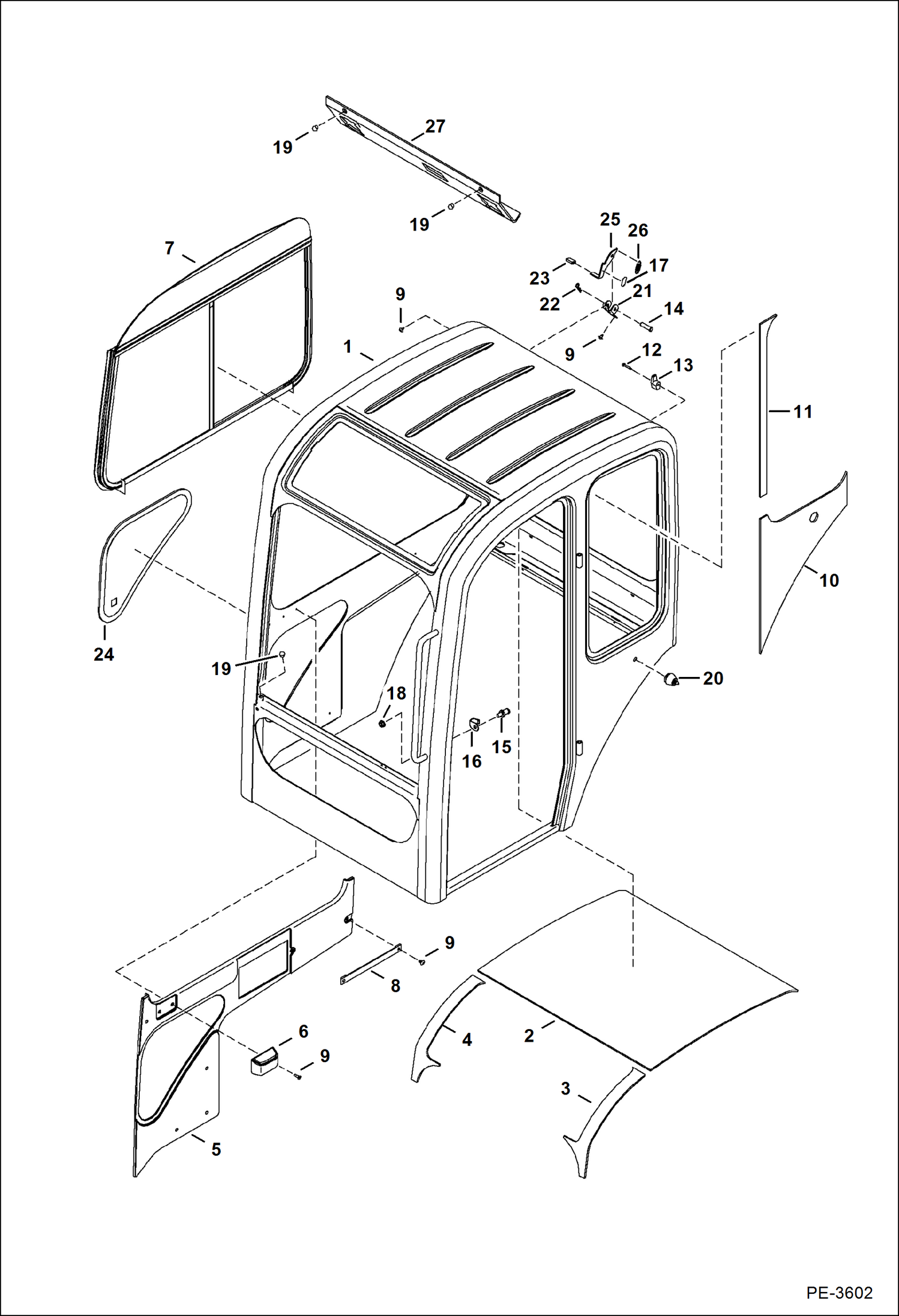

Запчасти Bobcat 323 OPERATOR CAB (RH Window & Insulation) MAIN FRAME

1

CAB See Illustration CAB KIT/ PE3334 NLA - Was 7109077 - A

2

6816185

INSULATION roof

3

6818362

INSULATION LH - front

4

6818275

INSULATION RH - front

5

7101010

INSULATION for machines W/ashtray

5

7163052

INSULATION, CAB RH for machines W/O ashtray

6

6664075

ASH TRAY

7

WINDOW See Illustration OPERATOR CAB/ PE2297 RH

8

6589347

STRAP elastic

9

6589675

SCREW

10

7117115

INSULATION SIDE

11

6816189

INSULATION

12

6808424

SCREW

13

6658289

HOOK coat

14

1303190

PIN, CLEVIS Was 4F6106 - D

15

6689007

STRIKER BOLT

16

6688999

STRIKER GUARD cover

17

6815985

DECAL latch

18

55D7

NUT

19

6597572

BUMPER

20

6689001

STRIKER hold open

21

6814724

LATCH

22

1306637

CLIP lock

23

6677500

HANDLE lever

24

6811792

WINDOW RH - Use 6808882 adhesive, 7102268 primer, & 7110861 cleaner

25

6814721

HANDLE latch

26

6714210

SPRING

27

7108627

INSULATION rear
