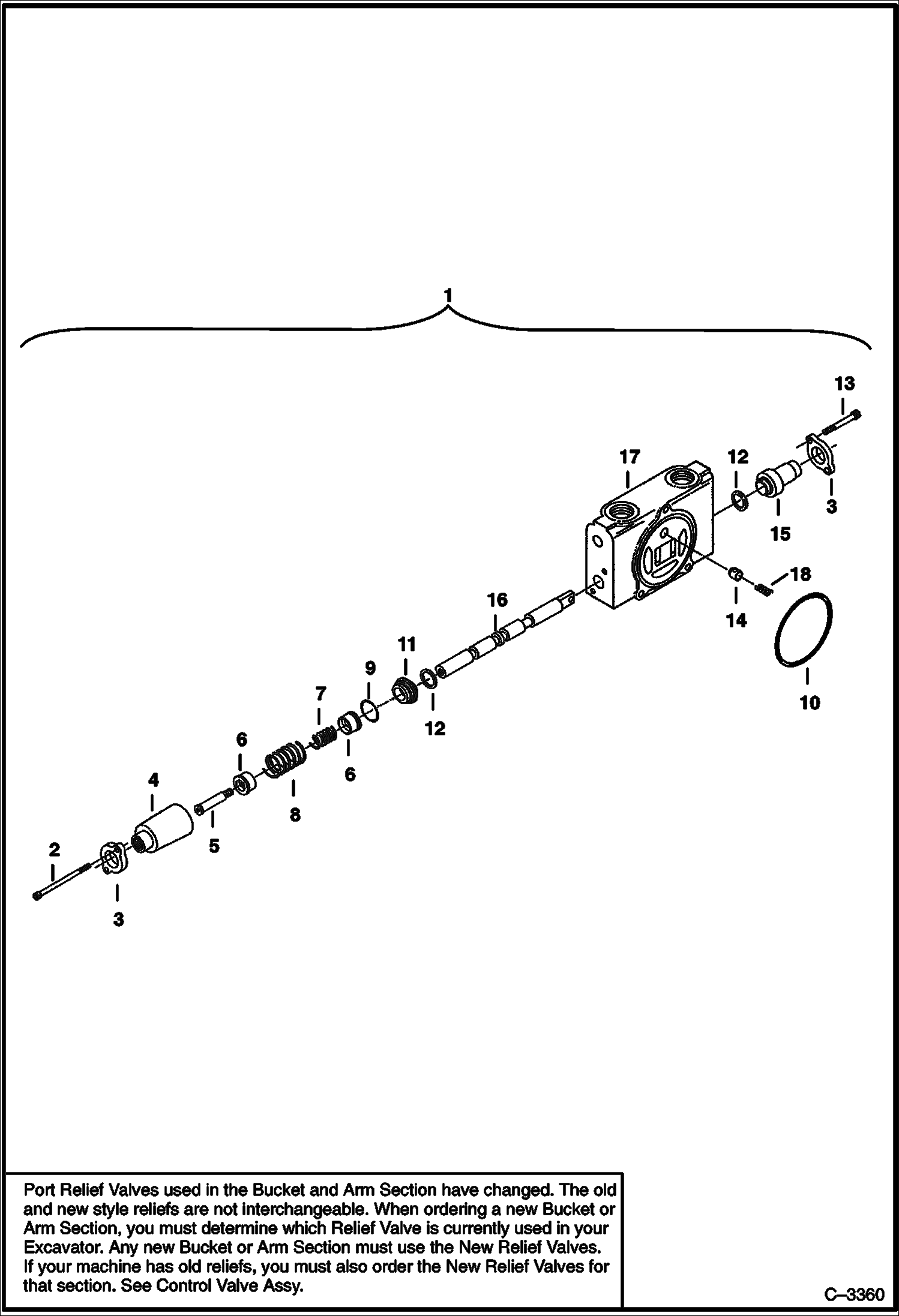

Запчасти Bobcat 322 VALVE SECTION (Bucket & Arm) HYDRAULIC SYSTEM

1

6670576

VALVE Section - Bucket - W/Refs. 2-19 - See Note

1

VALVE NLA - Section - Arm - W/Refs. 2-19 - Order 6672183 - See Note - Was 6670572 - A

1

6672183

VALVE Section - Arm W/Refs. 2 - 19 - See Note

2

6665439

SCREW

3

6665442

PLATE

4

6668964

END COVER

5

6668967

BOLT

6

6668970

SEAT Spring

7

6668968

SPRING Inner

8

6668969

SPRING Outer

9

6665435

O-RING

10

58K228

O RING 10 Was 6646691 - A

11

6665443

RETAINER

12

25K20026

O RING 10 Was 6665432 - A

13

73G424

SCREW

14

6630965

POPPET

15

6668965

END COVER

16

SPOOL NSS - Order Ref. 1

17

HOUSING NSS - Order Ref. 1

18

6630966

SPRING
