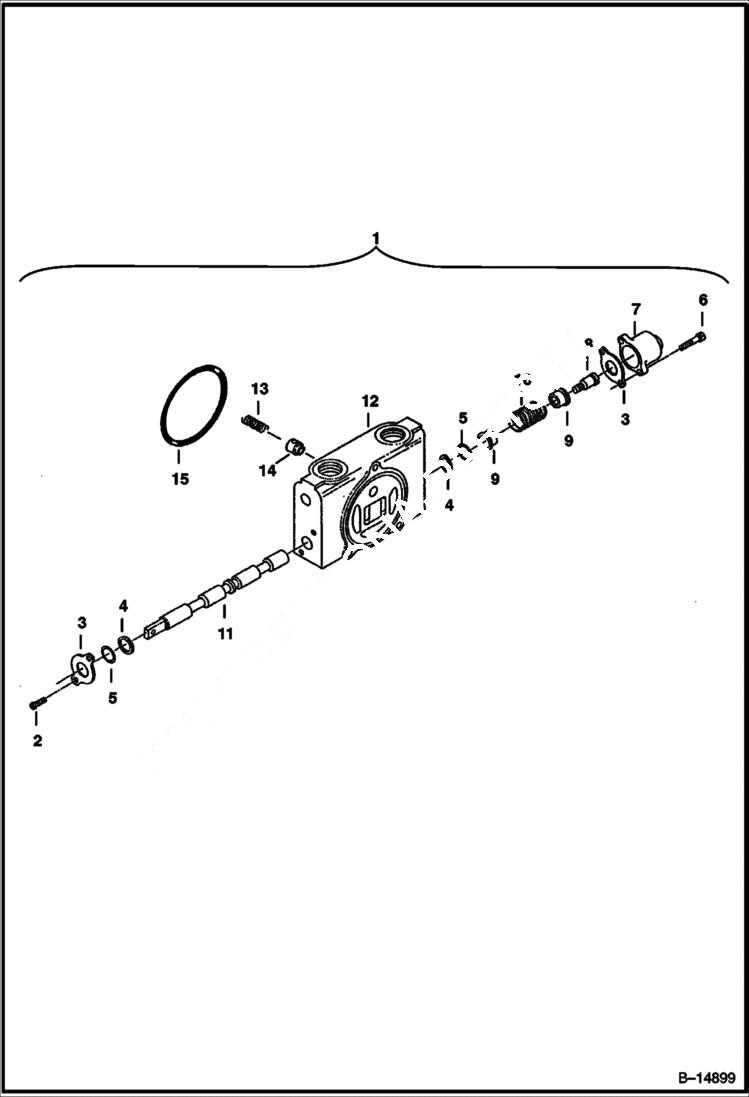

Запчасти Bobcat 322 VALVE SECTION (L.H. Travel & Blade) HYDRAULIC SYSTEM

1

6670575

VALVE Section - L.H. Travel - W/Refs. 2-15

1

6670569

VALVE Section - Blade - W/Refs. 2-15

2

6671684

SCREW Was 93G000407B - B

3

948016

PLATE

4

6668972

O-RING

5

948021

SEAL wiper

6

73G412

SCREW

7

948192

CAP

8

BOLT NLA - Was 948019 - A

9

948017

SEAT Spring

10

948018

SPRING

11

SPOOL NSS - Order Ref. 1

12

HOUSING NSS - Order Ref. 1

13

6630966

SPRING

14

6630965

POPPET

15

58K228

O RING 10 Was 6646691 - A
