Запчасти Bobcat 322 CONTROL VALVE ASSY. HYDRAULIC SYSTEM

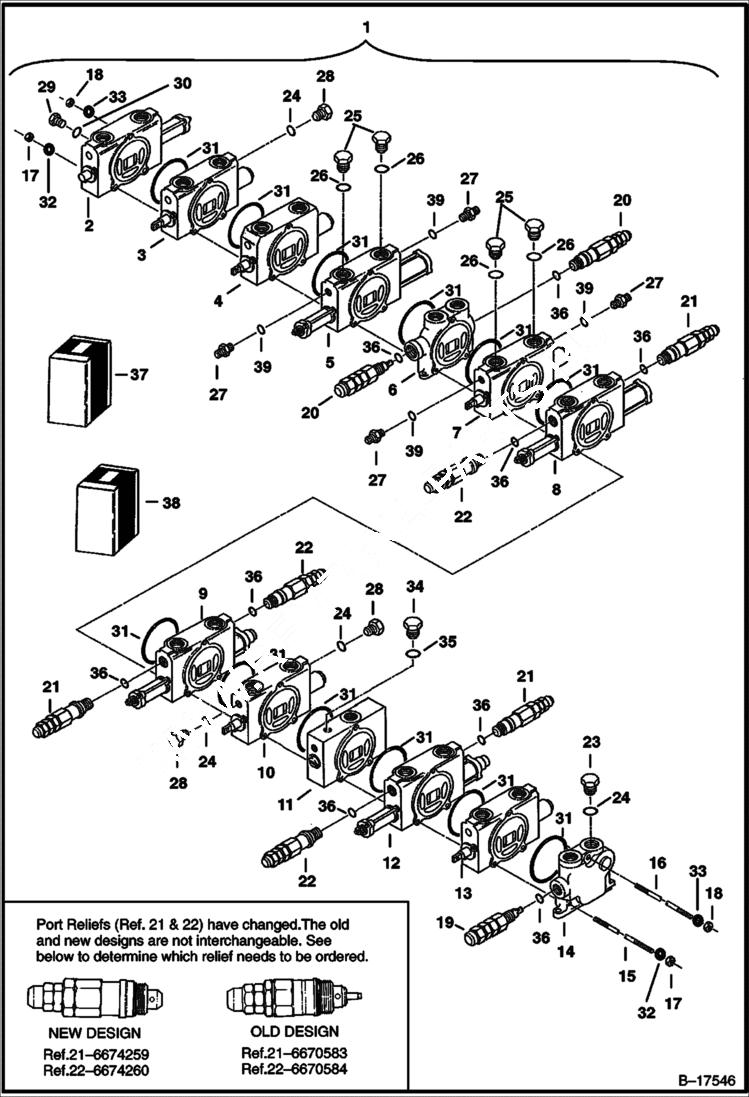

Схема запчастей Bobcat 322 - CONTROL VALVE ASSY. HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6669612

VALVE W/Refs. 2-31

2

6670574

VALVE See Illustration VALVE SECTION/ B14902 - Section - Boost

3

6670569

VALVE See Illustration VALVE SECTION/ B14899 - Section - Blade - For S/N 5623 13001 - 16215 - Also Order (1) 6671699

4

6670577

VALVE See Illustration VALVE SECTION/ B17990 - Section - Boom Swing

5

6670573

VALVE See Illustration VALVE SECTION/ B14901 - Section - Swing

6

6670567

VALVE Section - Mid-Inlet

7

6670570

VALVE See Illustration VALVE SECTION/ C3359 - Section - R.H. Travel

8

VALVE See Illustration VALVE SECTION/ C3360 - NLA - Section - Arm - 6672183 - Was 6670572 - A

8

6672183

VALVE See Illustration VALVE SECTION/ C3360 - Section Arm

9

6670576

VALVE See Illustration VALVE SECTION/ C3360 - Section Bucket - For S/N 5623 13001 16213 - A;so Order (2) 6671699

10

6670568

VALVE See Illustration VALVE SECTION/ C3359 - Section - Auxiliary

11

6670580

VALVE See Illustration VALVE SECTION/ B14898 - Section - Utility Block

12

6670571

VALVE See Illustration VALVE SECTION/ B14900 - Section Boom

13

6670575

VALVE See Illustration VALVE SECTION/ B14899 - Section - L.H. Travel

14

6670566

INLET

15

6674294

TIE ROD Was 6670582 - B

16

6674295

TIE ROD Was 6670585 - B

17

61D5

NUT

18

62D6

NUT 5

19

6670587

RELIEF VALVE 2500 PSI @ 4GPM

20

6670586

RELIEF VALVE 2500 PSI @ 8GPM

21

6670583

RELIEF VALVE 2950 PSI @ 5GPM - See Note

21

6674259

VALVE 2950 PSI @ 5GPM - See Note

22

6670584

RELIEF VALVE 3400 PSI @ 5GPM - See Note

22

6674260

RELIEF VALVE 3400 PSI @ 5GPM - See Note

23

24K7

PLUG W/Ref. 24

24

79K10

O RING 10

25

24K6

FITTING W/Ref. 26

26

79K8

O RING 10

27

6670593

CONNECTOR W/Ref. 39

28

6631050

PLUG W/Ref. 24

28

6671699

PLUG W/Ref. 24

29

6670588

PLUG

30

79K6

O RING 10 Was 6665471 - A

31

58K228

O RING 10 Was 6646691 - A

32

6668961

WASHER

33

6668973

WASHER

34

6668956

PLUG Not used on earlier models

35

6668957

O-RING Not used on earlier models

36

961240

O-RING

37

6671586

SEAL KIT for relief valves Ref. 19, 20, 21 (6670583 ) & 22 (6670584 )

38

6665458

SEAL KIT for relief valves Refs. 21 (6674259 ) & 22 (6674260 )

39

SEAL NSS - Order Ref. 27

Выбрано товаров: 43
