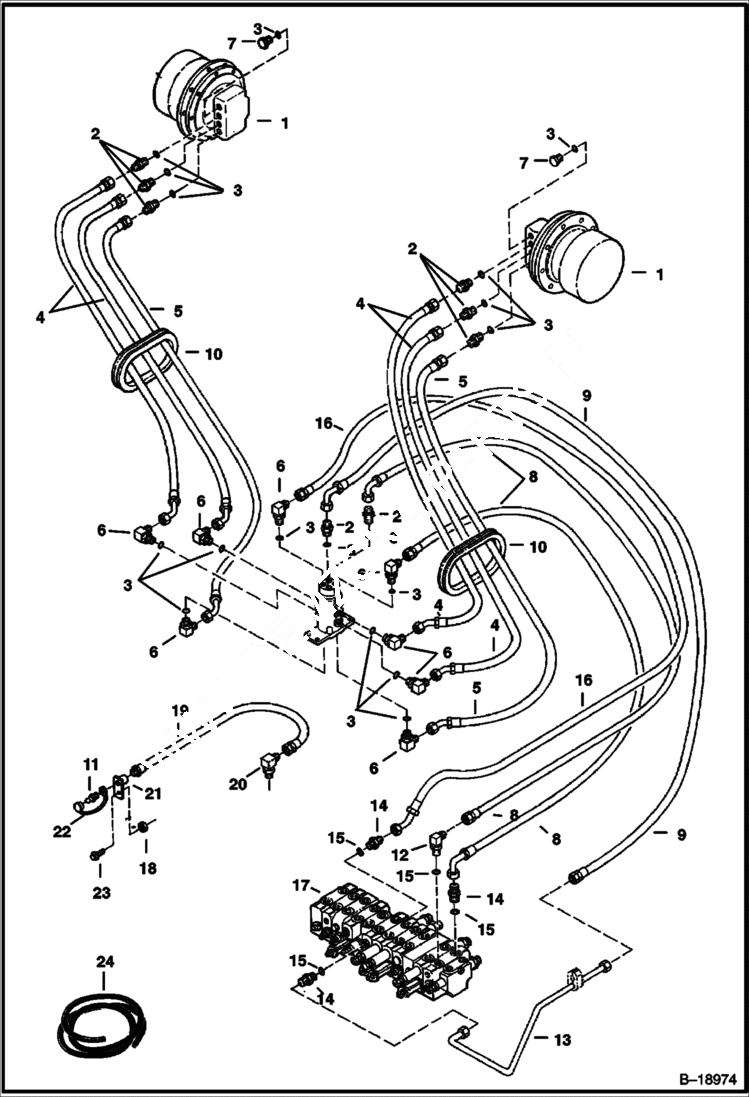

Запчасти Bobcat 322 HYDRAULIC CIRCUITRY (Valve to Travel Motors) (S/N 562313001 - 562319999) HYDRAULIC SYSTEM

1

6667336

MOTOR See Illustration TRAVEL MOTOR/ B14478 - Drive

2

15K5

FITTING W/Ref. 3 - flat boss face

2

ADAPTOR NLA - W/Ref. 3 - tapered boss face - Was 15KN00005B

2

97K6

O RING flared end

2

15KB0606

FITTING, HYD CONNECTOR W/Ref. 3 - flat boss face

3

79K6

O RING 10 flat boss face

3

99K6

O RING tapered boss face

4

6802324

HOSE Was 6801445 - C

5

6597887

HOSE

6

17K5

ELBOW W/Ref. 3 - flat boss face

6

ELBOW NLA - W/Ref. 3 - tapered boss face - Order 17KB606 - Was 17KN5 - A

6

97K6

O RING for flared end on 17KN5

6

17KB0606

FITTING W/Ref. 3 - flat boss face

7

PLUG NLA - W/Ref. 3 - tapered boss face - Was 24KN00005B - A

7

24K5

PLUG W/Ref. 3 - flat boss face

8

6801367

HOSE

9

6801364

HOSE

10

GROMMET NLA - Use 11'' of Ref. 24 - Was 6539666 - A

11

10H25

FITTING, GREASE 5

12

6801400

ELBOW

13

6801393

TUBE

14

6670593

CONNECTOR W/Ref. 3 - Was 743108B - B

15

O-RING NLA - Order Ref. 14 - Was 79K000008B - B

16

6801365

HOSE

17

6669612

VALVE See Illustration CONTROL VALVE ASSY./ B17546

18

4DM10

NUT Was 1DM00010B - B

19

6587516

HOSE

20

83F3

ELBOW 5

21

6586104

PLATE

22

6652943

COVER grease fitting

23

29CM1025

BOLT

24

6654139

MOULDING bulk - sold per foot
