Запчасти Bobcat 322 HYDRAULIC CIRCUITRY (Blade & Swing) (S/N 562320001 & Above, 517811001 & Above) HYDRAULIC SYSTEM

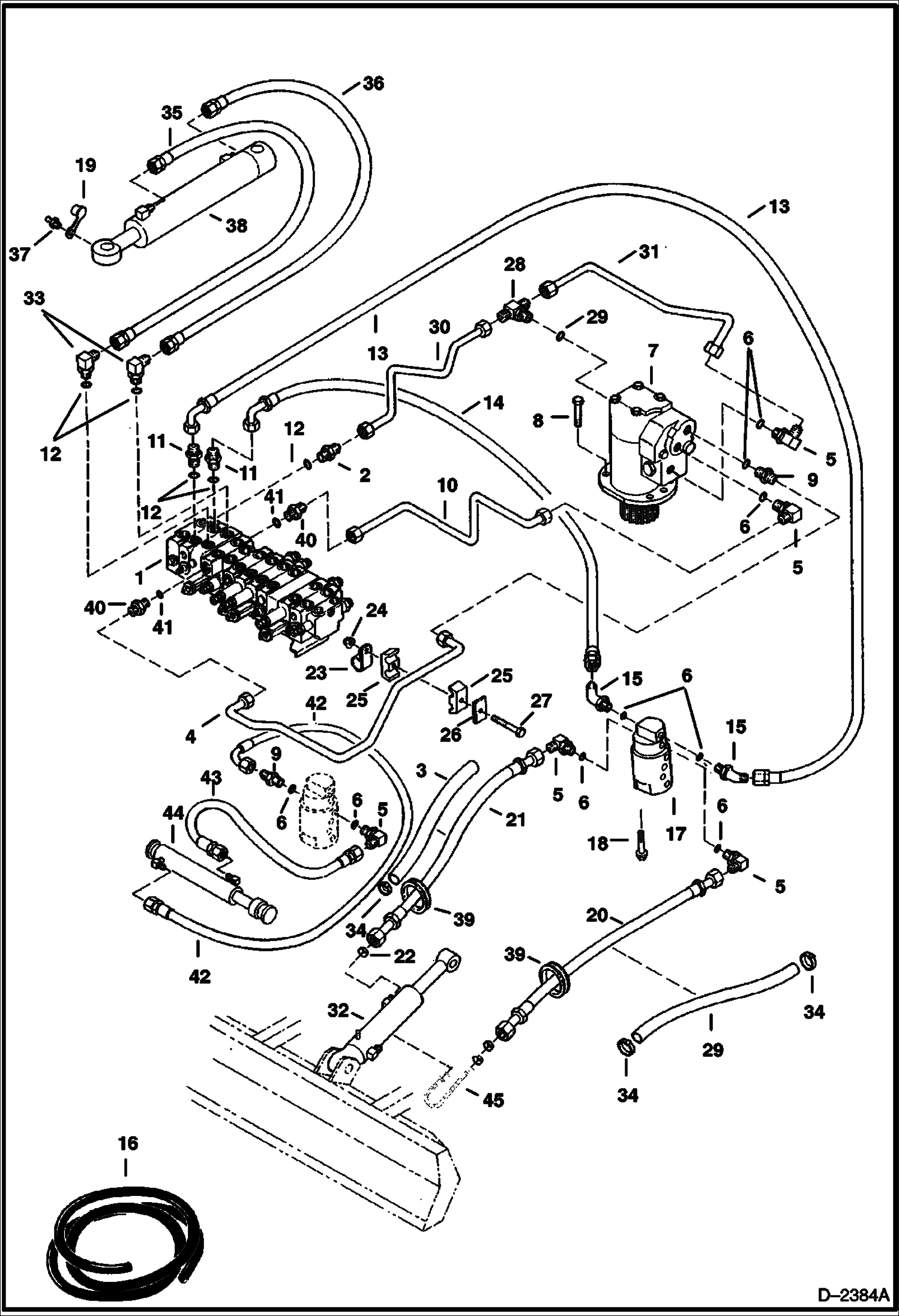

Схема запчастей Bobcat 322 - HYDRAULIC CIRCUITRY (Blade & Swing) (S/N 562320001 & Above, 517811001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6669612

VALVE See Illustration CONTROL VALVE ASSY./ B17546

2

6801398

CONNECTOR W/Ref. 12

3

COVER NLA - 25'' long - Order Ref. 16

4

6801383

TUBELINE

5

17K5

ELBOW W/Ref. 6 - flat boss face

5

ELBOW NLA - W/Ref. 6 - tapered boss face - Order 17KB606 - Was 17KN5 - A

5

97K6

O RING for flared end on 17KN5

5

17KB0606

FITTING W/Ref. 6 - flat boss face

6

79K6

O RING 10 flat boss face

6

99K6

O RING tapered boss face

7

6669661

SWING MOTOR

8

1CM1040

BOLT

9

15K5

FITTING W/Ref. 6 - flat boss face

9

ADAPTOR NLA - W/Ref. 6 - tapered boss face - Was 15KN00005B - A

9

97K6

O RING flared end

9

15KB0606

FITTING, HYD CONNECTOR W/Ref. 6 - flat boss face

10

6801382

TUBE

11

743108

FITTING W/Ref. 12

12

79K8

O RING 10 flat boss face

12

99K8

O-RING tapered boss face

13

6618196

HOSE

14

6804280

HOSE Was 6587277 - A

15

18K5

ELBOW W/Ref. 6 - flat boss face

15

FTG HYD Elbow 45 NLA - W/Ref. 6 - tapered boss face - Was 18KN00005B - A

15

97K6

O RING flared end

15

18KB0606

FITTING, HYD ELBOW W/Ref. 6 - flat boss face

16

6649389

HOSE COVER Bulk - Sold Per Foot

17

6800517

SWIVEL JOINT See Illustration HYDRAULIC CIRCUITRY/ D2200

18

29CM1025

BOLT

19

6652943

COVER grease fitting

20

6597885

HOSE W/Cover

21

6597884

HOSE W/Cover

22

6586430

ORIFICE

23

30H21

CLAMP 10

24

43DM6

NUT Was 42DM00006B - B

25

6578870

CLAMP

26

6535422

COVER

27

1CM640

SCREW

28

6801405

TEE

29

COVER NLA - 30'' long - Order Ref. 16

30

6801381

TUBE

31

6801380

TUBE

32

CYLINDER See Illustration BLADE CYLINDER/ B17547 - blade

33

1300059

ELBOW W/Ref. 12 - flat boss face

33

FTG HYD ELBOW 90 NLA - W/Ref. 12 - tapered boss face - Was 6804301 - A

33

97K6

O RING flared end

33

17KB0608

FITTING, HYD ELBOW W/Ref. 12 - flat boss face

34

6665221

CABLE TIE Metal - Requires Tool

35

6534012

HOSE

36

6801712

HOSE

36

6804280

HOSE 90#end at cylinder

37

10H25

FITTING, GREASE 5

38

6803043

CYLINDER See Illustration SWING CYLINDER/ C3317 - Swing - Was 6801176 - A

39

6511983

GROMMET

40

6670593

CONNECTOR W/Ref. 41

41

SEAL NLA - Order Ref. 40

42

6578173

HOSE base end

43

6618193

HOSE rod end

44

6805078

CYLINDER See Illustration TRACK EXPANSION CYLINDER/ MS1027 - Track Expansion

45

6805851

TUBE
