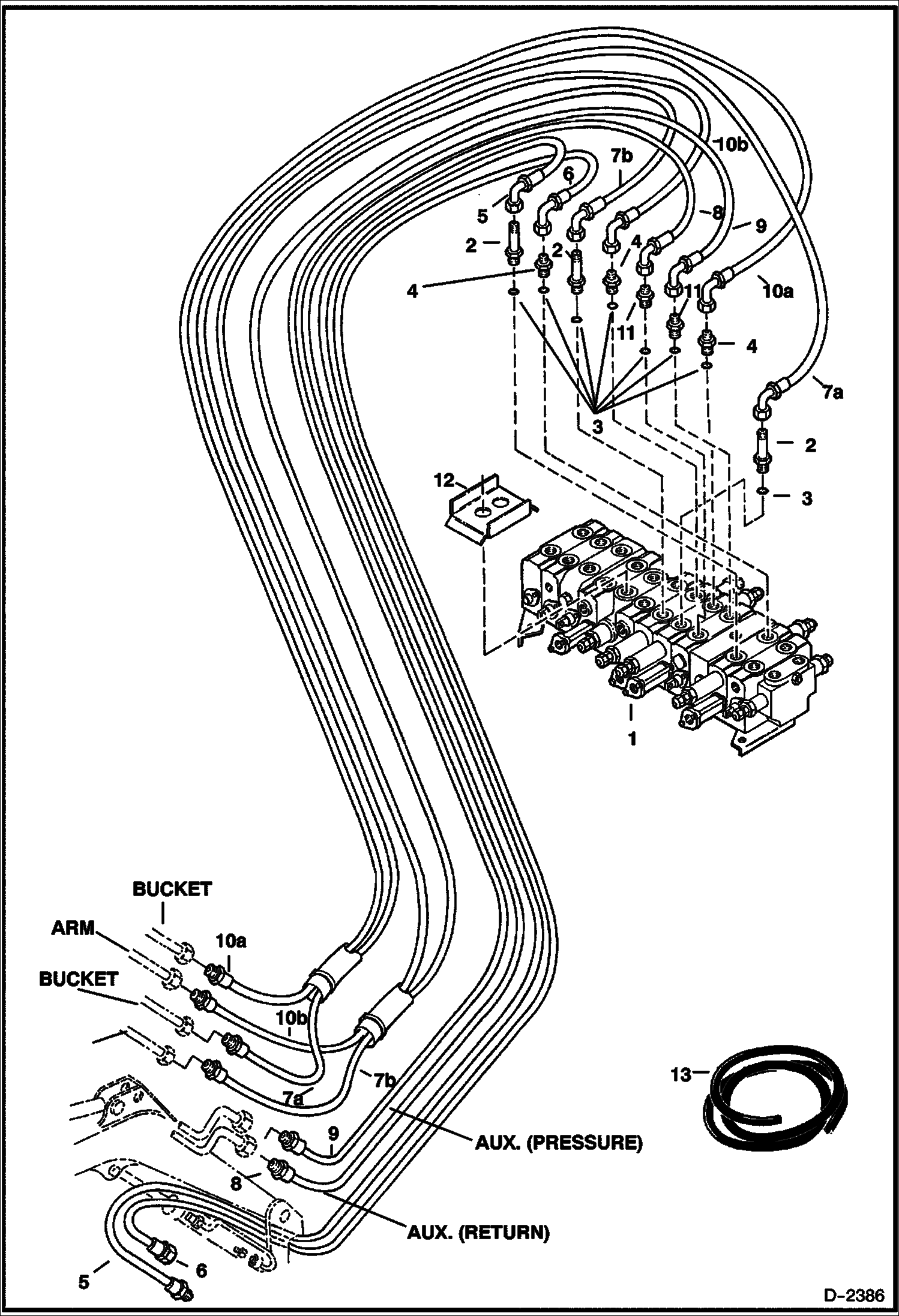

Запчасти Bobcat 322 HYDRAULIC CIRCUITRY (Valve to Arm to Boom to Bucket to Auxiliary) HYDRAULIC SYSTEM

1

6669612

VALVE See Illustration CONTROL VALVE ASSY./ B17546

2

16KB0608

FITTING, HYD CONNECTOR W/Ref. 3 - Was 6587170 - A

3

79K8

O RING 10 flat boss face

3

99K8

O-RING tapered boss face

4

743108

FITTING W/Ref. 3 - flat boss face

4

15KB0608

FITTING, HYD CONNECTOR W/Ref. 3 - tapered boss end - Was 6715699 - A

4

97K6

O RING flared end

5

6597889

HOSE

6

6597890

HOSE

7

6801376

HOSE

8

6587284

HOSE

9

6587285

HOSE

10

6801377

HOSE

11

15K6

ADAPTER W/Ref. 3 - flat boss face

11

15KB0808

FITTING, HYD CONNECTOR W/Ref. 3 - tapered boss end - Was 15KN00006B - A

11

97K8

O-RING flared end

12

6801678

GUIDE Hose

13

6656155

HOSE COVER bulk - sold per foot
