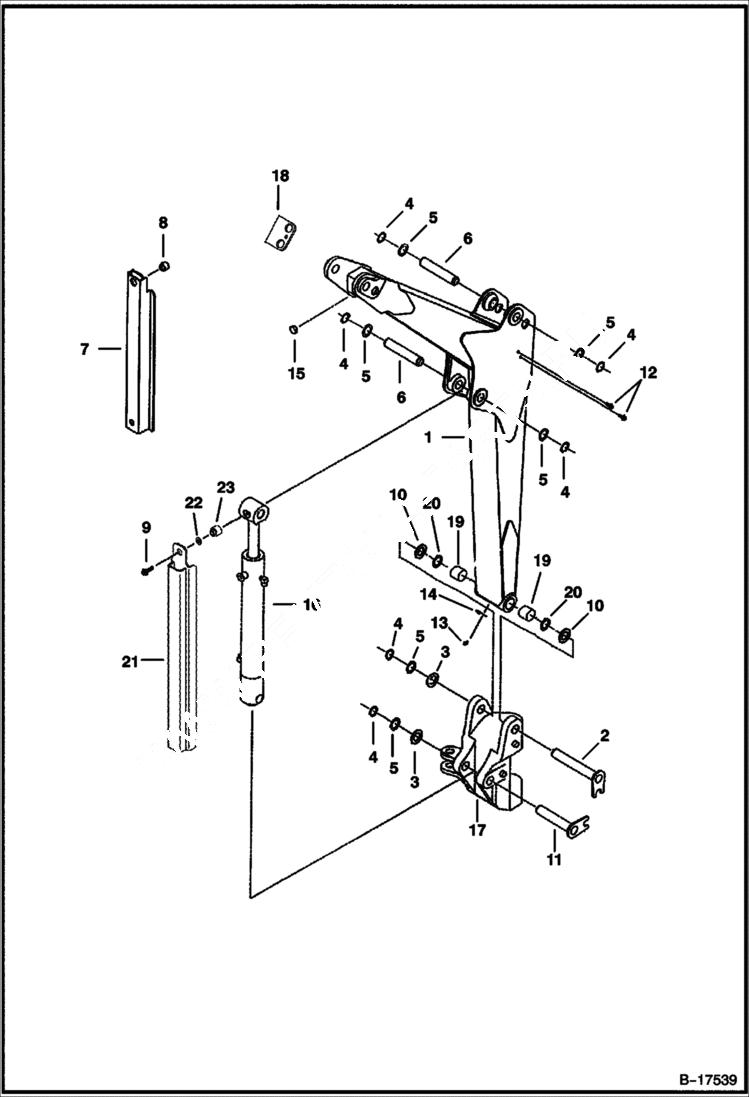

Запчасти Bobcat 322 BOOM WORK EQUIPMENT

1

BOOM NLA - W/Ref. 19 - Order 6802224 - Was 6589136 - A

1

6802224

BOOM W/Ref. 19

2

6589092

PIN

3

1EM270

WASHER

4

6512132

SNAP RING

5

6589699

WASHER

6

6589067

PIN

7

SHIELD NLA - Order 7130862 shield - also order Ref. 22 & 23 - Was 6589356 - A

8

6587472

SPACER for Use W/Ref.7 (NLA/6596493 shield)

9

59CM1035

BOLT

10

6533856

SHIM

11

6589643

PIN

12

29CM820

SCREW

13

10H25

FITTING, GREASE 5

14

6652943

COVER grease fitting

15

6597572

BUMPER

16

CYLINDER See Illustration BOOM CYLINDER/ B14213 - Boom

17

SWING POST See Illustration SWING POST/ B17540

18

6589353

PLATE Welded on the boom

19

6587765

BUSHING, PRESS FIT Use W/Boom 6589136 - 1.56'' (39,75mm) long

19

6802217

BUSHING, PRESS FIT Use W/Boom 6802224 - 1.75'' (44,5mm) long

20

6653534

SEAL

21

7130862

SHIELD

22

7135076

SPRING WASHER for Use W/Ref. 21

23

7131110

SPACER for Use W/Ref. 21
