Запчасти Bobcat 322 FRONT IDLER (S/N 562320001 & Above, 517811001 & Above UNDERCARRIAGE

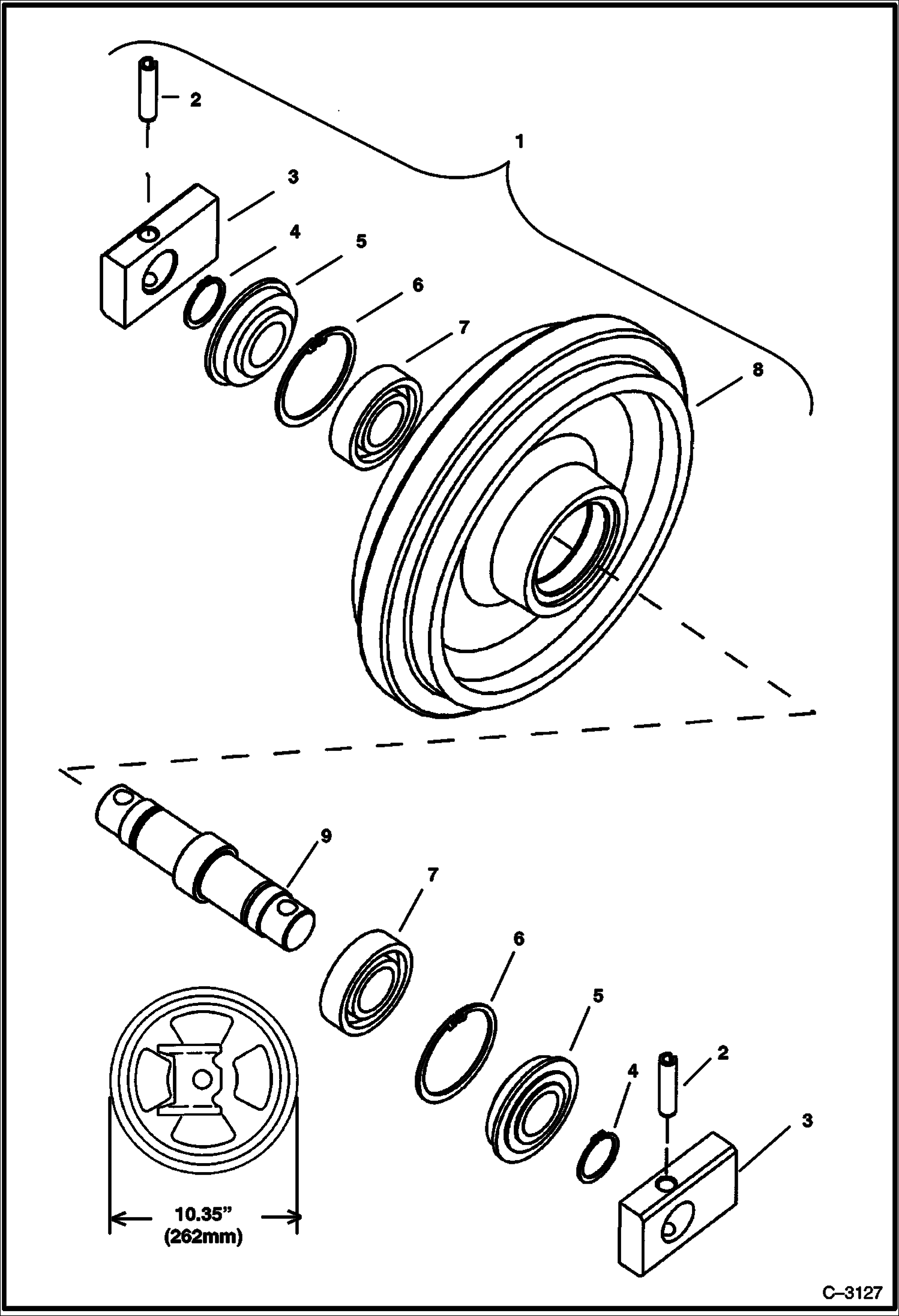

Схема запчастей Bobcat 322 - FRONT IDLER (S/N 562320001 & Above, 517811001 & Above UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

IDLER NLA - Assy. - Ref. 2-9 - Order 6807906 - Was 6805220 - A

2

2JM1045

ROLL PIN

3

7117043

GUIDE BLOCK Was 6589010 - A

4

5JM30

SNAP RING

5

6652379

SEAL

6

7JM62

SNAP RING

7

853189

BEARING

8

IDLER NLA - Order 6807906 - Was 6801581 - A

9

SHAFT NLA - Order 6807906 - Was 6589013 - A

Выбрано товаров: 9
