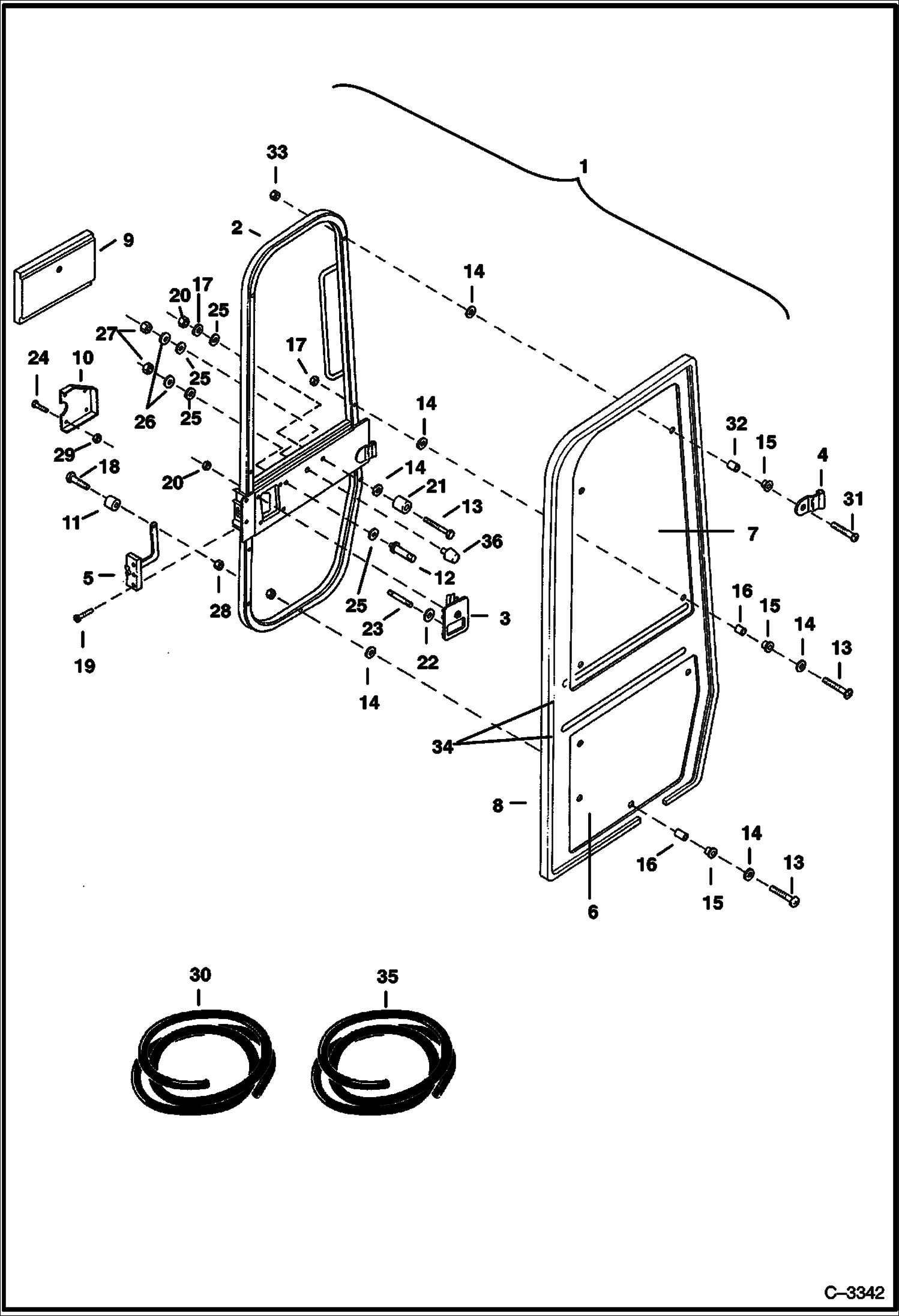

Запчасти Bobcat 322 OPERATOR CAB (Door) (S/N 562313000-19999, 562320001-20448 & 517811001-11628) MAIN FRAME

1

DOOR ASSY. See BTIE-061 - NLA - W/Ref. 2-21 - Order 6805226- Was 6628863 - A

2

DOOR See BTIE-061 - NLA - Weldment - Order 6805226 - Was 6628864 - A

3

6661631

LATCH Outside

3

6587458

KEY

4

6628872

HINGE Top

5

6664572

LATCH Inside - With Handle

6

6664573

GLASS Bottom

7

6664574

GLASS Top

8

SEAL NLA - 162'' (4115mm) long - Order Ref. 30

9

INSULATION NLA - Was 6667841 - A

10

6664576

COVER Door Latch

11

6664092

KNOB Door Latch

12

RETAINER NLA - Door Hold Open - Was 6628873 - A

12

6800844

RETAINER Door Hold Open

13

6664066

BOLT 2''(51mm) Long

14

6664090

WASHER 1'' (25mm) OD

15

6800788

GROMMET

16

6664086

SPACER 3/8'' (9,5mm) long

17

7031515

NUT Acorn 1/4'' - Was 6664056 - A

17

6667837

NUT hex 1/4''

18

85G1010

SCREW

19

6648410

BOLT

20

85D4

NUT 5

21

6664569

BUMPER Bumper

22

61D6

NUT 5 Was 6648418 - B

23

6667838

BOLT Striker

24

6667839

BOLT Self-tapping - Use W/Ref. 29

24

26GM6016

SCREW Self-Tapping - Used when Ref. 29 is not used - later style - Was 6589675 - A

25

6648397

WASHER

26

4E5

WASHER

27

61D5

NUT

28

12D10

NUT

29

6664570

NUT Clip - early machines only

30

6664088

SEAL Bulk - Sold Per Foot

31

6667842

BOLT 2-1/4'' (957mm) long

32

6667840

SPACER 3/8'' (9,5mm) long

33

6667843

NUT 5/16''

34

SEAL NLA - 48'' (1219mm) long - Order Ref. 35

35

6654162

SEAL Bulk - Sold Per Foot

36

6733616

BUMPER Was 6649040 - A
