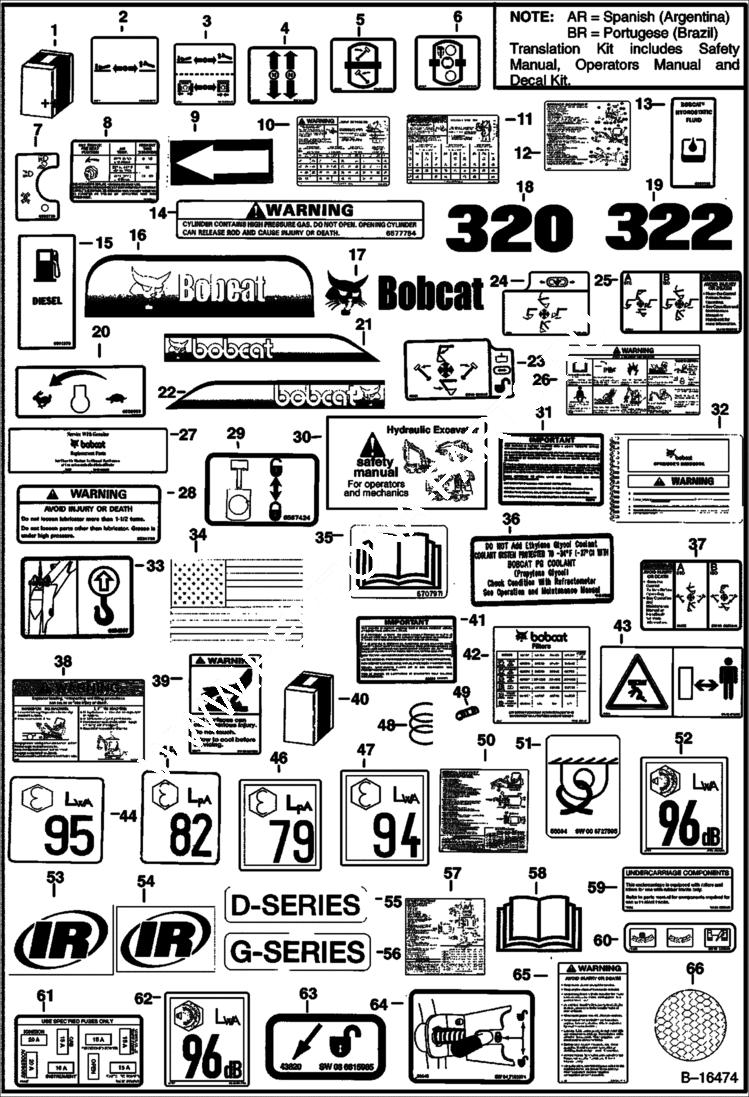

Запчасти Bobcat 322 DECALS ACCESSORIES & OPTIONS

1

DECAL KIT NLA - Order components

2

6808177

DECAL Blade - 320D

3

6808176

DECAL Blade - 322D

4

6808872

DECAL drive - Was 6808179 - A

5

6808870

DECAL swing offset - Was 6808186 - A

6

7115386

DECAL VALVE Valve valve - Was 6808187 - A

7

6588730

DECAL Lights

7

6805815

EDGE, CUTTING WELD ON BEVELED 39.25'' front - weld-on - 39'' bucket

8

6589058

DECAL Pre-heat

9

6533899

DECAL Arrow

10

6808183

DECAL Lift Chart - 322

11

6808184

DECAL Lift Chart - 320

12

DECAL NLA - order Ref. 50 or 57

13

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

14

6577754

DECAL, WARNING 5 gas spring

15

6589739

DECAL Diesel

16

6812889

DECAL Logo - Rear - D Series

16

6816986

DECAL Logo - Rear - G Series

17

6808543

DECAL D Series

17

6817083

DECAL G Series

18

6806159

DECAL Model 320

19

6806160

DECAL Model 322

20

6539688

DECAL Speed

21

6808518

DECAL Logo - RH - D Series

21

7156438

DECAL, LOGO BOBCAT RH - G Series - Was 6816988 - A

22

6808519

DECAL Logo - LH - D Series

22

7156437

DECAL, LOGO BOBCAT LH - G Series - Was 6816987 - A

23

6808343

DECAL LH - ISO Controls

24

6808346

DECAL RH - Standard/ISO Controls

24

6808344

DECAL RH - ISO Controls

25

6808346

DECAL Standard/ISO Controls

26

6807776

DECAL Warning - Was 6808180 - A

27

6565200

DECAL, FILTER

28

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

29

6809713

DECAL Warning swing lock

30

6901951

MANUAL EMI SAFETY - EXCAVATOR Was 6901071 - A

31

DECAL NLA - Spark Arrester Muffler - Was 6560573 - A

32

6901016

MANUAL Operation & Maintenance

33

6594897

DECAL Boom Lifting

34

6732026

DECAL US Flag

35

6707971

DECAL Operators Manual

36

6708929

DECAL, COOLANT propylene glycol

37

6808345

DECAL LH - Standard/ISO Controls

38

6808185

DECAL Warning

39

6809832

DECAL warning hot/fan - Was 6804232 - A

40

6808348AR

KIT 320 Translation - SEE NOTE

40

6808348BR

KIT 320 Translation - SEE NOTE

40

6808349AR

KIT 322 Translation - SEE NOTE

40

6808349BR

KIT 322 Translation - SEE NOTE

41

6804233

DECAL Warning

42

DECAL NLA - Filters - Was 6808182 - A

43

6713507

DECAL stay clear - Was 6813507 - D

44

6534818

DECAL noise - Europe only

45

6579398

DECAL noise - Europe only

46

6809736

DECAL noise - Europe only - Was 7181371 - A

47

6809737

DECAL noise - Europe only

48

6558309

WIRE ROPE bulk - use 48'' - sold per foot

49

6558310

SLEEVE

50

7104075

DECAL service schedule - filters - Was 6815092 - A

51

6727595

DECAL Was 6595014 - A

52

6812566

DECAL noise

53

DECAL NLA - IR - side on upperstructure - Was 6732421 - A

54

DECAL NLA - IR Logo - Was 6732495 - A

55

6808641

DECAL D Series

56

6817056

DECAL G series

57

7104075

DECAL service schedule - Was 6817082 - A

57

7104075

DECAL service schedule - Was 6817082 - A

58

6901071

HANDBOOK operators - D Series

58

6903819

HANDBOOK operators - G Series - Was 6902747 - A

59

6589129

DECAL rubber - rollers/idlers

60

6808480

DECAL remote grease

61

6808832

DECAL fuse

62

6812566

DECAL sound - power

63

6815985

DECAL latch

64

7103874

DECAL latch

65

6815915

DECAL warning

66

7106627

DECAL, REFLECTIVE reflective
