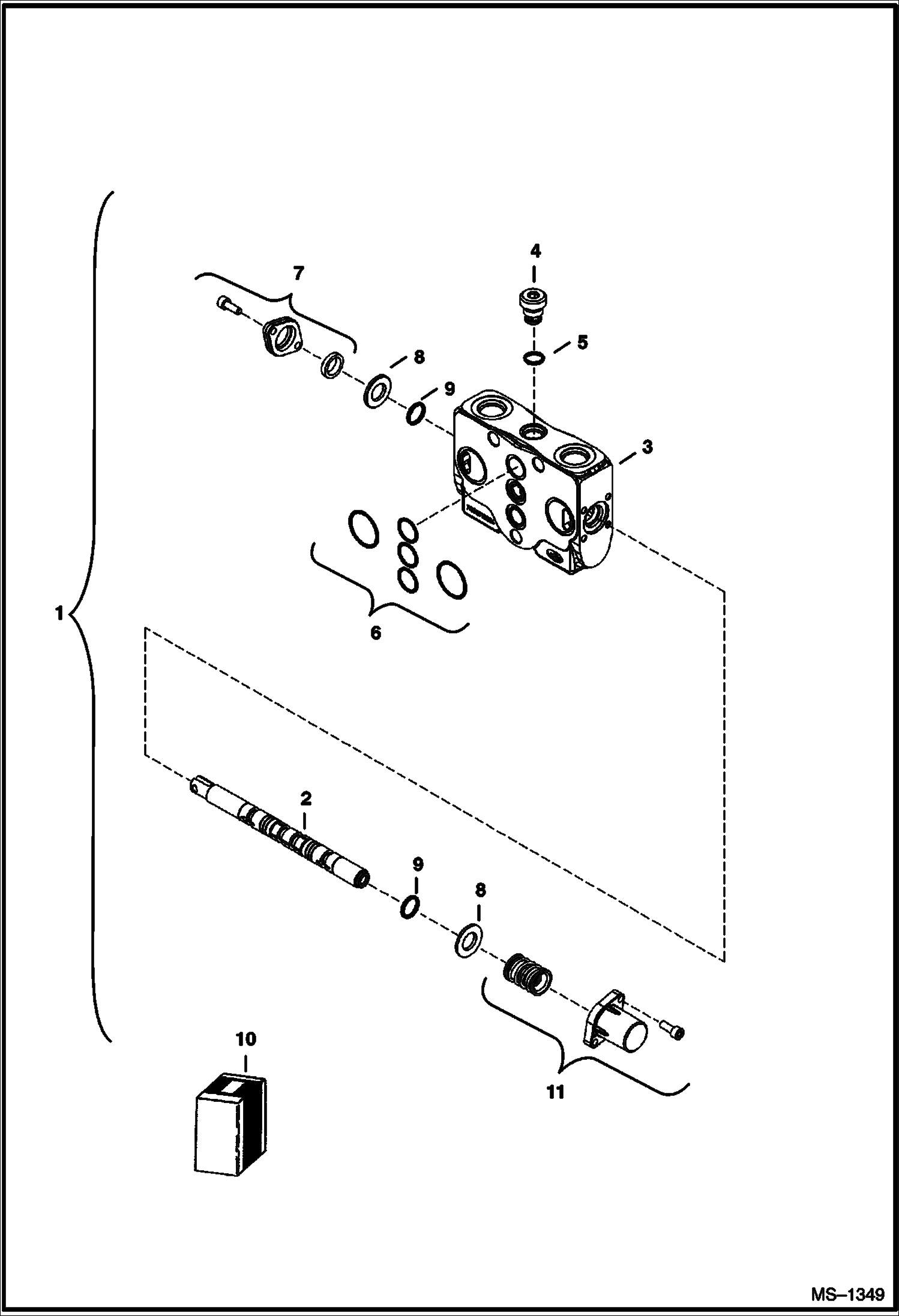

Запчасти Bobcat 322 VALVE SECTION (Blade) (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

1

6680085

VALVE assy - W/Ref. 2 - 10

2

SPOOL NSS - order Ref. 1

3

BLOCK NSS - order Ref. 1

4

6680092

VALVE, LOCK LOAD assy - W/Refs. 5

5

O-RING

6

6680066

KIT

7

6680097

KIT

8

O-RING NSS - order Ref.9

9

SEAL NSS

10

6680130

SEAL KIT section

11

6693138

KIT - Was 6680109 - A
