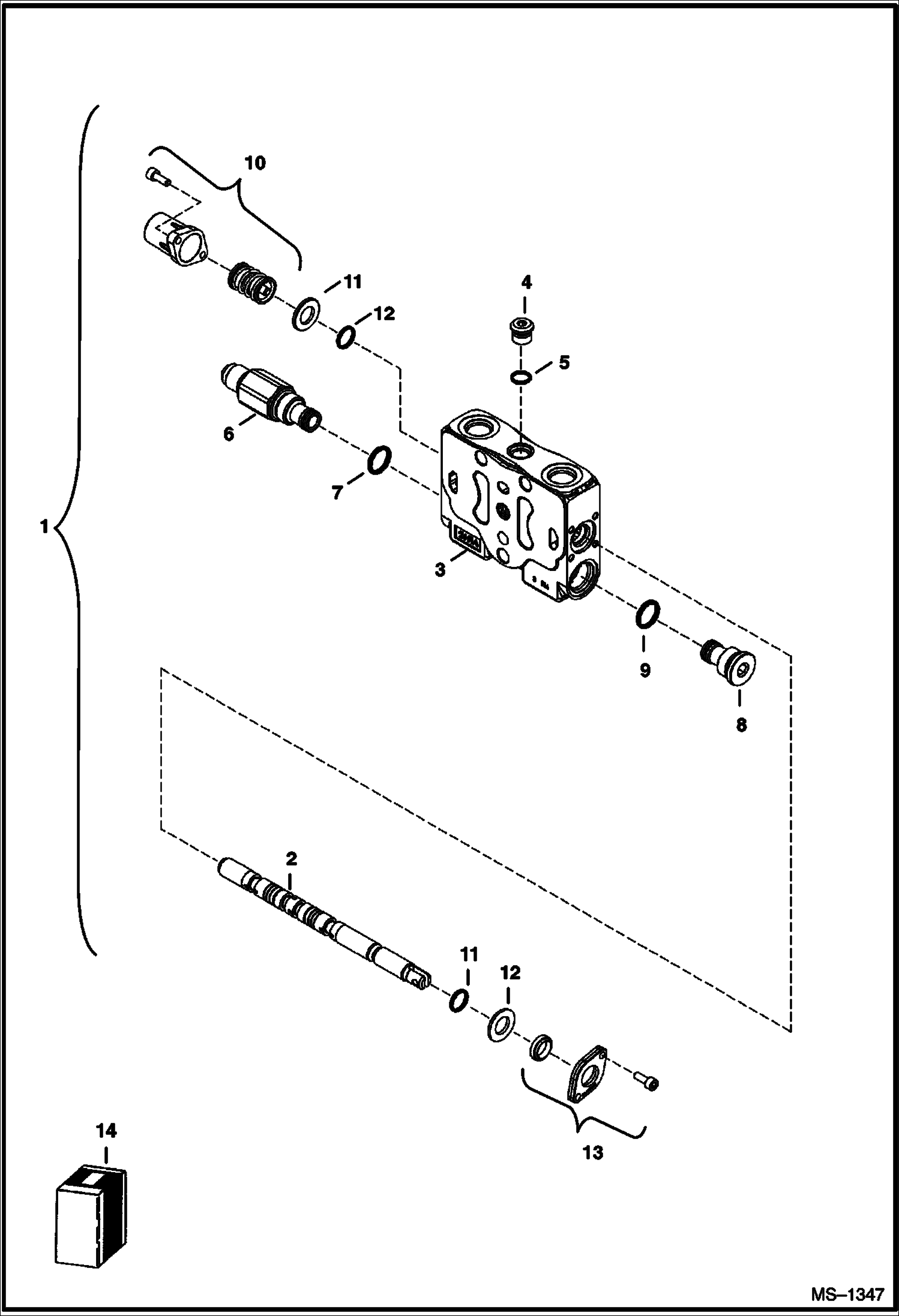

Запчасти Bobcat 322 VALVE SECTION (L.H. Travel) (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

1

6680090

VALVE assy - Ref. 2 - 8

2

SPOOL NSS - order Ref. 1

3

BLOCK NSS - order Ref. 1

4

6680093

PLUG assy - W/Ref. 5

5

O-RING

6

6680059

VALVE assy - W/Ref. 7

7

O-RING

8

6680057

PLUG

9

O-RING

10

6680068

KIT

11

SEAL NSS

12

O-RING NSS

13

6680097

KIT

14

6680128

SEAL KIT section
