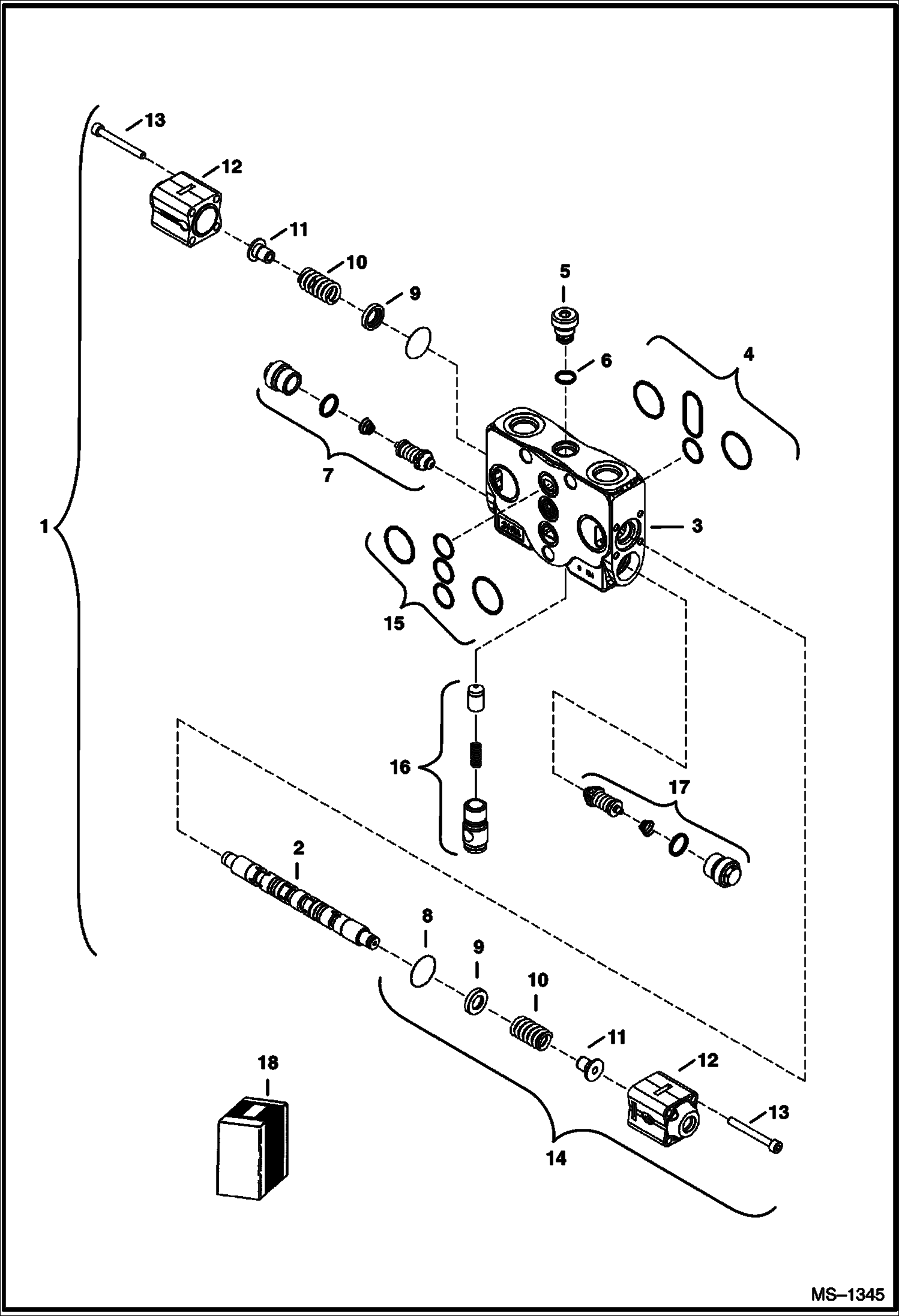

Запчасти Bobcat 322 VALVE SECTION (Bucket) (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

1

6680088

VALVE assy - Ref. 2 - 17

2

SPOOL NSS - order Ref. 1

3

BLOCK NSS - order Ref. 1

4

6680064

KIT

5

6680092

VALVE, LOCK LOAD assy - W/Ref. 6

6

O-RING

7

6680065

VALVE assy

8

O-RING NSS

9

SEAL NSS

10

SPRING NSS

11

SEAL NSS

12

BLOCK NSS

13

SCREW NSS

14

6680096

SECTION KIT W/Ref. 8 - 13

15

6680066

KIT

16

6680091

VALVE ASSY assy

17

6685304

VALVE assy - 3400 PSI - port relief/anti cav - Was 6680061 - A

18

6680126

SEAL KIT section
