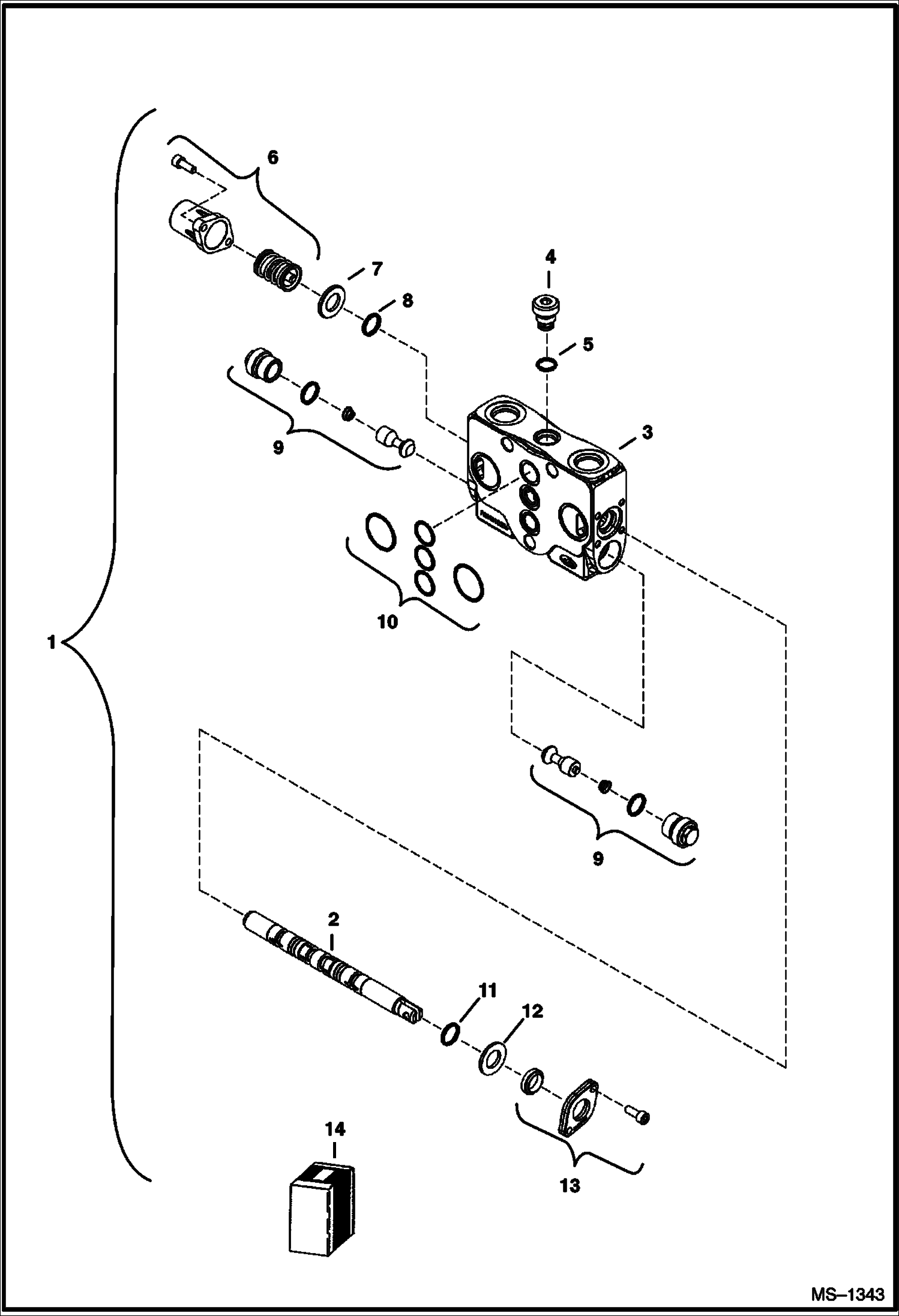

Запчасти Bobcat 322 VALVE SECTION (Boom Swing) (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

1

6680036

VALVE section assy - Refs. 2

2

SPOOL NSS - order Ref. 1

3

BLOCK NSS - order Ref. 1

4

6680092

VALVE, LOCK LOAD assy - W/Ref. 5

5

O-RING

6

6680068

KIT

7

SEAL NSS - order Ref. 14

8

O-RING NSS - order Ref. 14

9

6680247

VALVE assy.

10

6680066

KIT

11

O-RING NSS - order Ref. 14

12

SEAL NSS - order Ref. 14

13

6680097

KIT

14

6680124

SEAL KIT section
