Запчасти Bobcat 322 VALVE SECTION (Swing) (S/N 223812346 & Below, 223514376 & Below) HYDRAULIC SYSTEM

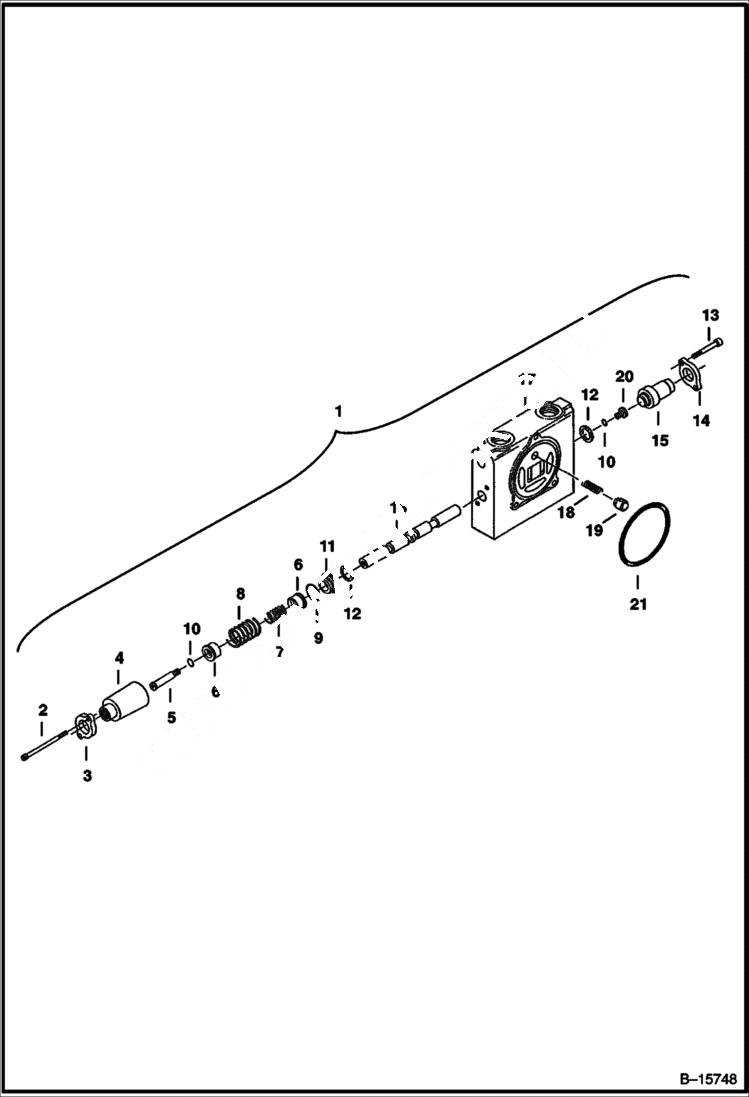

Схема запчастей Bobcat 322 - VALVE SECTION (Swing) (S/N 223812346 & Below, 223514376 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6676352

VALVE Section - Swing Motor - W/Refs. 2-21

2

6665439

SCREW

3

6665542

PLATE

4

6668964

END COVER

5

6668966

BOLT

6

SEAT NLA - Spring - order (2) 6677997 seat - Was 6668970 - A

6

6677992

VALVE SECTION

7

6668968

SPRING Inner

8

6668969

SPRING Outer

9

6665435

O-RING

10

79K3

O RING 10

11

6665443

RETAINER

12

25K20026

O RING 10 Was 6665432 - B

13

SCREW NLA - Was 11G000424B - A

14

6665442

PLATE

15

6668965

END COVER

16

SPOOL NSS - Order Ref. 1

17

HOUSING NSS - Order Ref.1

18

6630966

SPRING

19

6630965

POPPET

20

6676359

PLUG

21

58K228

O RING 10 Was 6646691 - B

Выбрано товаров: 22
