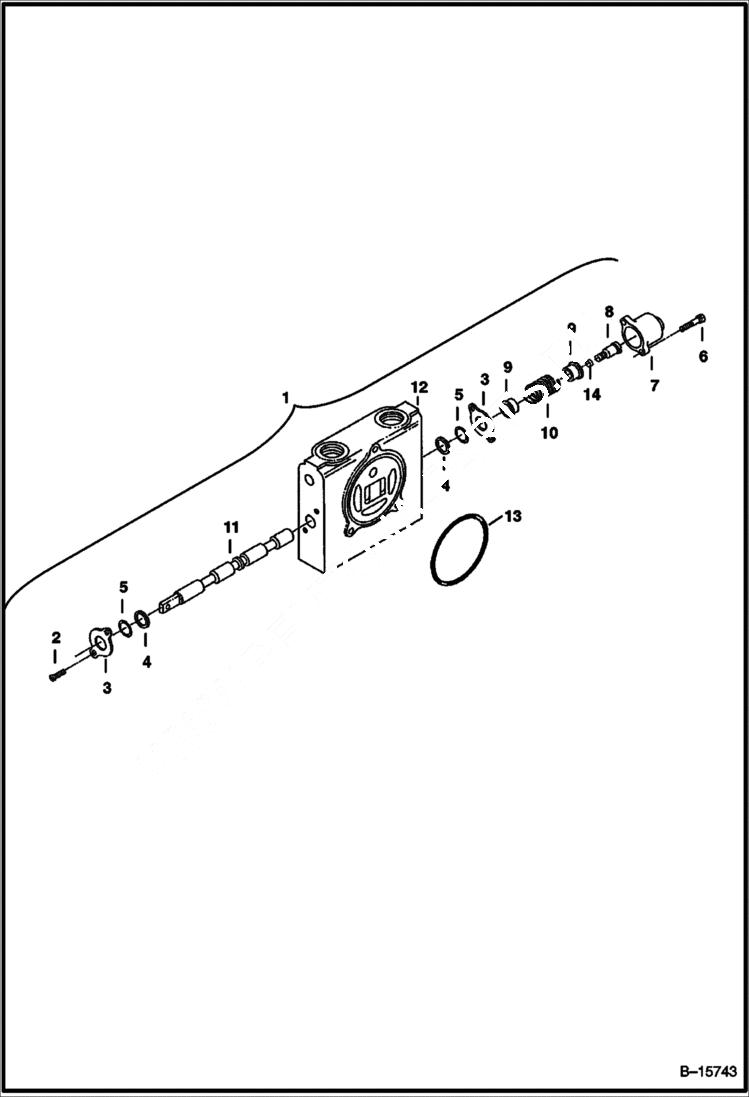

Запчасти Bobcat 322 VALVE SECTION (R.H. Travel) (S/N 223812346 & Below, 223514376 & Below) HYDRAULIC SYSTEM

1

6676349

VALVE Section - RH Travel - W/Refs. 2-13

1

6670568

VALVE Section - Auxiliary - W/Refs. 2-13

2

6671684

SCREW Was 93G000407B - B

3

948016

PLATE

4

6668972

O-RING

5

948021

SEAL wiper

6

73G412

SCREW Was 11G-412 - B

7

948192

CAP

8

BOLT NLA - order 6679106 bolt, 6668963 spring seat & 6679108 seat - Was 948019 - A

8

6679106

BOLT

9

NLA - Spring

9

6668963

SEAT Spring - yellow

9

6679108

SEAT Spring - blue

10

948018

SPRING

11

SPOOL NSS - Order Ref. 1

12

HOUSING NSS - Order Ref. 1

13

58K228

O RING 10 Was 6646691 - B

14

6676357

SPACER
