Запчасти Bobcat 322 MANIFOLD ASSY (S/N 223811992 & Above, 223513431 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

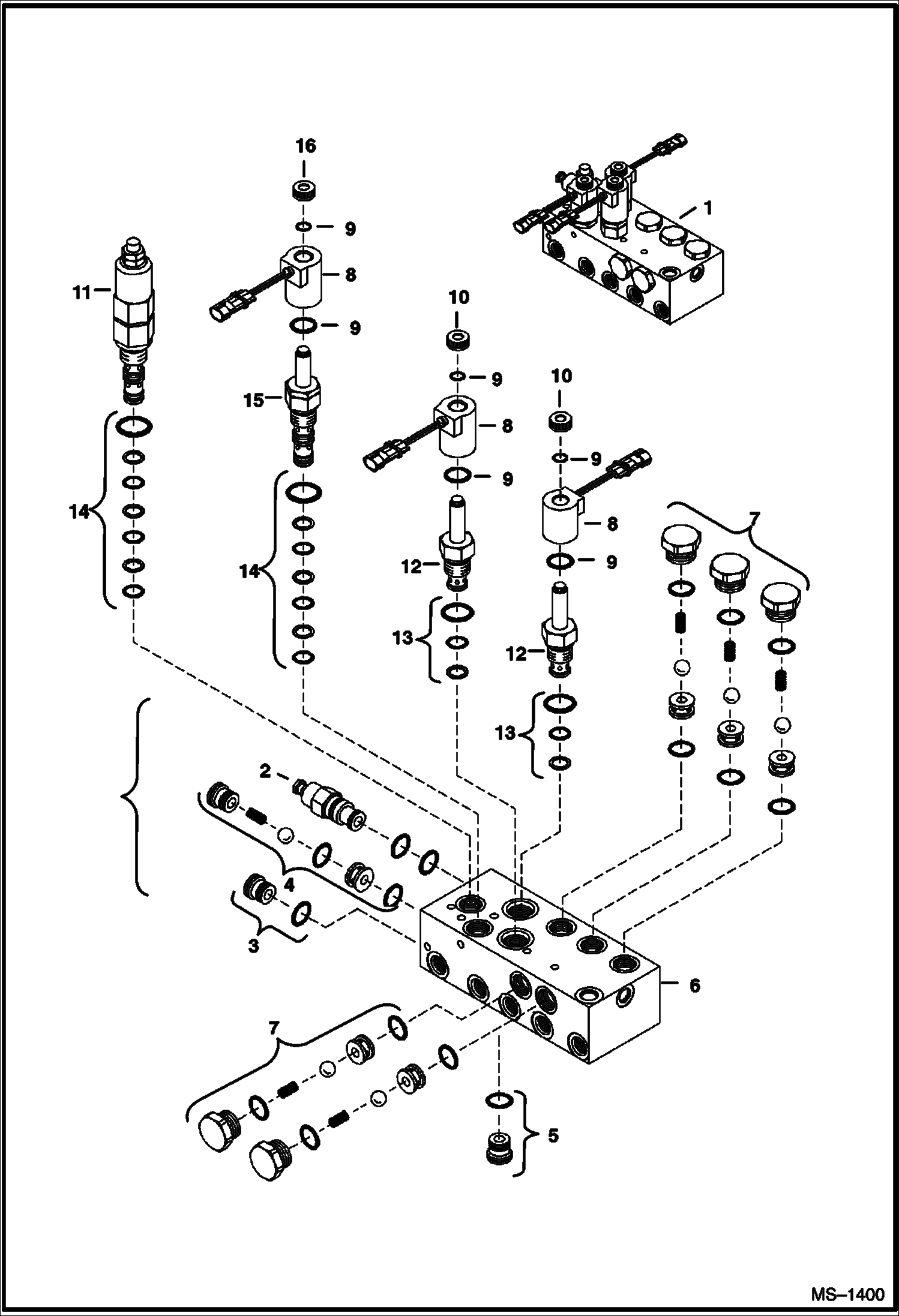

Схема запчастей Bobcat 322 - MANIFOLD ASSY (S/N 223811992 & Above, 223513431 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6678059

MANIFOLD assy. - W/Ref. 2 - 16

1

6679887

MANIFOLD assy. - W/Ref. 2 - 16

1

6685833

MANIFOLD assy - Ref. 2 -16

2

6678991

VALVE pressure reducing

2

6686165

VALVE

3

6678992

PLUG assy.

4

6678990

VALVE assy.

5

6678993

PLUG assy.

6

BLOCK NSS - order Ref. 1

7

6678985

PLUG assy.

8

6678984

COIL

9

6679509

O-RING

10

6679077

NUT

11

6678989

VALVE assy.

11

6679033

VALVE assy. - Was 6679511 - A

12

6678987

VALVE two speed/system by-pass

13

6679508

SEAL KIT

14

6679078

SEAL KIT

15

6678988

VALVE joystick lock-out

16

6679076

NUT

Выбрано товаров: 20
