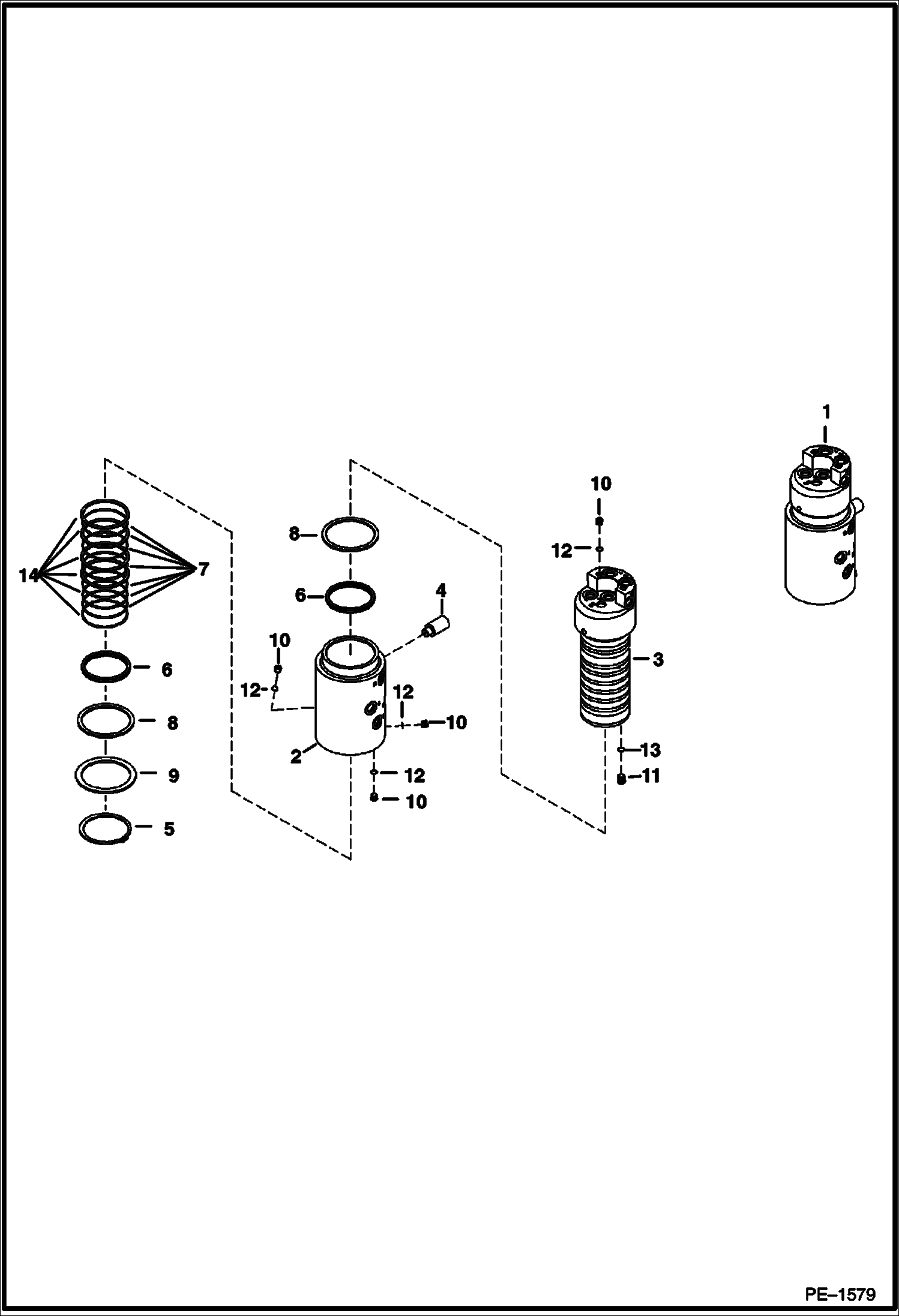

Запчасти Bobcat 322 SWIVEL JOINT (320 Only) (S/N 223812347 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

1

6810263

SWIVEL JOINT W/Ref. 2-13

2

HOUSING NLA - Was 6807282 - A

3

6810264

ROTOR

4

6805212

STUD

5

6662076

RING

6

7100535

SEAL Was 6810610 - A

7

6810813

SEAL, OIL 2 pc seal - Was 6669254 - A

8

6674221

WASHER

9

6805213

WASHER backing

10

6809197

PLUG W/Ref. 12

11

90K3

PLUG W/Ref. 13 - Was 90KV3 - D

12

95K3

O'RING

13

95K4

O-RING

14

6679248

RING
