Запчасти Bobcat 322 HYDRAULIC CIRCUITRY (ISO/Standard) HYDRAULIC SYSTEM

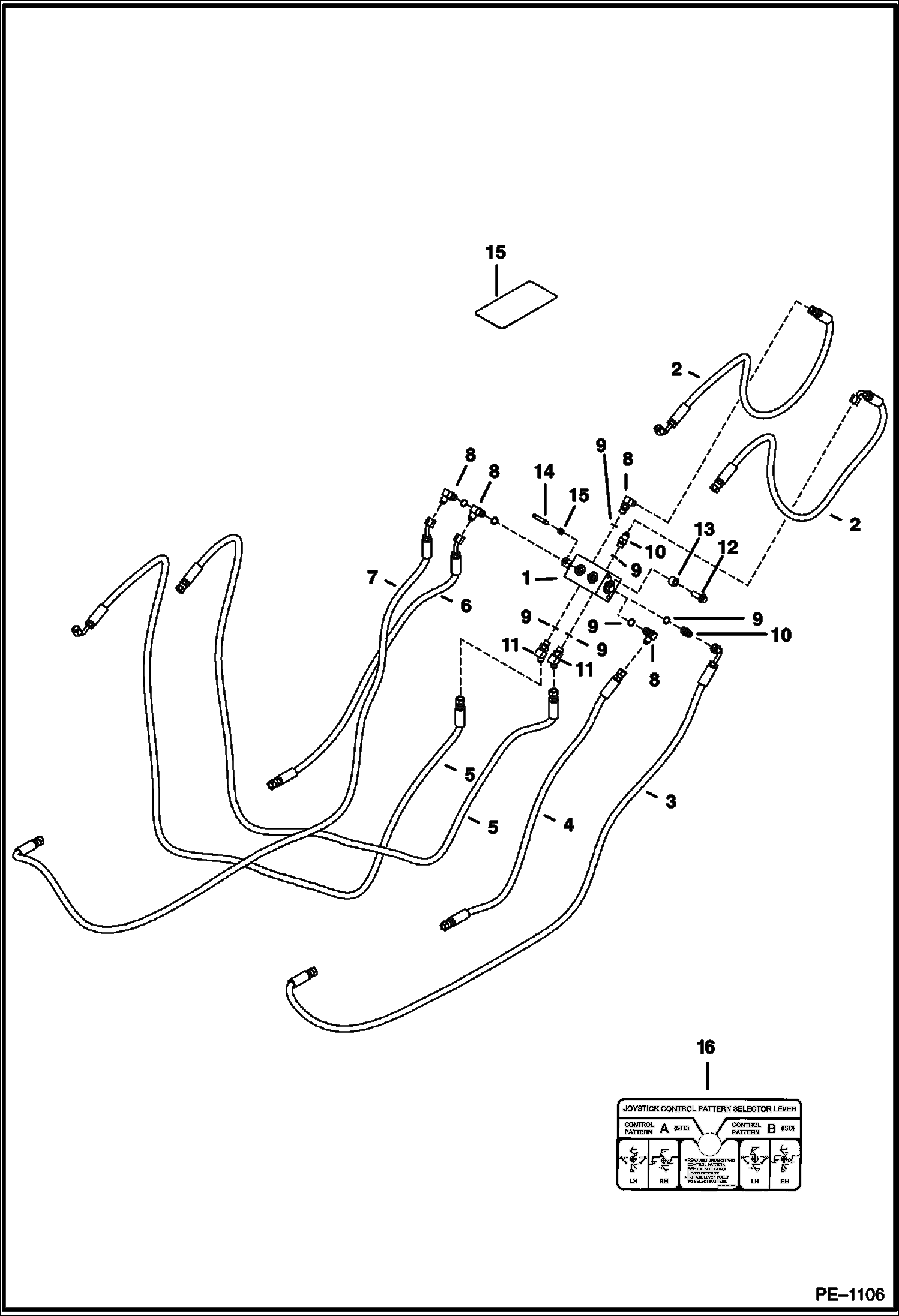

Схема запчастей Bobcat 322 - HYDRAULIC CIRCUITRY (ISO/Standard) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353 ASSY

2

7106602

HOSE Was 6806086 - A

3

7106605

HOSE Was 6808356 - A

4

7106604

HOSE Was 6808357 - A

5

7106603

HOSE Was 6808152 - A

6

7106607

HOSE Was 6808359 - A

7

7106606

HOSE Was 6808155 - A

8

17KB0404

FTG HYD ELBOW 90 W/Ref. 9 - Was 17KV00003B - A

8

97K4

O'RING flare end

9

99K4

O'RING

10

15KB0404

FTG HYD S Connector W/Ref. 9

10

97K4

O'RING flare end

11

18KB0404

FTG HYD ELBOW 45 W/Ref. 9 - Was 18KN00003B - A

11

97K4

O'RING flare end

12

29CM825

BOLT

13

6807444

SPACER

14

6597403

HANDLE

15

1DM6

NUT Was 4DM6 - A

16

6815957

DECAL ISO/STD Pattern - Was 6804276

Выбрано товаров: 19
