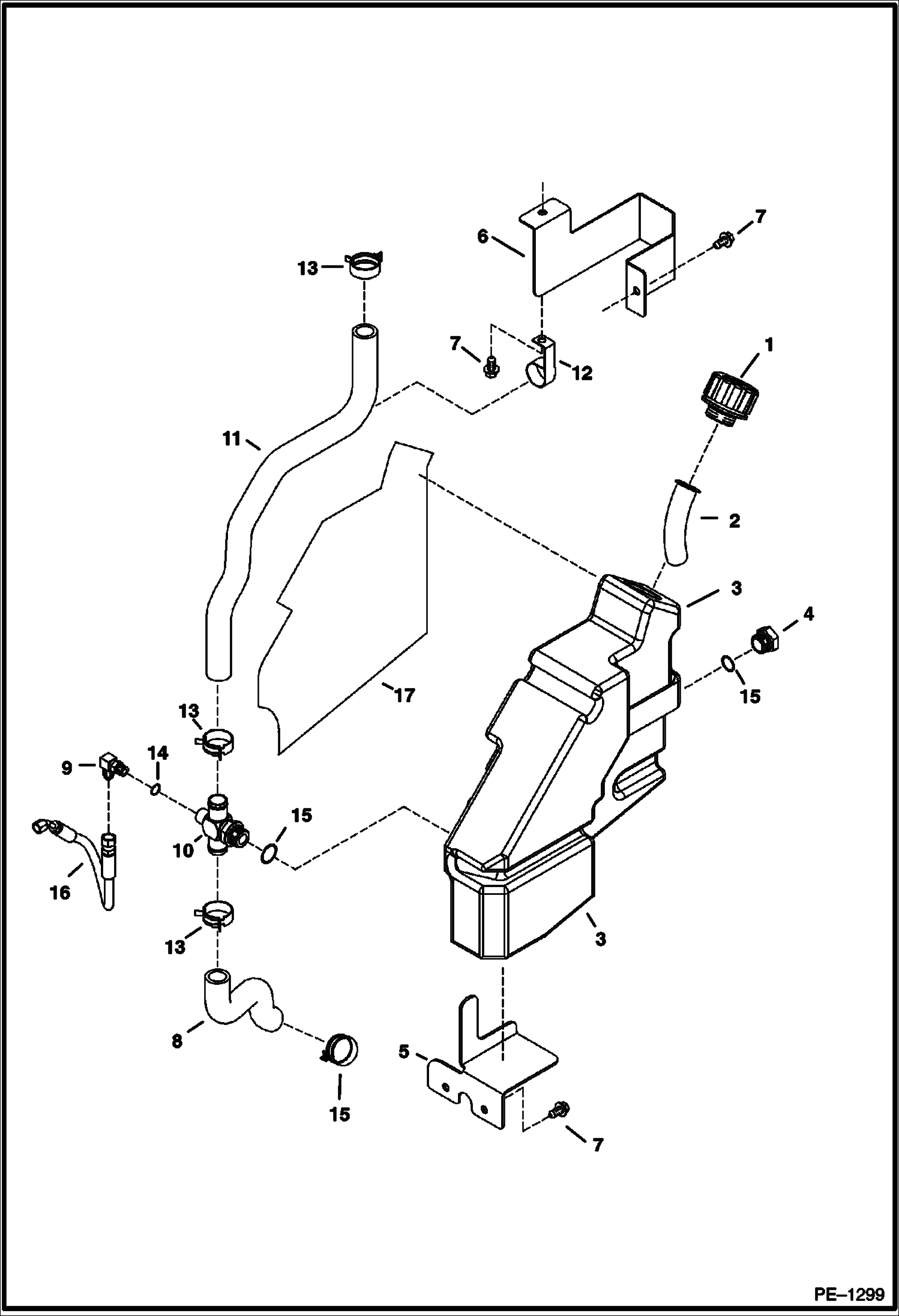

Запчасти Bobcat 322 HYDRAULIC CIRCUITRY (Hydraulic Reservoir) HYDRAULIC SYSTEM

1

6674690

CAP , HYD BREATHER

2

7134222

SCREEN fill - Was 6587168 - A

3

7174380

TANK, HYD Was 7105886 - A

4

6665915

GAUGE

5

6807121

SUPPORT

6

6807372

SUPPORT

7

26GM10020

BOLT

8

6806798

HOSE

8

6812157

HOSE

8

6810736

HOSE

9

ELBOW NLA - W/Ref. 14 - tapered boss face - Was 17KV00005B - B

9

17KB0406

FITTING, HYD ELBOW W/Ref. 14 - flat boss face - Was 17KB00606B - A

9

97K6

O RING flare end

10

6806993

TEE W/Ref. 15

11

6806799

HOSE

11

6810208

HOSE

12

30HJ624

CLAMP Was 30HJ-620 - B

13

5HM35

HOSECLAMP

14

99K6

O RING tapered boss face

14

79K6

O RING 10 flat boss face

15

79K12

O RING 10

16

7106586

HOSE Was 6807942 - A

17

6808113

INSULATION
