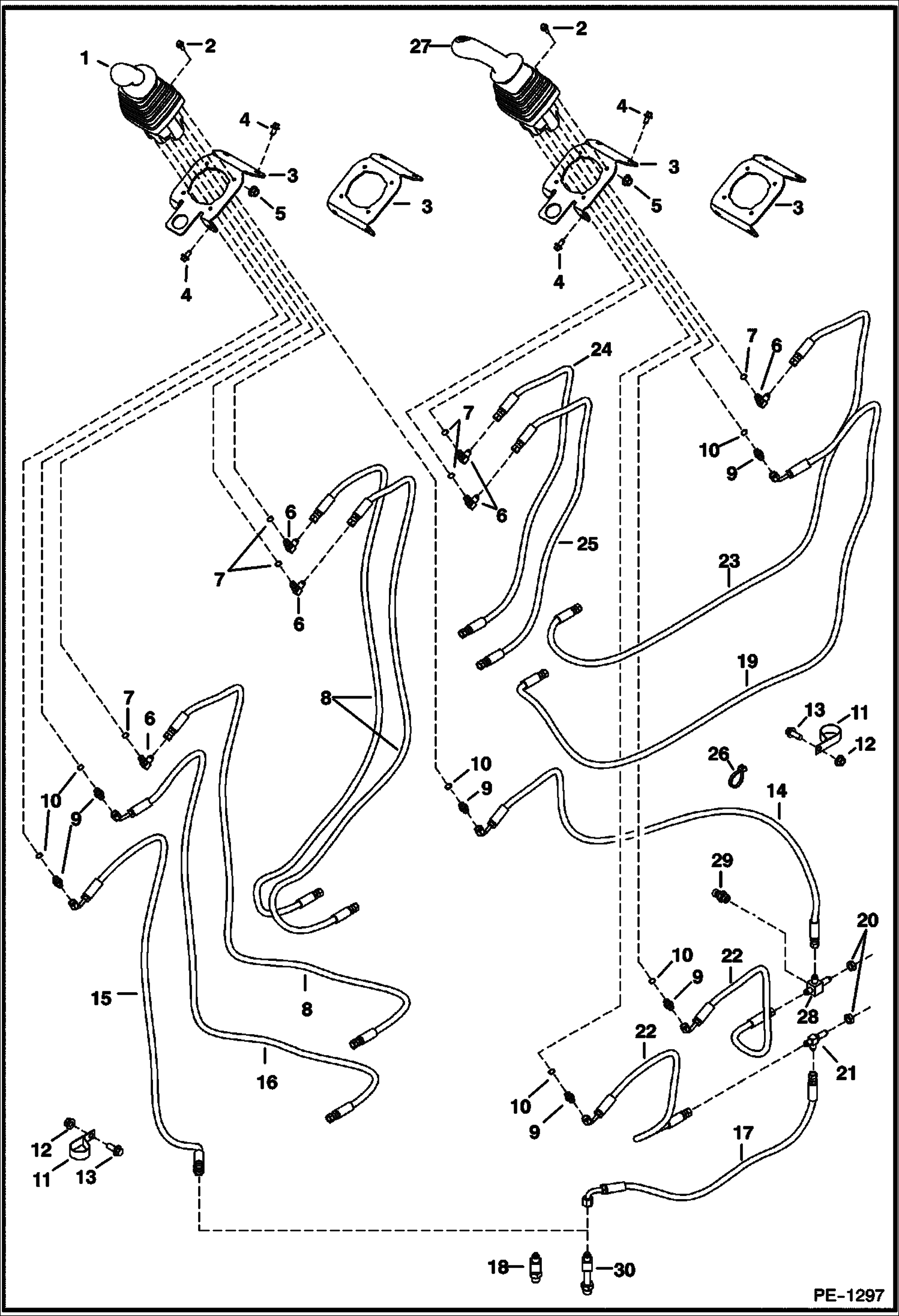

Запчасти Bobcat 322 HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6667722

JOYSTICK, RH See Illustration R.H. JOYSTICK CONTROLS/ B14601 - RH

1

6677893

JOYSTICK See Illustration R.H. JOYSTICK CONTROLS/ B14601 right

2

1CM625

BOLT

2

26GM6020

SCREW

3

6597302

MOUNT

3

6810924

MOUNT

4

26GM8016

SCREW

5

1DM6

NUT Was 4DM6 - A

6

ELBOW NLA - W/Ref. 7 - tapered boss face - Was 6715652 - B

6

17KB0406

FITTING, HYD ELBOW W/Ref. 7 - flat boss face

6

NLA - W/Ref. 7 - tapered boss face - Was 17KV00003B - B

6

17KB0404

FTG HYD ELBOW 90 W/Ref. 7 - flat boss face

6

97K4

O'RING flare end

7

99K4

O'RING tapered boss face

7

79K4

O RING 10 flat boss face

8

7106597

HOSE Was 6802066 - A

9

FTG HYD S CONNECTOR NLA - W/Ref. 10 - tapered boss face - Was 15KB406

9

15KB0406

FTG HYD S CONNECTOR W/Ref. 10 - flat boss face

9

CONNECTOR NLA - W/Ref. 7 - tapered boss face - Was 15KN00003B - B

9

15KB0404

FTG HYD S Connector W/Ref. 7 - flat boss face

9

97K4

O'RING flare end

10

99K6

O RING tapered boss face

10

79K6

O RING 10 flat boss face

11

30HJ624

CLAMP

12

43DM10

NUT

13

29CM1025

BOLT

14

7106599

HOSE Was 6806795 - A

15

7106587

HOSE Was 6711681 - A

16

7106594

HOSE Was 6597582 - A

17

7106588

HOSE Was 6807944 - A

18

TEE NLA - Was 14KN00005B - B

18

14K5

TEE

18

NLA - Was 13KN00005B - B

18

13K3

TEE Use W/NLA 16KB406 adapter - Order Ref 30 - Was 13K000005B - A

18

97K6

O RING

19

7106596

HOSE Was 6628665 - A

20

86F3

LOCKNUT

21

TEE NLA - Was 91KV00003B - B

21

91K3

TEE flare end

21

97K4

O'RING

22

7106600

HOSE Was 6807945 - A

23

7106598

HOSE Was 6806787 - A

24

7107648

HOSE Was 6809097 - A

25

7106595

HOSE Was 6597588 - A

26

6624289

STRAP, TIE

27

6667721

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14600 - LH

27

6677894

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14600 - left - W/horn

28

6814191

TEE

29

6630168

COUPLER diagnostic

30

7126024

TEE
