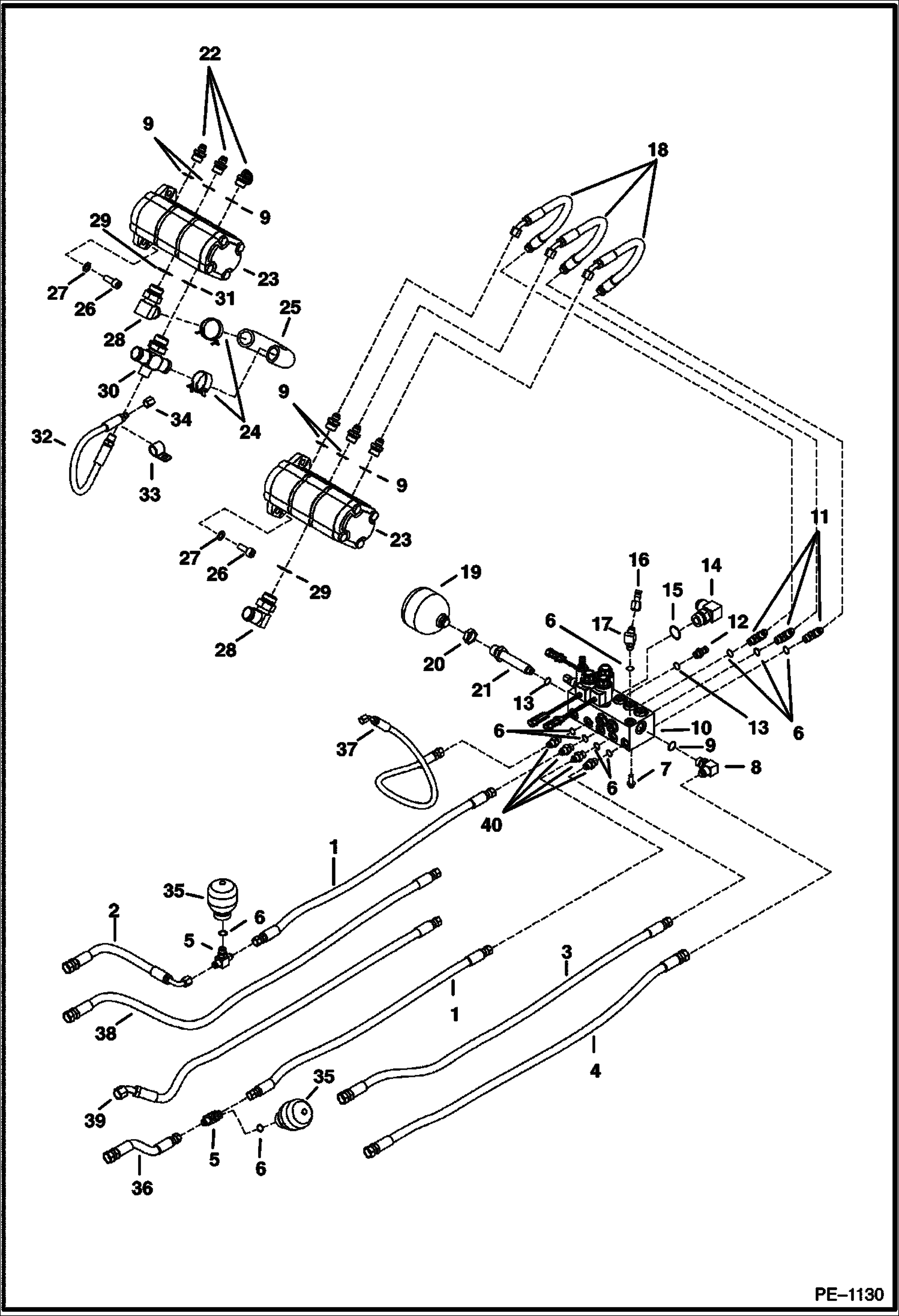

Запчасти Bobcat 322 HYDRAULIC CIRCUITRY (S/N 233812190 & Below, 233513851 & Below) HYDRAULIC SYSTEM

1

6809091

HOSE Was 6806775 - A

2

6809092

HOSE Was 6807941 - A

3

6806777

HOSE (2) 37 degree female swivel ends - 38.5'' (977.9 mm) long

4

6806778

HOSE

5

19KB0606

TEE W/Ref. 6 - Was 19KV00005B - A

5

97K6

O RING flare end

6

99K6

O RING boss end

7

29CM820

SCREW

8

17KB0808

FITTING, HYD ELBOW W/Ref. 9 - Was 17KN00006B - A

8

97K8

O-RING flare end

9

99K8

O-RING tapered boss face

9

79K8

O RING 10 flat boss face

10

See Illustration MANIFOLD ASSY/ MS1400 See Illustration MANIFOLD ASSY/ TS2045

11

17KB0606

FITTING W/Ref. 6 - Was 17KV00005B - A

11

97K6

O RING flare end

12

COUPLER diagnostic - W/Ref. 13

13

79K6

O RING 10 flat boss face

13

99K6

O RING tapered boss face

14

17KB1212

FITTING, HYD ELBOW W/Ref. 15 - Was 17KV00008B - A

14

97K12

O'RING flared end

15

99K12

O RING tapered boss face

16

6661753

PLUG diagnostic - W/Ref. 13

17

18KB0606

FITTING, HYD ELBOW W/Ref. 6 - Was 18KN00005B - A

17

97K6

O RING flare end

18

6806780

HOSE

19

6669537

ACCUMULATOR Was 6669357 - D

20

86F7

LOCK NUT

21

FITTING NLA - W/Ref. 13 - tapered boss face - Was 6807256 - A

21

6812814

FITTING W/Ref. 13 -flat boss face

22

CONNECTOR NLA - W/Ref. 9 - tapered boss face - Was 6715649 - A

22

15KB0608

FITTING, HYD CONNECTOR W/Ref. 9 - flat boss face

22

97K6

O RING flare end

23

GEAR PUMP See Illustration GEAR PUMP/ B14045

24

5HM35

HOSECLAMP

25

6806797

HOSE

26

6805750

SCREW Was 3GM01025B - B

27

15EM100

WASHER

28

6715718

ELBOW W/Ref. 29

29

99K12

O RING tapered boss face

30

6806993

TEE

31

79K12

O RING 10

32

6808873

HOSE

33

30H42

CLAMP

34

36K3

CAP

35

6676727

ACCUMULATOR

36

6809094

HOSE

37

6807943

HOSE

38

6809854

HOSE

39

6809855

HOSE

40

15KB0606

FITTING, HYD CONNECTOR W/Ref. 6
