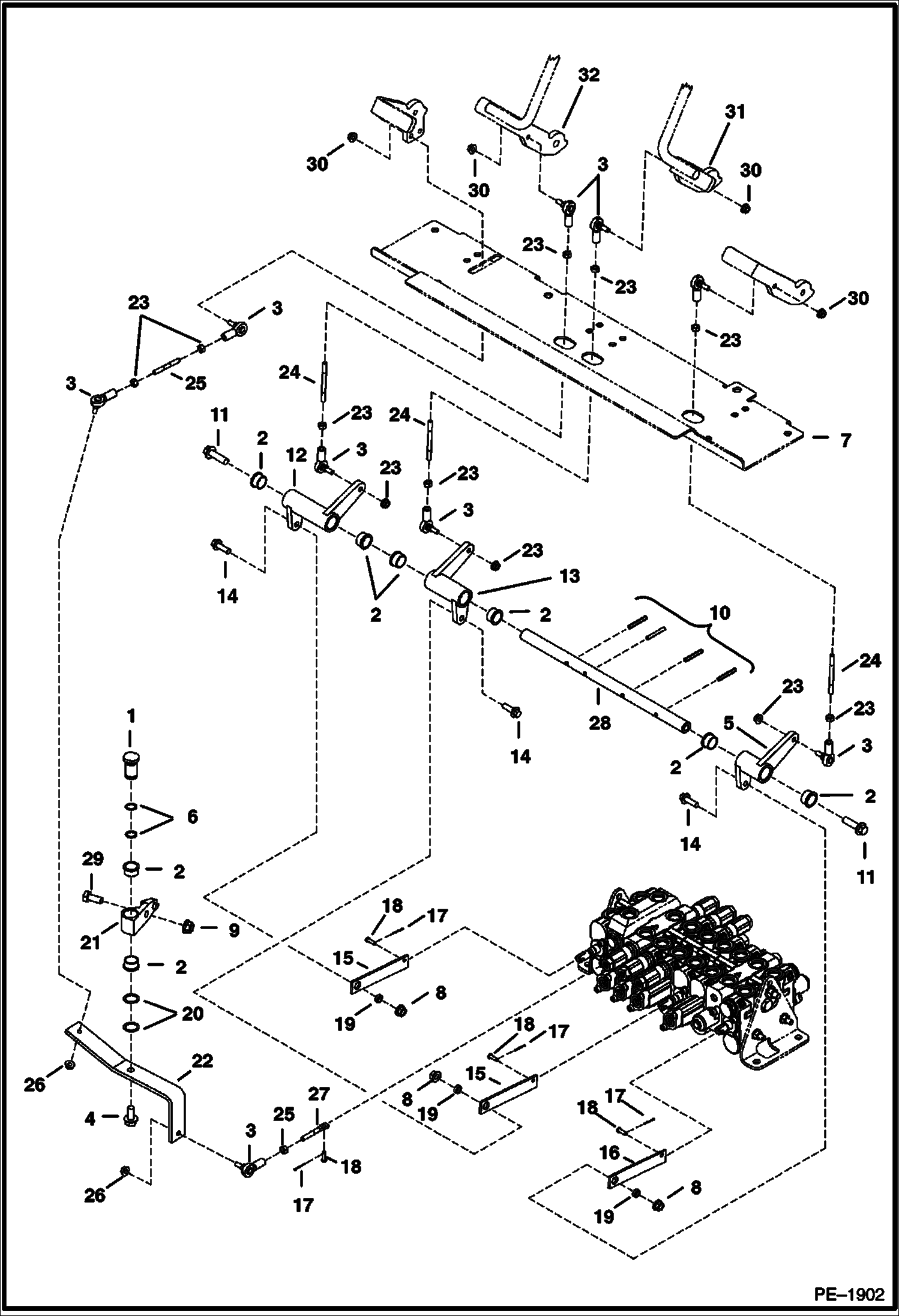

Запчасти Bobcat 322 CONTROLS CONTROLS

1

6808351

SLEEVE flanged

2

6536801

BUSHING

3

6631036

JOINT

4

29CM1025

BOLT

5

6807321

BELLCRANK

6

58K015

O-RING 10

7

7104149

PLATE Was 6809099 - A

8

51DM8

NUT

9

51DM10

NUT

10

14J2124

ROLLPIN

11

29CM1035

SCREW

12

7106822

BELLCRANK Was 6807325 - A

13

6807323

BELLCRANK

13

6810067

BELLCRANK

14

29CM825

BOLT

15

6807221

LINK

15

6810062

LINK

16

6807222

LINK

17

6801068

PIN

18

1F216

PIN cotter

19

6807220

SPACER

20

6536802

WASHER

21

6537481

MOUNT

22

6807224

LINK

22

6810064

LINK

23

62D4

NUT

24

6807228

ROD

25

6807229

ROD

26

98D4

NUT

27

6807223

ROD

28

7106198

SHAFT Was 6807225 - A

29

1CM1030

BOLT

30

47DM8

NUT

31

6810523

LEVER RH

32

6810524

LEVER LH
