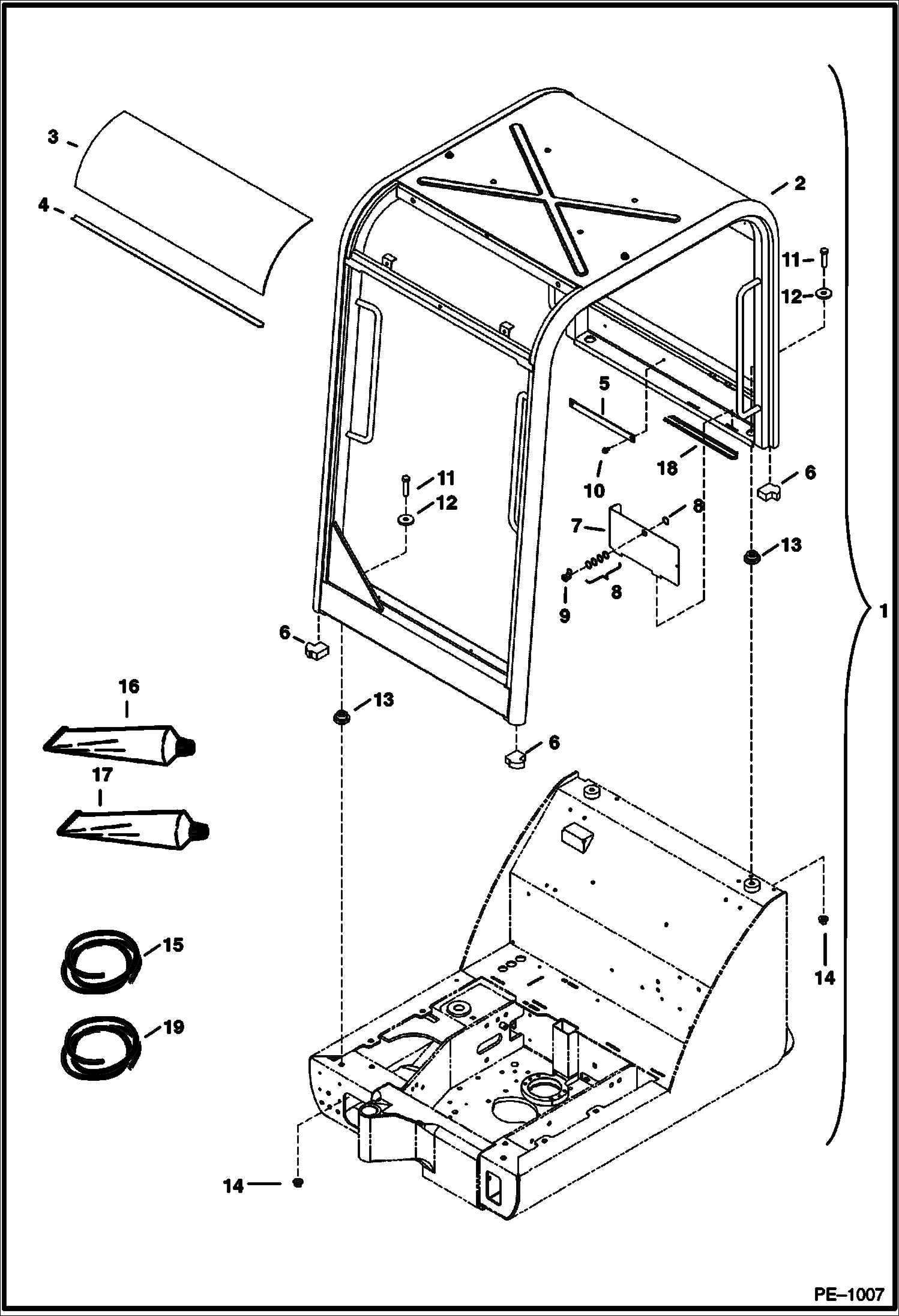

Запчасти Bobcat 322 OPERATOR CANOPY (S/N 223811001-223813210, 223511001-223516768) MAIN FRAME

1

CANOPY ASSY NLA - W/Ref. 2-14, and decals - order 6817851 - Was 6808864 - A

2

CANOPY NLA - welded assembly - order 6810595 - Was 6805906 - A

3

6805903

WINDOW, CAB CURVED

4

SEAL NLA - Use 36'' of Ref. 15

5

6589347

STRAP

6

6807987

INSULATION

7

6589656

PANEL

8

6536802

WASHER

9

6675723

LOCK assy - W/ (2) nuts , W/O keys

9

6675843

NUT

9

KEY NLA - includes two keys W/ring - Order 6693241 - Was 6709527 - A

9

6693241

KEY 10 ignition - single key W/O ring

10

26GM8016

SCREW Was 29CM00812B - B

11

10CM1455

BOLT Was 10CM01460B - B

12

6805244

WASHER

13

7001052

MOUNT, ENG Was 6804026 - A

14

43DM14

NUT

15

6670537

SEAL bulk - sold by the foot

16

6808882

ADHESIVE, URETHANE 10.5 fluid oz.

17

7102268

PRIMER Use W/Ref. 16 - Was 6808881 - A

18

INSULATION NLA - use 4'' of Ref. 9

19

6648416

SEAL BULK /FT bulk - sold per foot
