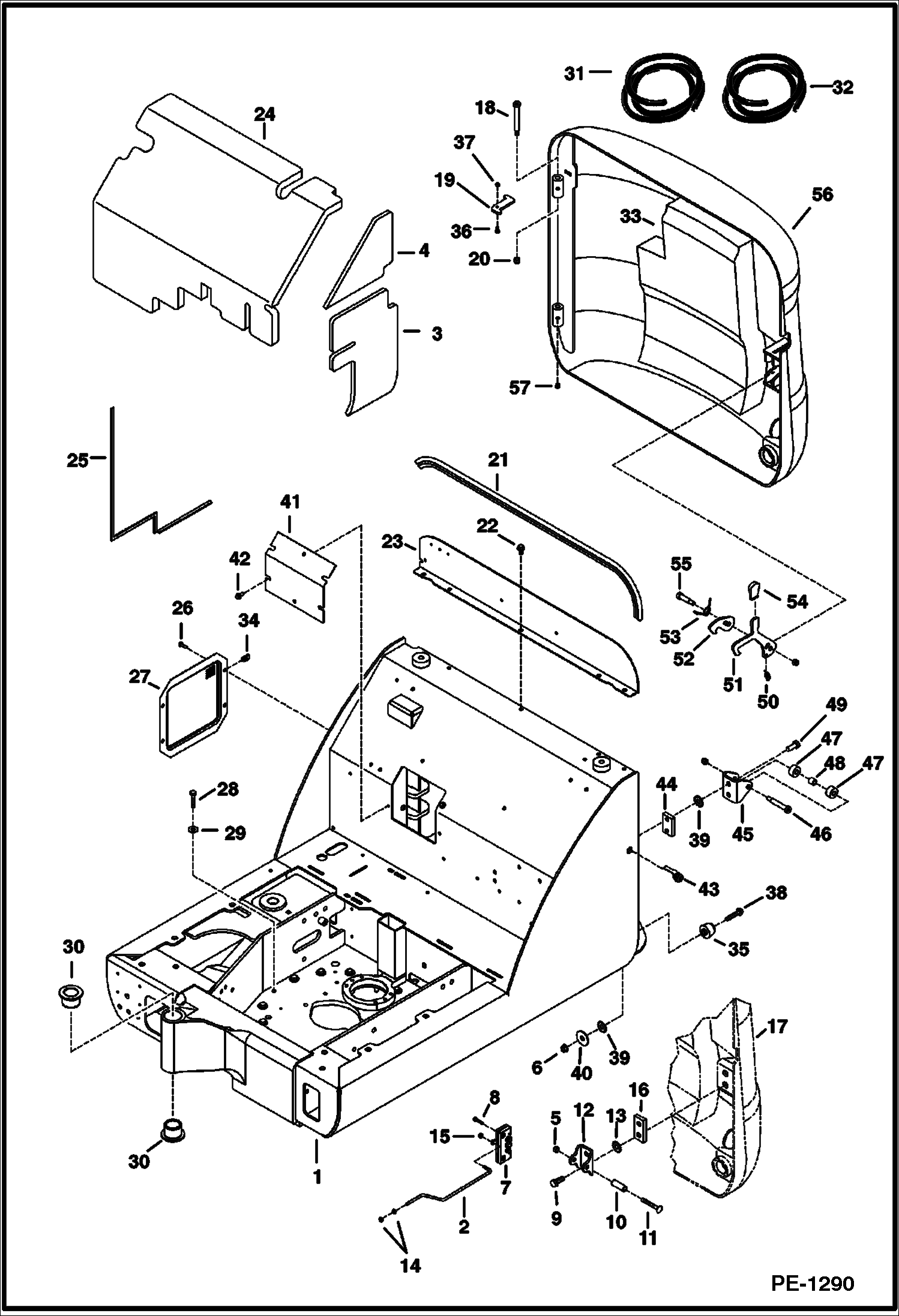

Запчасти Bobcat 322 UPPERSTRUCTURE & ENGINE COVERS MAIN FRAME

1

UPPERSTRUCTURE NLA - W/O access hole - order 6810127 & Ref. 22, 41 (2) & 42 - 57 - Was 6805782 - A

1

UPPERSTRUCTURE NLA - w/access hole-order 6810127 & Ref. 41 - 57

1

6810127

UPPERSTRUCTURE

1

6808306

HINGE PLATE weld-on rear door

2

6807039

ROD latch

3

6807607

INSULATION

4

6807606

INSULATION

5

95D6

NUT Was 61D6 - B

6

51DM10

NUT Was 6512274 - B

7

6675687

LATCH

8

1CM630

BOLT Was 1CM00625B - B

9

17C820

BOLT

10

6719550

TUBE striker

11

37C644

BOLT

12

6719524

STRIKER

13

6675273

WASHER lock

14

7D4

NUT

15

85D4

NUT 5 Was 6808027 - A

16

6719525

BAR striker

17

TAILGATE See BTIE-071 - NLA - Was 6806282 - A

18

6809845

BOLT Was 38C856 - A

19

6808706

STOP tailgate - Was 6714126 - A

20

59D6

NUT

21

SEAL NLA - 39'' of Ref. 31

22

26GM10020

BOLT

23

6806387

CROSSMEMBER

23

7122446

CROSSMEMBER Was 6810633 - A

24

CROSSMEMBER NLA - 8 in. of Ref. 32 - Was 6810633 - A

25

6807605

INSULATION

25

6810320

INSULATION

26

6808033

SCREW

27

7198866

SCREEN Was 6807519 - A

28

56CM1045

SCREW Was 10CM01045B - B

29

27E6

WASHER 5

30

6539897

BUSHING

31

6675732

SEAL Bulk - Order by the foot - Was 6676395 - D

32

6648416

SEAL BULK /FT Bulk - Order by the foot

33

6808117

INSULATION Tailgate

34

6676026

NUT

35

6808365

BUMPER

36

1CM612

BOLT

37

1DM6

NUT Was 4DM6 - A

38

29CM1050

BOLT

39

6560899

WASHER

40

6675273

WASHER

41

6810152

COVER

42

26GM8020

SCREW

43

6678025

LOCK W/O key - Ignition key 6693241

44

6810802

BAR

45

6809727

CHANNEL

46

38C840

BOLT

47

6809726

ROLLER

48

17C820

BOLT

49

6809734

BUSHING

50

6810141

SPRING

51

HANDLE - NLA - order 6811909 & 6811910

51

6811909

HANDLE see upperstructure for lock

52

LATCH - NLA - order 6811910 & 681909

52

6733667

LATCH, REAR DOOR Was 6811910 - A

53

6810132

SPRING

54

6564452

GRIP lever

55

38C824

SCREW

56

6810131

TAILGATE

57

10H25

FITTING, GREASE 5
