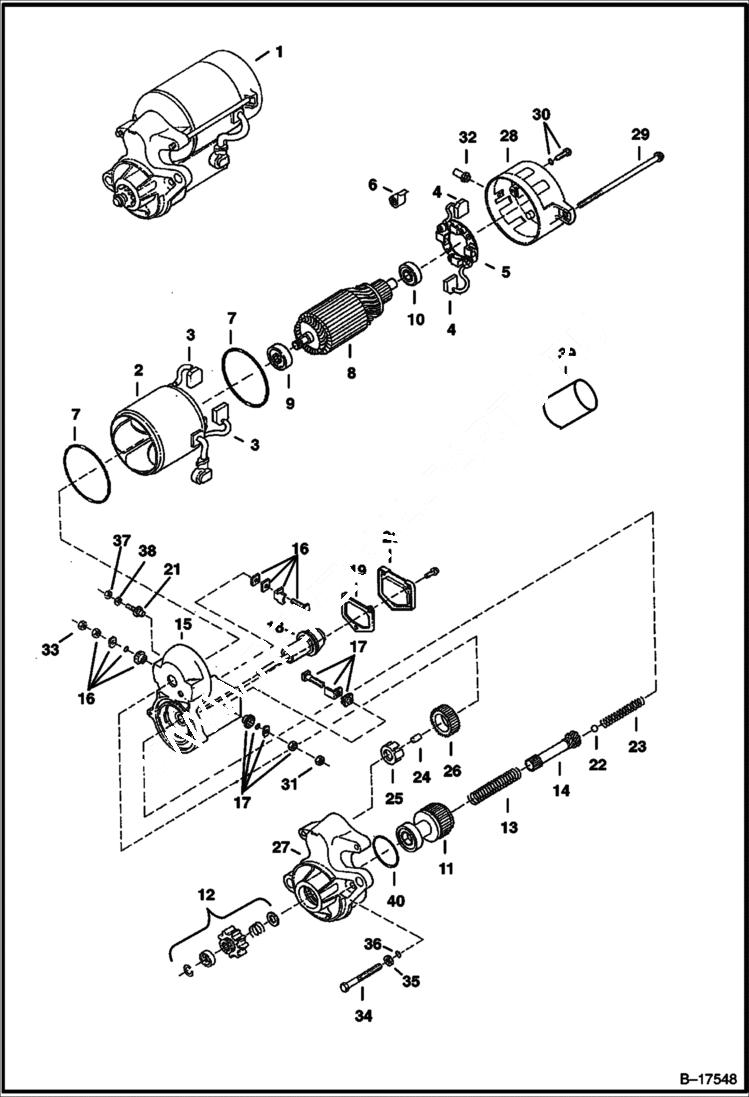

Запчасти Bobcat 322 STARTER (1.4 KW - Nippondenso) (228000-6650) ELECTRICAL SYSTEM

1

6669633

STARTER

1

6669633REM

STARTER

2

6671977

YOKE W/Ref. 3

3

6671978

BRUSH KIT

4

6671979

BRUSH KIT

5

6671980

HOLDER W/Ref. 4 & 6

6

6671981

SPRING

7

6671982

O-RING

8

6671983

ARMATURE W/Ref. 9 & 10

9

6671985

BEARING

10

6671987

BEARING

11

6671988

CLUTCH

12

6672172

KIT Assy.

13

6671991

SPRING

14

SHAFT NSS - Was 6671992 - A

15

6672173

HOUSING

16

6672174

TERMINAL KIT

17

6672175

TERMINAL KIT

18

6671994

PLUNGER

19

6671995

GASKET

20

6671996

COVER

21

6671997

BOLT

22

6632435

BALL

23

6671998

SPRING

24

6671999

ROLLER

25

6672000

RETAINER

26

6672176

PINION

27

6672002

HOUSING

28

6672177

FRAME

29

6672004

BOLT

30

6672005

SCREW W/O-rings

31

6672006

NUT

32

6672007

BUSHING

33

6672008

NUT

34

6672009

BOLT

35

6672010

WASHER

36

6666631

WASHER

37

6672011

NUT

38

6672012

WASHER

39

6672178

COVER

40

6672013

O-RING
