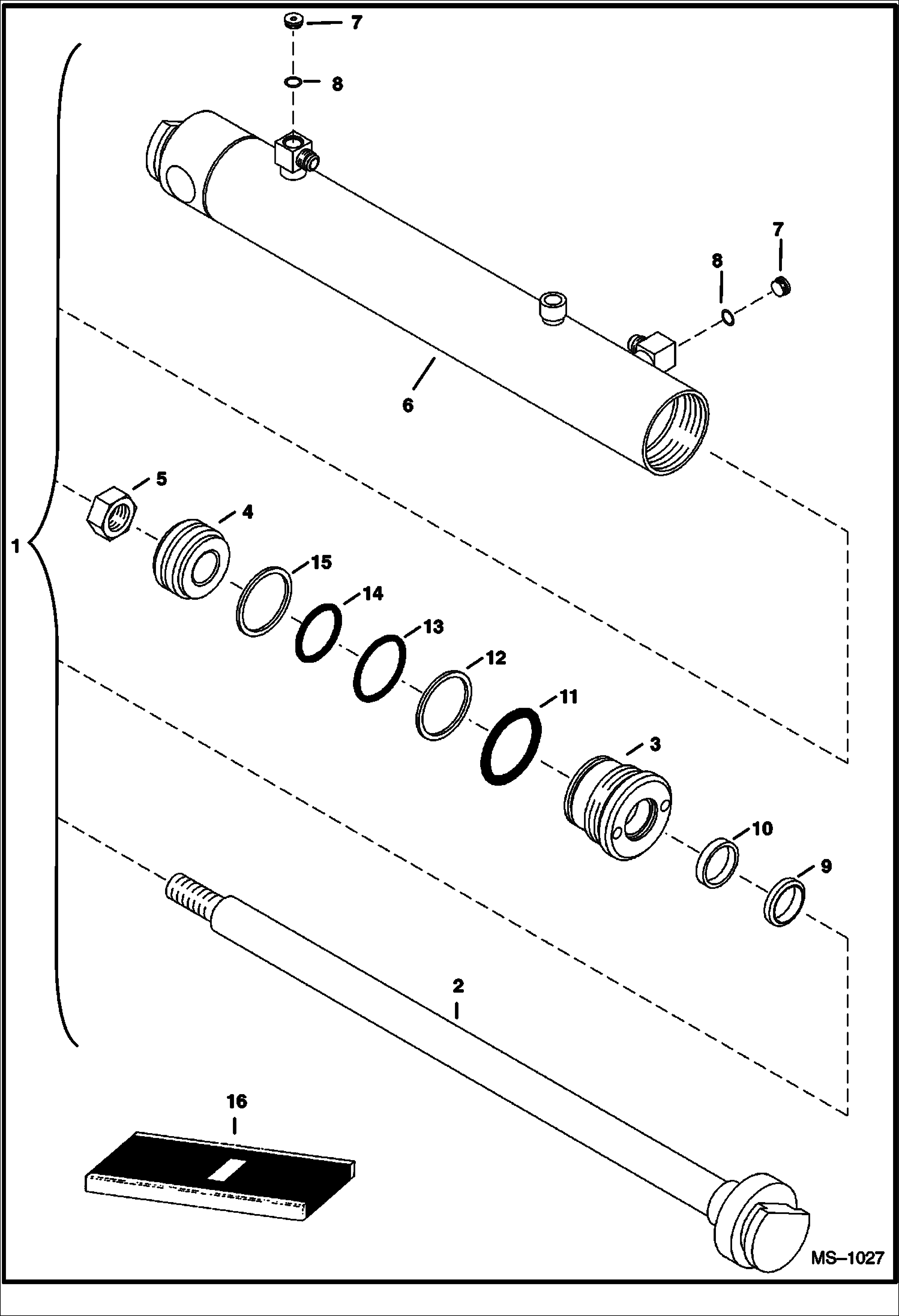

Запчасти Bobcat 322 TRACK EXPANSION CYLINDER (S/N 517811001 & Above) HYDRAULIC SYSTEM

1

6810471

CYLINDER Track Expansion - W/Ref. 2 - 15 -Was 6805078 - A

2

6810472

ROD Was 6805245 - A

3

6538595

HEAD, CYL HYD

4

6586693

PISTON Was 6810684 - A

5

92D10

NUT

6

6805681

HOUSING

7

90KV2

PLUG W/Ref. 8

8

95K3

O'RING

9

6666542

SEAL, WIPER ROD

10

6704243

SEAL

11

82K136

O-RING Was 58K136 - B

12

73K224

RING Back-up

13

25K40124

O RING 10

14

54K30118

O-RING

15

6516231

SEAL

16

7137772

SEAL KIT Includes Refs. 5 & 9-15 - Was 6589818 - A
